Documentation & Downloads

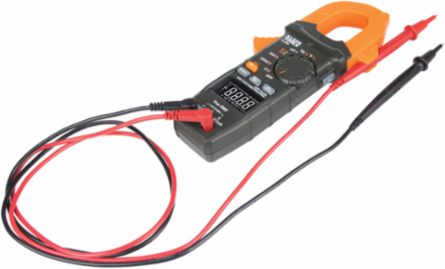

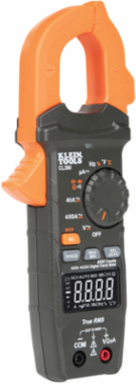

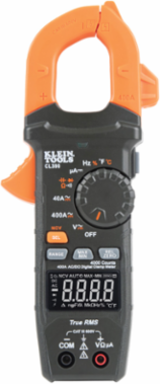

Klein Tools CL390 AC/DC Digital Clamp Meter 400 Amp, True RMS, 600V AC/DC, 1.6 Inch Jaw Size
- MPN: CL390
- UPC: 092644692871
- PPN: KLT-CL390
- UNSPSC: 41113654
CAD
$131.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.
Features
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Non-contact voltage tester integrated into the clamp jaw
- High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
- Measures temperature with a K-Type thermocouple probe
- Max/Min, Rel/Zero and Data Hold capability
- Auto-power off after 10 minutes to conserve battery life

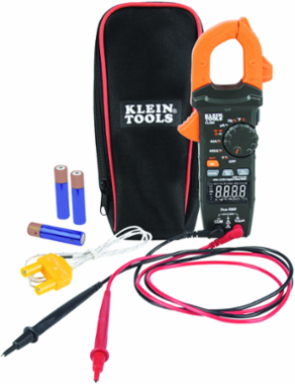

- Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2 m) drop
- CAT III 600V, Class 2, Double insulation safety rating
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
- Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Documentation & Downloads
Specifications
Key Specifications
- DC Polarity Indicator
- Yes
- Voltage
- 600 V AC/DC
- DC Voltage
- 600 V
- Drop Protection
- 6.6' (2 m)
- Batteries
- 3 x AAA
- Standard
- CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
- Material
- ABS/Electronics
- AC Voltage
- 600 V
- Included
- Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
- Ohms
- 40 MΩ Resistance
- Overall Height
- 3.8 cm (1.5 Inch)
- Overall Length
- 21.5 cm (8.45 Inch)
- Height
- 1.5060 in
- Depth
- 8.4500 in
Display4000 Count Reverse Contrast LCD
DC Micro-Amp200 µA
Current400 A AC/DC
Capacitance4000 µF
ApplicationMeasures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple
FunctionsTRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
Frequency10 Hz to 60 kHz for 8 V to 220 V AC RMS
Temperature Range-40° - 1832°F (-40° - 1000°C)
TypeAC/DC Current TRMS Clamp
Auto-Power OffYes
Overall Width3.5 Inch (8.9 cm)
Jaw Size4.1 cm (1.6 Inch)
Width3.5120 in
Weight0.5160 lbs
