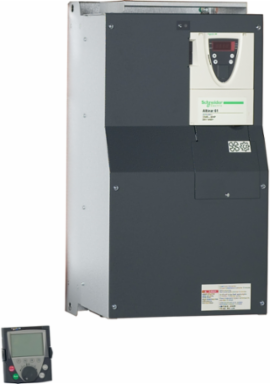

Schneider Electric ATV61HD37Y variable speed drive ATV61 - 37kW / 690V - 40HP / 575V - IP20
Schneider Electric ATV61HD37Y variable speed drive ATV61 - 37kW / 690V - 40HP / 575V - IP20
- MPN: ATV61HD37Y
- UPC: 785901524724
- PPN: SCH-ATV61HD37Y
- UNSPSC: 39122003
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
Description
variable speed drive ATV61 - 37kW / 690V - 40HP / 575V - IP20
Specifications
Communications & Management Attributes
- Communication Port Protocol
- CANopen, Modbus
Conformance Attributes
- Product Certifications
- NOM 117, GOST, C-tick, DNV, UL, CSA
StandardsEN 55011 class A group 2, IEC 61800-3 environments 1 category C3, IEC 61800-3 environments 2 category C3, IEC 60721-3-3 class 3C2, IEC 61800-5-1, UL Type 1, IEC 61800-3
Complementary Attributes
- Maximum Switching Current
- R1, R2 5 A 30 V DC resistive, cos phi = 1 0 ms, R1, R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms, R1, R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms, R1, R2 5 A 250 V AC resistive, cos phi = 1 0 ms
- Maximum Transient Current
- 56.4 A 60 s, 3 phase
Maximum Horse Power Rating40 hp, 3 phase 575 V
Minimum Switching Current3 mA 24 V DC configurable relay logic
Important Information Attributes
- Asynchronous Motor Control Profile
- voltage/frequency ratio, 2 points, voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f
- Connector Type
- 1 RJ45 on front face)Modbus, 1 RJ45 on terminal)Modbus, male SUB-D 9 on RJ45CANopen
- Dielectric Strength
- 3110 V DC between earth and power terminals, 5345 V DC between control and power terminals
- Electromagnetic Compatibility
- conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
- Insulation Resistance
- > 1 mOhm 500 V DC for 1 minute to earth, > 1 mOhm 500 V DC for 1 minute to earth, > 1 mOhm 500 V DC for 1 minute to earth, > 1 mOhm 500 V DC for 1 minute to earth
- Linearity Error
- +/- 0.15 % of maximum value AI1-/Al1+), +/- 0.15 % of maximum value AI1-/Al1+), +/- 0.15 % of maximum value AI2), +/- 0.15 % of maximum value AI2), +/- 0.2 % AO1), +/- 0.2 % AO1), +/- 0.15 % of maximum value AI1-/Al1+), +/- 0.15 % of maximum value AI1-/Al1+), +/- 0.15 % of maximum value AI2), +/- 0.2 % AO1), +/- 0.2 % AO1)
- Motor Slip Compensation
- not available in voltage/frequency ratio (2 or 5 points), can be suppressed, automatic whatever the load, adjustable
- Option Card
- communication card APOGEE FLN, communication card BACnet, communication card CC-Link, controller inside programmable card, communication card DeviceNet, communication card EtherNet/IP, communication card Fipio, I/O extension card, communication card Interbus-S, communication card LonWorks, communication card METASYS N2, communication card Modbus Plus, communication card Modbus TCP, communication card Modbus/Uni-Telway, multi-pump card, communication card Profibus DP, communication card Profibus DP V1
- Protection Type
- power removal motor, thermal protection motor, against exceeding limit speed drive, against input phase loss drive, break on the control circuit drive, input phase breaks drive, line supply overvoltage drive, line supply undervoltage drive, overcurrent between output phases and earth drive, overheating protection drive, overvoltages on the DC bus drive, power removal drive, short-circuit between motor phases drive, thermal protection drive, motor phase break motor
- Sampling Duration
- 2 ms +/- 0.5 ms AI1-/Al1+) - analog input, 2 ms +/- 0.5 ms Al2) - analog input, 2 ms +/- 0.5 ms AO1) - analog output, 2 ms +/- 0.5 ms LI1...LI5) - discrete input, 2 ms +/- 0.5 ms LI6)if configured as logic input - discrete input
- Supply
- internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC, +/- 5 %, <10 mA overload and short-circuit protection, internal supply 24 V DC 21-27 V), <200 mA overload and short-circuit protection, external supply 24 V DC 19-30 V)
- Tightening Torque
- 0.6 N.m AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR), 41 N.m, 360 lb.in L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB)
- Transmission Rate
- 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus on terminal, 9600 bps, 19200 bps Modbus on front face, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen
- Vibration Resistance
- 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
- Local Publishable Date
- 2025-11-13
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Service Catalog Item
- Finished good
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI100216EN
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Product Contributes To Saved And Avoided Emissions
- No
- Assembly Style
- with heat sink
- Component Name
- ATV61
- Isolation
- between power and control terminals
- Marking
- CE
- Network Frequency
- 47.5...63 Hz
- Nominal Switching Frequency
- 2.5 kHz
- Package Weight Lbs
- 60.5 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Specific Application
- pumping and ventilation machine
- Range Of Product
- Altivar 61
- Returnability
- No
- Speed Range
- 1-100 in open-loop mode, without speed feedback
- Supply Voltage Limits
- 425-759 V
- Synchronous Motor Control Profile
- vector control without sensor, standard
- Transmission Frame
- RTU Modbus
- Us Rated Supply Voltage2
- 500...690 V - 15...10 %
- Stocking Flag
- Y
- Pep Code
- ENVPEP060409EN
- Us Rated Supply Voltage5
- 500...690 V - 15...10 %
Braking Torque<= 125 % with braking resistor, <= 125 % with braking resistor, <= 125 % with braking resistor, <= 125 % with braking resistor, 30 % without braking resistor
Data Format8 bits, 1 stop, even parity Modbus on front face, 8 bits, odd even or no configurable parity Modbus on terminal
Electrical Connectionterminal 2.5 mm² / AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR), terminal 150 mm² / 300 kcmil L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB)
Frequency Resolutionanalog input 0.024/50 Hz, display unit 0.1 Hz
Line Current41 A 600 V 3 phase 30 kW / 40 hp, 47 A 690 V 3 phase 30 kW / 40 hp, 48 A 500 V 3 phase 30 kW / 40 hp
Motor Power KW30 kW, 3 phase 500 V, 37 kW, 3 phase 690 V
Number Of Addresses1-127 CANopen, 1-247 Modbus
Product Destinationasynchronous motors, synchronous motors
Response Time<= 100 ms in STO (Safe Torque Off), <= 100 ms in STO (Safe Torque Off), R1A, R1B, R1C <= 7 ms +/- 0.5 ms, R2A, R2B <= 7 ms +/- 0.5 ms
Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback, +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback, +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback, +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback, +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback, +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback
Switching Frequency2.5...4.9 kHz adjustable, 2.5...4.9 kHz with derating factor
Torque Accuracy+/- 15 % in open-loop mode, without speed feedback, +/- 15 % in open-loop mode, without speed feedback, +/- 15 % in open-loop mode, without speed feedback, +/- 15 % in open-loop mode, without speed feedback
Type Of Cablewith an IP21 or an IP31 kit 3 IEC cable 40 °C, copper 70 °C / PVC, with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC, without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC, without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR
Local Data StatusPublishable
Device TypeVariable speed drive - VSD Compacts
TraceabilityYes
Average Life Duration10 year(s)
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Return IndicatorN
Braking To Standstillby DC injection
EMC FilterLevel 3 EMC filter
Local Signalling1 LED (red) for drive voltage
Method Of Accessslave CANopen
Noise Level63.7 dB 86/188/EEC
Operating Positionvertical +/- 10 degree
Phase3 phase
Product Or Component Typevariable speed drive
Prospective Line Isc22 kA 3 phase
Regulation Loopfrequency PI regulator
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Frequency50...60 Hz - 5...5 %
Sustainable PackagingNo
Transient Overtorque130-130 % of nominal motor torque +/- 10 % 60 s
Type Of Polarizationno impedance Modbus
Medium Descvariable speed drive ATV61 - 37kW / 690V - 40HP / 575V - IP20
Product Kit IdentifierN
Global Commercial StatusPost commercialisation
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C (without derating), -10-50 °C (without derating), -10-50 °C (without derating), -10-50 °C (without derating), 50-60 °C (with derating factor)
- IP Degree Of Protection
- IP21 IEC 61800-5-1, IP41 on upper part IEC 61800-5-1, IP54 on lower part IEC 61800-5-1, IP20 on upper part without blanking plate on cover IEC 60529, IP20 on upper part without blanking plate on cover IEC 61800-5-1, IP21 IEC 60529, IP41 on upper part IEC 60529, IP54 on lower part IEC 60529
- Relative Humidity
- 5-95 % without condensation IEC 60068-2-3, 5-95 % without dripping water IEC 60068-2-3
- China ROHS Regulation
- X
- Ambient Air Temperature For Storage
- -25-70 °C
- Environmental Disclosure
- ENVPEP060409EN
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 3280.84...7414.7 ft (1000...2260 m) with current derating 1 % per 100 m
ROHS Exemption InformationYes
Mercury FreeYes
Circularity ProfileENVEOLI100216EN
Pep CodeENVPEP060409EN
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar 61
Product Or Component Typevariable speed drive
Output Attributes
- Analogue Output Type
- AO1 software-configurable current 0...20 mA 500 Ohm 10 bits, AO1 software-configurable voltage 0...10 V DC 470 Ohm 10 bits, AO1 software-configurable logic output 10 V, 20-20 mA
- Discrete Output Type
- configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles, configurable relay logic R2A, R2B) NO - 100000 cycles
- Discrete Output Number
- 2
- Output Voltage
- <= power supply voltage
Continuous Output Current41 A 2.5 kHz, 575 V - 3 phase, 43 A 2.5 kHz, 690 V - 3 phase, 47 A 2.5 kHz, 500 V - 3 phase
Analogue Output Number1
Output Frequency0.1-500 Hz
Surge Protection And Filtering Attributes
- EMC Filter
- Level 3 EMC filter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- AI1-/Al1+ bipolar differential voltage +/- 10 V DC 24 V max 11 bits + sign, AI2 software-configurable current 0...20 mA 242 Ohm 11 bits, AI2 software-configurable voltage 0...10 V DC 24 V max 30000 Ohm 11 bits
- Discrete Input Type
- programmable LI1...LI5) 24 V DC <= 30 V)level 1 PLC - 3500 Ohm, switch-configurable LI6) 24 V DC <= 30 V)level 1 PLC - 3500 Ohm, switch-configurable PTC probe LI6)0-6 - 1500 Ohm, safety input PWR) 24 V DC <= 30 V) - 1500 Ohm
- Discrete Input Number
- 7
Discrete Input Logicpositive logic (source) LI6)if configured as logic input, < 5 V, > 11 V, negative logic (sink) LI1...LI5), > 16 V, < 10 V, positive logic (source) LI1...LI5), < 5 V, > 11 V, negative logic (sink) LI6)if configured as logic input, > 16 V, < 10 V
Analogue Input Number2
Specifications
- Depth
- 290 mm
