Schneider Electric ATV320U07M2C Variable Speed Drive, 0.75kW, 200-240V, Compact Design

  • MPN: ATV320U07M2C
  • PPN: SCH-ATV320U07M2C
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $512.63

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

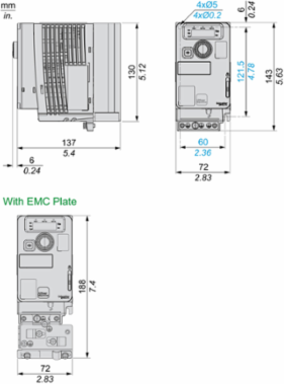

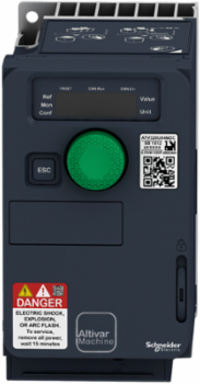

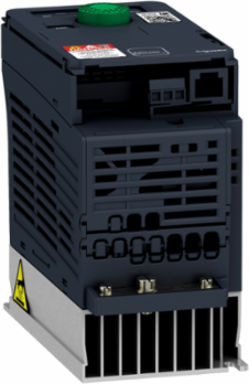

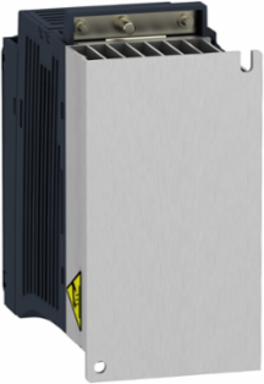

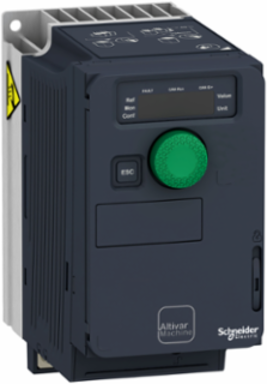

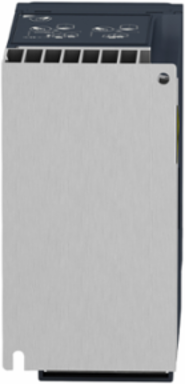

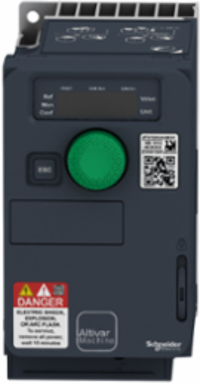

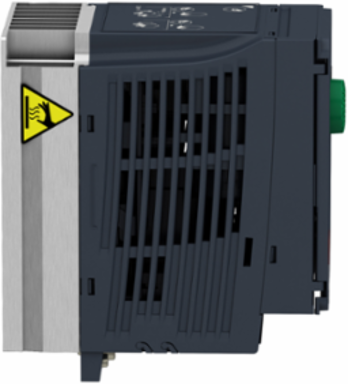

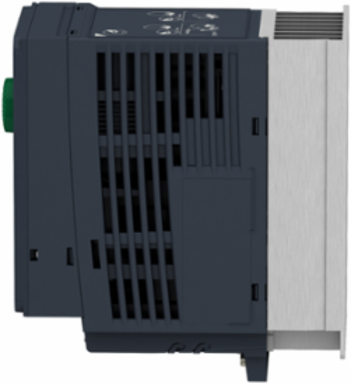

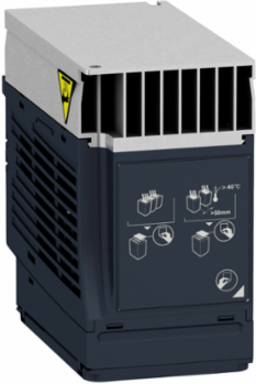

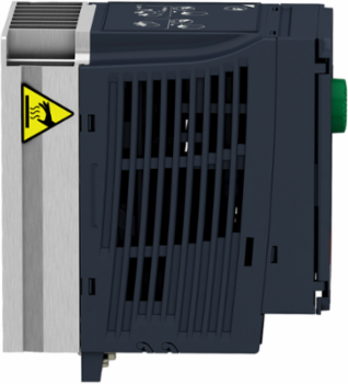

    Variable Speed Drive, 0.75kW, 200-240V, Compact Design

    Features

    • Featuring a highly engineered compact book-style silhouette measuring just 72mm wide, 143mm high, and 138mm deep, this VFD is built to maximize precious DIN rail or backpanel real estate. Its unique thermal design allows for zero-clearance side-by-side vertical stacking inside your control cabinet without requiring any output current derating, effectively reducing the overall footprint of multi-axis machine layouts
    • Built-in Safe Torque Off (STO) and Safe Stop 1 (SS1) functional safety systems come standard, providing instant, reliable protection that complies directly with the European Machinery Directive 2006/42/EC. By executing functional safety locally at the drive level, you completely eliminate the need for expensive external safety isolation relays, simplifying your control loops and lowering total bill-of-materials costs.
    • Altivar Machine ATV320 series comes ready to integrate out of the box with embedded Modbus Serial and CANopen protocols via its native communication ports. If your architecture relies on distinct fieldbuses, the modular design accepts plug-and-play option cards for industrial Ethernet ecosystems including EtherNet/IP, Modbus TCP, Profinet, EtherCAT, and DeviceNet, ensuring flawless synchronization with any master PLC platform.
    • Designed to survive volatile production floors, the electronic circuit boards are defensively coated in compliance with IEC 60721-3-3 Class 3C3 and 3S2 environmental standards. This provides high-level immunity to ambient chemical corrosion, airborne dust, and conductive moisture, allowing the IP20 chassis to operate reliably in ambient temperatures up to 50 C without breaking a sweat, and up to 60 C with derating factors.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, Latvia, Singapore, United States
    Depth138.0 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus serial, CANopen

    Complementary Attributes

    Maximum Switching Current
    relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC, relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
    Maximum Associated Fuse Rating
    20 A
    Maximum Input Current Per Phase
    10.1 A
    Maximum Output Voltage
    240 V
    Brake Chopper Integratedtrue
    Maximum Horse Power Rating1 hp
    Maximum Output Frequency0.599 kHz
    Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

    Important Information Attributes

    Product Contributes To Saved And Avoided Emissions
    YES_SSI2, Yes
    Persona Type Names
    End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Electromagnetic Compatibility
    electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
    Linearity Error
    AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
    Motor Slip Compensation
    automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
    Protection Type
    input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
    Sampling Duration
    2 ms AI1, AI2, AI3) - analog input, 2 ms AQ1) - analog output
    Switching Frequency
    2...16 kHz adjustable, 4...16 kHz with derating factor
    [Us] Rated Supply Voltage
    200...240 V, 200...240 V - 15...10 %
    Environmental Class (During Storage)
    class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
    Carbon Footprint Of The Distribution Phase [A4]
    0.2539975681023813, 0.3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.8 kg CO2 eq., 0.7610535244711221
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    667 kg CO2 eq., 666.5429891429001
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Device Type
    Variable speed drive - VSD Compacts
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1601008EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1714
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    4 Quadrant Operation Possible
    true
    Application In Domestic And Commercial Area Permitted
    false
    Braking To Standstill
    by DC injection
    Computer Port
    true
    Emc Filter
    Class C2 EMC filter integrated
    Format Of The Drive
    compact
    Maximum Associated Fuse Rating
    20 A
    Method Of Access
    slave CANopen
    Mounting Mode
    wall mount
    Network Number Of Phases
    single phase
    Number Of Hw Interfaces Industrial Ethernet
    0.0
    Number Of Hw Interfaces Parallel
    0.0
    Number Of Hw Interfaces Serial Rs23
    0.0
    Number Of Hw Interfaces Serial Rs485
    1.0
    Number Of Hw Interfaces Usb
    0.0
    Operating Element Present
    true
    Optical Interface Present
    false
    Phase
    single phase
    Power Loss Per Device Current Dependent
    45.0 W
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Specific Application
    complex machines
    Range Of Product
    Altivar Machine ATV320
    Relative Symmetric Mains Voltage Tolerance
    10 %
    Returnability
    Yes
    Supporting Protocol For Asi
    false
    Supporting Protocol For Can
    true
    Supporting Protocol For Devicenet Safety
    false
    Supporting Protocol For Interbus
    false
    Supporting Protocol For Lon
    false
    Supporting Protocol For Other Bus Systems
    true
    Supporting Protocol For Profinet Cba
    false
    Supporting Protocol For Profisafe
    false
    Supporting Protocol For Sercos
    false
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    701 kg CO2 eq.
    Updatability
    Upgradeable through digital modules
    With Safety Function Safe Programmable Logic
    false
    Motor Power Kw 10 N Motor Power Kw
    0.75 kW
    Database Version
    2024-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    To adapt the speed and torque of synchronous, asynchronous motor to the machine's operating point for 0,75 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 200V to 240V rated 1-phase voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium high phase, 40% uptime in medium low phase and 10% uptime in low phase of the 5000h operating time and 1000h of standby according to the CEMEP guide: general machine.
    Functional-unit Unit
    unit
    Energy Consumption On Product Lifetime, In Kwh
    1649.05
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    Height Nominal
    143.0 mm
    Emc Limit Value (Complied)
    true
    Maximum Acceleration Under Shock Load (During Storage)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)
    10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)
    3.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)
    class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)
    class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highway
    false
    Supporting Protocol For Interbus-safety
    false
    With Safety Function Safe Brake Management (Sbc/Sbt)
    false
    With Safety Function Safe Operating Stop (Sos)
    false
    With Safety Function Safe Speed Monitor (Ssm)
    false
    With Safety Function Safe Torque Off (Sto)
    true
    With Safety Function Safely Limited Speed (Sls)
    true
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type IdsEU, OM, OM8
    Asynchronous Motor Control Profilevoltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
    Line Current10.1 A 200 V heavy duty), 8.4 A 240 V heavy duty)
    MarkingCE, ATEX, UL, CSA, EAC, RCM
    Option Cardcommunication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
    Refresh Timelogic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
    Speed Accuracy+/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
    Certificate AgencyCE, ATEX, NOM, GOST, EAC, RCM, KC
    Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
    Environmental Class (During Transport)class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1.919133904304156, 2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]32 kg CO2 eq., 31.96973774088329
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    1 Phase Low Current Possiblefalse
    Apparent Power2.0 kVA 240 V heavy duty)
    Base Load Current At High Overload33.0 A
    Capacity Of Dc Link1120 µF
    Design Of Frequency ChangerU converter
    Encoder ProtocolRS 422
    Housing Materialplastic
    Maximum Input Current Per Phase10.1 A
    Motor Power Kw0.75 kW heavy duty
    Network Frequency50-60 Hz
    Nominal Switching Frequency4 kHz
    Number Of Hw Interfaces Other1.0
    Number Of Hw Interfaces Profinet0.0
    Number Of Hw Interfaces Serial Rs420.0
    Number Of Hw Interfaces Serial Tty0.0
    Number Of Output Phases1
    Operating Positionvertical +/- 10 degree
    Overvoltage CategoryIII
    Power Dissipation In Wself-cooled 45.0 W 200 V 4 kHz
    Power Loss Static Current Independent45.0 W
    Product Or Component Typevariable speed drive
    Prospective Line Isc1 kA
    Regulation Loopadjustable PID regulator
    Relative Symmetric Network Frequency Tolerance5 %
    Software Versionv6.2.5-6
    Supporting Protocol For Bacnetfalse
    Supporting Protocol For Devicenettrue
    Supporting Protocol For Foundation Fieldbusfalse
    Supporting Protocol For Knxfalse
    Supporting Protocol For Modbustrue
    Supporting Protocol For Profibustrue
    Supporting Protocol For Profinet Iotrue
    Supporting Protocol For Safetybus Pfalse
    Supporting Protocol For Suconetfalse
    Synchronous Motor Control Profilevector control without sensor
    Transient Overtorque170-200 % of nominal motor torque
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permittedtrue
    Pep CodeENVPEP1601008EN
    Pep Verification Date2025-07-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Indonesia, ID
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
    Recyclability Potential, In %54
    Width Nominal72.0 mm
    Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)3.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Workfalse
    Supporting Protocol For Ethernet/Iptrue
    Supporting Protocol For Tcp/Iptrue
    With Safety Function Safe Direction (Sdi)false
    With Safety Function Safe Position (Sp)false
    With Safety Function Safe Stop 1 (Ss1)true
    With Safety Function Safely Limited Position (Slp)false
    With Sft Fct Safe Stop 2 (Ss2)false
    Package Weight(Lbs)1.339 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating, 50-60 °C with derating factor
    Ambient Air Transport Temperature
    -25-70 °C, -25-70 °C
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1601008EN
    Eu Rohs Directive
    Compliant By Exemption
    Nema Degree Of Protection
    NEMA 1
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP1601008EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint701.4469118806611
    Environmental DisclosureENVPEP1601008EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2025-07-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase
    single phase
    Range Of Product
    Altivar Machine ATV320
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable current AQ1 0...20 mA 800 Ohm 10 bits, software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
    Relay Output Type
    configurable relay logic R1A 1 NO 100000 cycles, configurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
    Discrete Output Number
    3
    Maximum Output Voltage
    240 V
    Nominal Output Power
    0.75 kW
    Discrete Output Typeopen collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
    Analogue Output Number1
    Maximum Output Frequency0.599 kHz
    Nominal Output Current4.8 A

    Surge Protection And Filtering Attributes

    Emc Filter
    Class C2 EMC filter integrated

    Input Attributes

    Analogue Input Type
    AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits, AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
    Discrete Input Type
    STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
    Discrete Input Number
    7
    Discrete Input Logicpositive logic (source), negative logic (sink)
    Analogue Input Number3
    Number Of Input Phases1
    Loading video…

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    CAD$512.63/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
    ",{"children":null,"id":"ahrefs web analytics"}])",{"children":null,"id":"ahrefs web analytics"}])
