Brady 90891 Breaker Blocker Kit - Electrical Risk Lockout, Includes 7-1/2 Inch Bars, Glass-Reinforced Nylon
- MPN: 90891
- UPC: 662820050230
- PPN: BRD-90891
- UNSPSC: 39121904
CAD
$43.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Breaker Blockers are ideal for oversized and irregularly shaped switches.
Features
- The Breaker Blocker has self-adhesive backed rails that are permanently installed onto an electrical panel;no drilling required
- Blocking Bars are 7-1/2 in. long
- Red blocking bar indicates locked off, green bar indicates locked on
- Use with padlock to prevent blocker from being removed
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Device Types in Kit | Electrical Risk Lockouts |

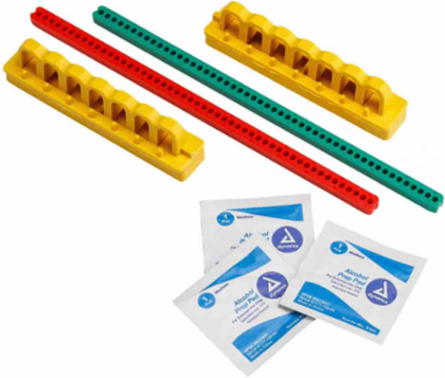

| Includes | (1) Green Blocking Bar, 7.6"; (1) Red Blocking Bar, 7.6"; (2) Yellow Mounting Rails, 4"; (3) Alcohol Wipes |
| Portable | No |
| Risk Type | Electrical Risk |
| Trade Name | Breaker Blocker |
| Adhesive (Y/N) | Yes |
| Brady Material Number | LOTO-44 |
| SAP B-Number | LOTO-44 |
| Height (mm/cm/m) | 20.32 mm |
| Maximum Shackle Diameter (mm/cm/m) | 6.50 mm |
| Minimum Service Temperature °C | -20 °C |
| Size - Width (mm) | 101.60 mm |
| Color | Red, Yellow, Blue and Green |
|---|---|
| Enables Industry Compliance | OSHA 1910.147 |
| National Stock Number (NSN) | 5999015864315 |
| Primary Noun, Basic Function | Lockout Kit |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Wall-Mountable | No |
| Adhesive Type | Permanent Acrylic |
| Material | Glass-Reinforced Nylon |
| Dimensions (Metric) | 101.60 mm W x 20.32 mm H |
| Maximum Service Temperature °C | 120 °C |
| Maximum Switch Width (mm/cm/m) | 150.00 mm |
| Minimum Shackle Clearance - (mm/cm/m) | 20.00 mm |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| Contains 3TG Mineral | No-Does Not Contain |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
