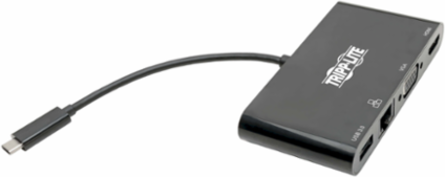

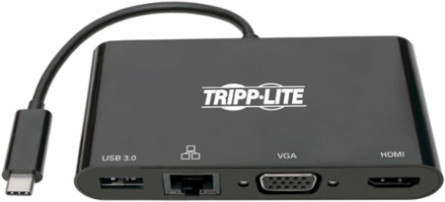

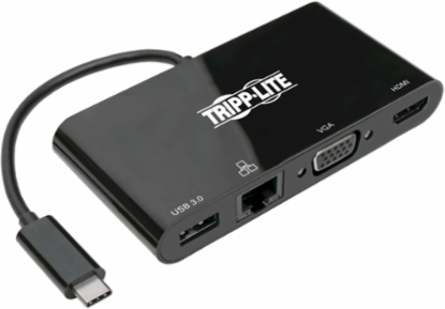

Tripp Lite U444-06N-HV4GUB USB-C Multiport Adapter, 4K HDMI, VGA, Gigabit Ethernet, USB 3.1
- MPN: U444-06N-HV4GUB
- UPC: 037332210487
- PPN: TRP-U444-06N-HV4GUB
CAD
$95.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB-C Multiport Adapter, 4K HDMI, VGA, Gigabit Ethernet, USB 3.1
Features
- Transmits video signals from sources supporting USB-C DisplayPort Alt Mode
- HDMI port delivers UHD quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- Connects you to a wired Gigabit Ethernet network when Wi-Fi is weak or unavailable
- Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- 3-year limited warranty
- USB 3.1 Type-C Adapter Connects an HDMI or VGA Monitor to Your USB-C or Thunderbolt 3 Device
- Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
- Transmits Crystal-Clear 4K HDMI Video and Digital Audio
- USB Port Connects Peripherals and Transfers Data at Fast USB 3.1 Gen 1 Speeds
- Accesses a Wired Gigabit Ethernet Network
- Built-In USB-C Cable Connects in Either Direction
- Ready to Use Right Out of the Package
Documentation & Downloads
Specifications
Features & Specifications
- Max Supported Video Resolution
- HDMI: 3840 X 2160 (4K X 2K) @ 30HZ; VGA: 1920 X 1200 (1080P) @ 60HZ
- HDCP Specification
- 1.4
- Audio Specification
- 7.1 channel surround sound via HDMI port
- Recommended Category Cable
- Cat5/Cat5e/Cat6 Cables
- Auto MDIX Support
- Yes
- Suspend Mode Support
- Yes
- Technology
- Cat5/5e; Cat6; HDMI; USB; USB 3.1 (Gen 1); PD Charging
HDMI Specification1.4
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Driver RequiredNo
USB Power Delivery (PD) Charging SupportYes
Full Duplex SupportYes
Remote Wakeup SupportYes
Battery
- Battery Charging (1.2 Port)
- No
Certifications
- Certifications
- Tested to RoHS, CE, FCC, REACH
Connections
- Ports
- 4
- Side B - Connector 1
- HDMI (FEMALE)
- Side B - Connector 3
- RJ45 (FEMALE)
- Side B - Connector 5
- DB15 (FEMALE)
Side A - Connector 1USB C (MALE)
Side B - Connector 2USB 3.0 A (FEMALE)
Side B - Connector 4USB Type-C (FEMALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- PVC and ABS
- Shipping Weight (lbs.)
- 0.10
- Unit Packaging Type
- Box
ColorBlack
Shipping Dimensions (hwd / in.)0.91 x 5.50 x 3.90
Unit Dimensions (hwd / in.)0.61 x 4.06 x 2.05
Unit Weight (lbs.)0.1
User Interface, Alerts & Controls
- LED Indicators
- Green (Connection), Orange (Activity)
Input
- Bus Powered
- Yes
- Product Length (cm.)
- 15.24
- Product Length (m.)
- 0.15
Product Length (in.)6
Product Length (ft.)0.5
Communications
- Network Speed
- 1Gbps
IEEE Standards Supported802.3; 802.3u; 802.3az; 802.3x
Environmental
- Operating Temperature Range
- 32 to 113 F (0 to 45 C)
- BTUs
- 9.6 BTU/Hr
- Operating Humidity Range
- 10% to 85% RH, Non-Condensing
Storage Temperature Range14 to 158 F (-10 to 70 C)
Power Consumption (Watts)2.8
Storage Humidity Range5% to 90% RH, Non-Condensing
Overview
- UPC Code
- 037332210487
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
