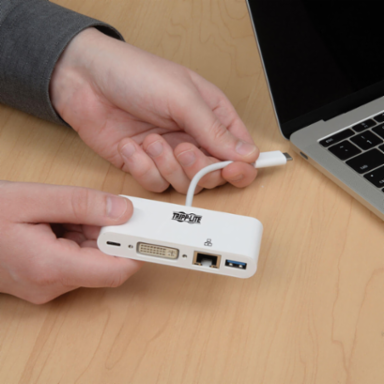

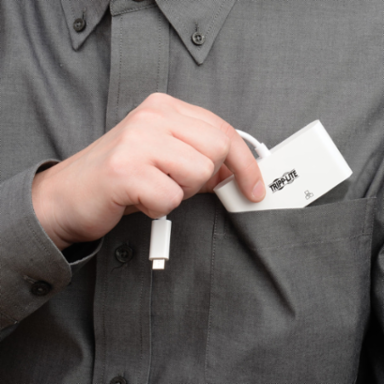

Tripp Lite U444-06N-DGU-C USB-C Multiport Adapter, DVI 1080p, USB-A, PD 60W Charging
- MPN: U444-06N-DGU-C
- UPC: 037332193919
- PPN: TRP-U444-06N-DGU-C
CAD
$51.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

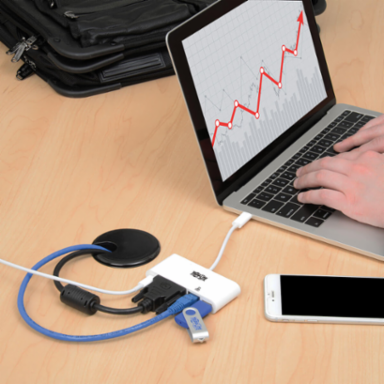

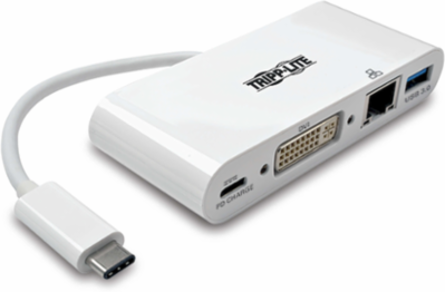

Mini docking station adds DVI, USB-A, USB-C PD charging and Gigabit Ethernet ports to the USB-C or Thunderbolt 3 port on your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC.
Features
- Supports USB DisplayPort Alternate Mode for transmitting video
- Supports DVI video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
- Supports true 10/100/1000 Mbps Ethernet network speeds
- PD Charging port supports power input up to 20V 3A
- BC 1.2-compliant USB-A port provides up to 1.5A of fast-charging power
- Plug-and-play operation with no software or drivers required
- 3-year limited warranty
- Mini Docking Station Turns Your Device’s USB-C Port into a Multiport Workstation

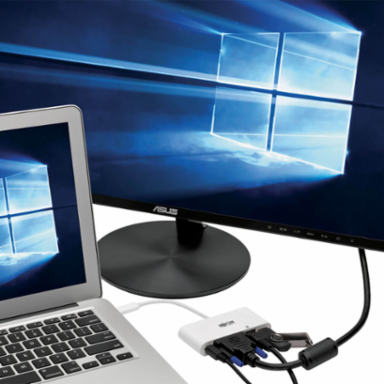

- Transmit Crystal-Clear 1080p Video to DVI Display
- Connect a USB Peripheral
- Charge a Connected Device
- Access a Wired Gigabit Ethernet Network

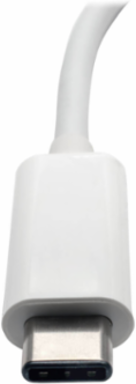

- Built-In Cable with Reversible USB-C Connector
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | DVI: 1920 X 1080 (1080P) @ 60HZ |
|---|---|
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Recommended Category Cable | Cat5/Cat5e/Cat6 Cables |
| Auto MDIX Support | Yes |
| Suspend Mode Support | Yes |
| Technology | Cat5/5e; Cat6; USB 3.1 (Gen 1); DVI; USB; PD Charging |
| HDCP Specification | 1.3 |
|---|---|
| Driver Required | No |
| USB Power Delivery (PD) Charging Support | Yes |
| Full Duplex Support | Yes |
| Remote Wakeup Support | Yes |
| USB Power Delivery (PD) Charging Specification | 2.0 |
Battery
| Battery Charging (1.2 Port) | Yes |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 4 |
|---|---|
| Side B - Connector 1 | DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) |
| Side B - Connector 3 | RJ45 (FEMALE) |
| Connector Plating | Nickel |
| Side A - Connector 1 | USB C (MALE) |
|---|---|
| Side B - Connector 2 | USB 3.0 A (FEMALE) |
| Side B - Connector 4 | USB Type-C (FEMALE) |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC and ABS |
| Shipping Weight (lbs.) | 0.20 |
| Unit Packaging Type | Box |
| Color | White |
|---|---|
| Shipping Dimensions (hwd / in.) | 0.91 x 3.90 x 5.70 |

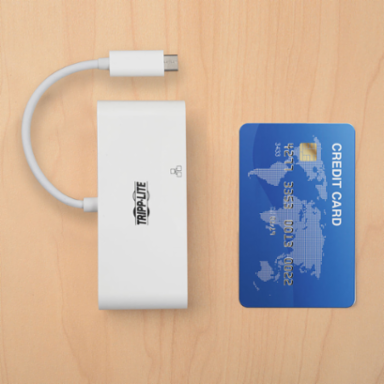

| Unit Dimensions (hwd / in.) | 0.65 x 3.8 x 1.6 |
| Unit Weight (lbs.) | 0.09 |
User Interface, Alerts & Controls
| LED Indicators | Green = Connected, Orange = Activity |
|---|
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 15.24 |
| Product Length (m.) | 0.15 |
| Product Length (in.) | 6 |
|---|---|
| Product Length (ft.) | 0.5 |
Output
| Charging Ports / Amps | 1.5A; 3A |
|---|
| Charging Watts | 60 |
|---|
Communications
| Network Speed | 1Gbps |
|---|
| IEEE Standards Supported | 802.3; 802.3u; 802.3az; 802.3x |
|---|
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 8.3 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Power Provided to Connected Device(s) | 5V 1.5A (7.5W) Output (USB-A), Up to 20V 3A (60W) Input (USB-C) |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 2.4 |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
Overview
| UPC Code | 037332193919 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
