Tripp Lite PDU3MV6L2120LV 5.7kW 3-Phase Metered PDU, 120V Outlets (42 5-15/20R), L21-20P, 6ft Cord, 0U Vertical, TAA
Tripp Lite PDU3MV6L2120LV 5.7kW 3-Phase Metered PDU, 120V Outlets (42 5-15/20R), L21-20P, 6ft Cord, 0U Vertical, TAA
- MPN: PDU3MV6L2120LV
- UPC: 037332163899
- PPN: TRP-PDU3MV6L2120LV
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1215.51/ EA
Description
5.7kW 3-Phase Metered PDU, 120V Outlets (42 5-15/20R), L21-20P, 6ft Cord, 0U Vertical, TAA
Features

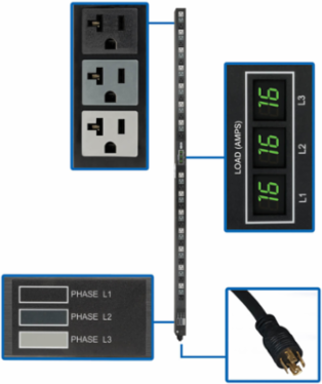

- Metered 5.7kW 3 Phase 120V output PDU; 70 in. / 178cm 0U vertical rackmount
- Reports load level per-phase via built in current meters

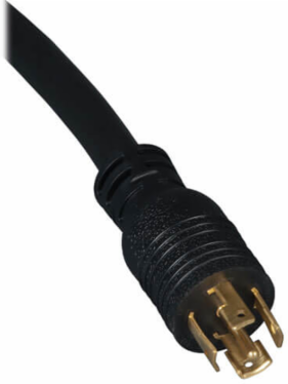

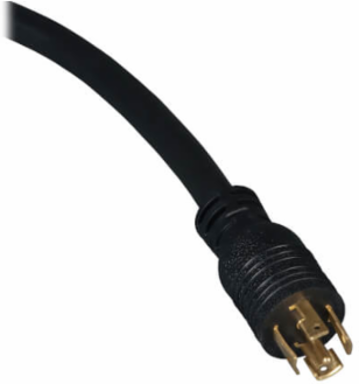

- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord

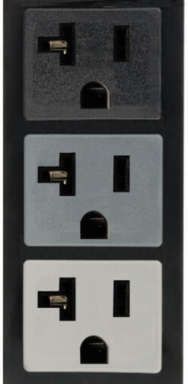

- 42 NEMA 5-15/20R outlets (120V), Toolless button-mount installation; cord retention brackets included
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1 (USA, Canada), NOM (Mexico), Class A (Emissions), ROHS, TAA Compliant
Physical
- Form Factors Supported

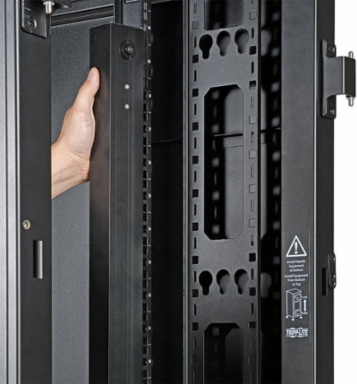

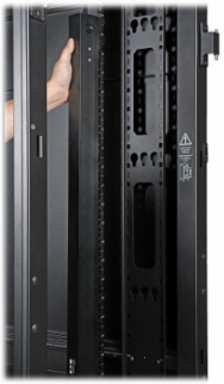

- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- PDU Form Factor
- Vertical (0U)
- Shipping Weight (lbs.)
- 14.60
- Unit Weight (lbs.)
- 12.7
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)5.40 x 6.80 x 76.00
Unit Dimensions (hwd / in.)70 x 2.2 x 1.71
User Interface, Alerts & Controls
- Reported Load Segments

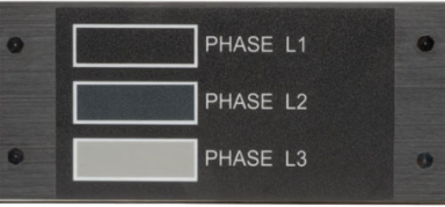

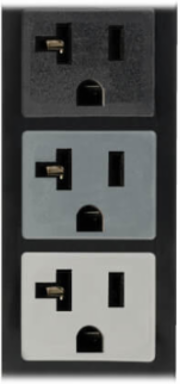

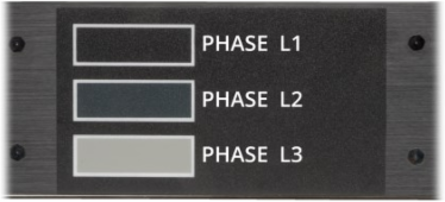

- Supports local monitoring of current for each output phase (16A balanced max per L1, L2 and L3); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black 5-20R outlets; L2-N feeds dark-gray 5-20R outlets; L3-N feeds light-gray 5-20R outlets
- Front Panel LEDs
- n/a

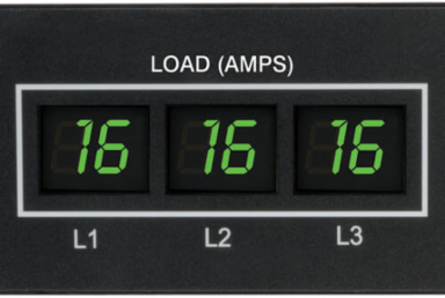

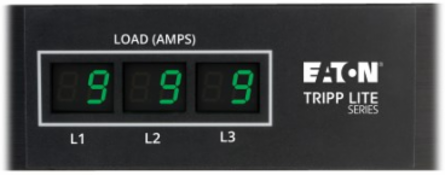

Front Panel LCD DisplaySet of 3 digital current meters report output current per phase
Switchesn/a
Input
- PDU Input Voltage
- 208
- Maximum Input Amps
- 16
- Input Phase
- 3-Phase
Recommended Electrical Service20A 208V with NEMA L21-20R outlet
PDU Plug TypeNEMA L21-20P
Input Cord Length (ft.)6
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (42) 5-15/20R
- Overload Protection
- n/a
Output Capacity Details5.7kW (120V) total capacity / 16A max per output phase (L1, L2, L3); 16A max per 5-15/20R outlet
Output Nominal Voltage120
Environmental
- Operating Temperature Range
- 0-50C (32-122F)
- Relative Humidity
- 5-95% non-condensing
- Operating Elevation (m)
- 0-3000
Storage Temperature Range-30°C to +60°C (-22°F to +140°F)
Operating Elevation (ft.)0-10,000
Overview
- UPC Code
- 037332163899
PDU TypeMetered
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
