Tripp Lite PDUMV30 2.9kW Single-Phase Metered PDU, 120V Outlets (24 5-15/20R), L5-30P, 10ft Cord, 0U Vertical
Tripp Lite PDUMV30 2.9kW Single-Phase Metered PDU, 120V Outlets (24 5-15/20R), L5-30P, 10ft Cord, 0U Vertical
- MPN: PDUMV30
- UPC: 037332139337
- PPN: TRP-PDUMV30
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$835.74/ EA
Description

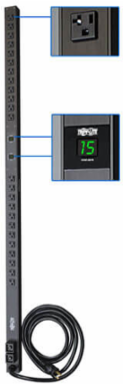

2.9kW Single-Phase Metered PDU, 120V Outlets (24 5-15/20R), L5-30P, 10ft Cord, 0U Vertical
Features
- Metered single phase 30A 120V, 0U 63.75in / 162cm vertical rackmount PDU
- Pair of digital meters report output current in amps for each load bank
- Attached 10ft / 3.0m cord with NEMA L5-30P input plug
- 24 NEMA 5-15/20R outlets in two separately breakered load banks
- Toolless button mount and bolt-down bracket installation hardware included
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1 (USA, Canada), NOM (Mexico)
Physical
- Form Factors Supported
- 0u vertical installation in equipment racks, plus under-counter and wallmount
- PDU Form Factor
- Vertical (0U)
- Shipping Weight (lbs.)
- 11.00
- Unit Weight (lbs.)
- 8
Material of ConstructionAluminum
Shipping Dimensions (hwd / in.)5.00 x 3.00 x 65.00
Unit Dimensions (hwd / in.)63.75 x 2.25 x 3.75
User Interface, Alerts & Controls
- Front Panel LCD Display
- Set of 2 digital current meters continuously report PDU output current in amps for Bank 1 (20A max) and Bank 2 (20A max) outlets
- Switches
- n/a
Front Panel LEDsIncludes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately breakered 20A loading bank.
Input
- PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps
- 30
- PDU Plug Type
- NEMA L5-30P
- Input Cord Length (ft.)
- 10
Recommended Electrical Service30A 120V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (24) 5-15/20R
- Overload Protection
- Two 20A breakers protect 12 outlets each
Output Capacity Details3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet
Output Nominal Voltage100; 120; 127
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity0-95% non-condensing
Overview
- UPC Code
- 037332139337
PDU TypeMetered
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
