Tripp Lite PDUMV30HV2 5.8kW Single-Phase Metered PDU, 208/240V Outlets (8 C19 and 40 C13), L6-30P, 10 ft. Cord, 0U Vertical, TAA, 70 in.

5.8kW Single-Phase Metered PDU, 208/240V Outlets (8 C19 and 40 C13), L6-30P, 10 ft. Cord, 0U Vertical, TAA, 70 in. - https://media.province-electric.com/tripplite/2020q1/9dbbfc50537b8ab6e4a11cc3ca2c2993c429ee0b-medium.png

5.8kW Single-Phase Metered PDU, 208/240V Outlets (8 C19 and 40 C13), L6-30P, 10 ft. Cord, 0U Vertical, TAA, 70 in.

Tripp Lite PDUMV30HV2 5.8kW Single-Phase Metered PDU, 208/240V Outlets (8 C19 and 40 C13), L6-30P, 10 ft. Cord, 0U Vertical, TAA, 70 in.

MPN: PDUMV30HV2
UPC: 037332182807
PPN: TRP-PDUMV30HV2

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1072.13/ EA

Qty:

Loading add to cart quantity...

Description

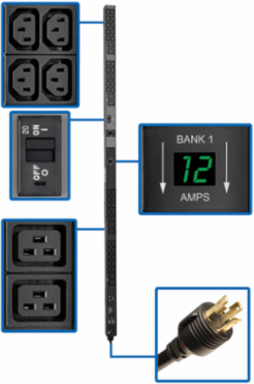

Distributes 30A single-phase AC power to as many as 48 servers, routers, switches and other networking rack equipment. Features digital ammeters for real-time monitoring of load levels to prevent overloads.

Features

Ideal for server rooms, network closets and data centers
Dual load banks with 24 outlets each (4 C19 and 20 C13)
Dedicated 20A circuit breakers protect output

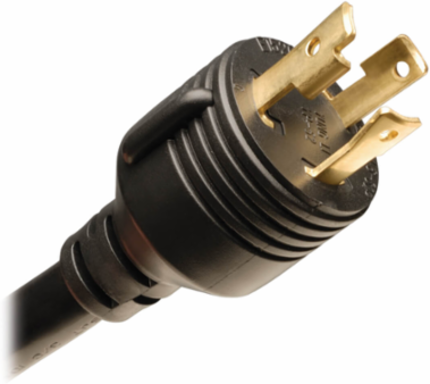

NEMA L6-30P input plug with 10-ft. (3 m) cord

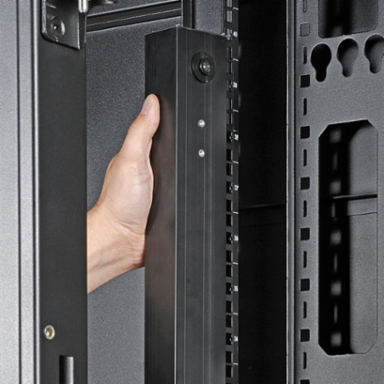

Ready for immediate toolless 0U installation
2-year limited warranty

Specifications

Certifications

Certifications: Tested to UL/CAN 60950-1 (USA, Canada), NOM (Mexico), FCC Class A (Emissions), ROHS Compliant, TAA Compliant

Physical

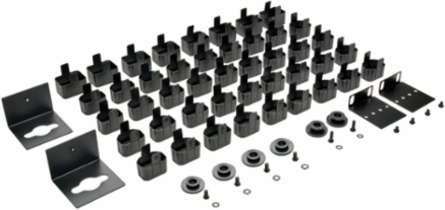

Form Factors Supported: 0u vertical installation in equipment racks, plus under-counter and wallmount

PDU Form Factor: Vertical (0U)

Shipping Weight (lbs.): 16.98

Unit Weight (lbs.): 12.35

Material of ConstructionMetal

Shipping Dimensions (hwd / in.)6.89 x 9.65 x 75.87

Unit Dimensions (hwd / in.)70 x 2.17 x 2.52

User Interface, Alerts & Controls

Reported Load Segments: Supports local monitoring of output current for each output load bank; Outlets, circuit breakers and current meters are color-coded and labeled for easy identification (Black: 20A Bank 1 / Gray: 20A Bank 2)

Front Panel LEDs: n/a

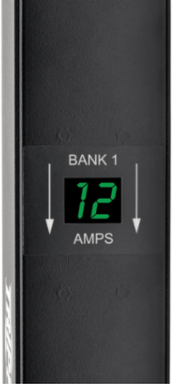

Front Panel LCD DisplaySet of two digital current meters report output current in two segments

Switchesn/a

Input

PDU Input Voltage: 200; 208; 240

Maximum Input Amps: 30

PDU Plug Type: NEMA L6-30P

Input Cord Length (ft.): 10

Recommended Electrical Service30A 208/240V

Maximum Input Amps DetailsAgency de-rated to 24A continuous

Input PhaseSingle-Phase

Output

Frequency Compatibility: 50 / 60 Hz

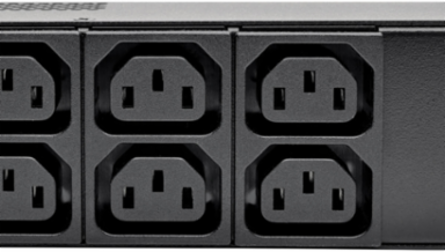

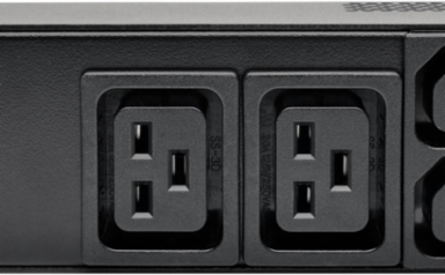

Output Receptacles: (40) C13; (8) C19

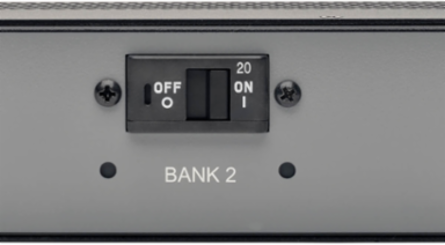

Overload Protection: Two 20A breakers protect 24 outlets each

Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet

Output Nominal Voltage200; 208; 240
