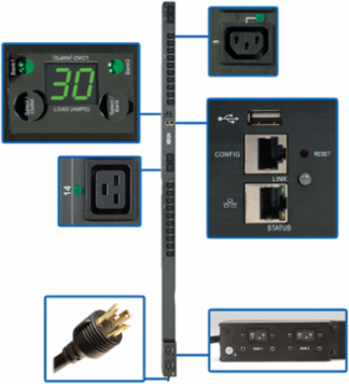

Tripp Lite PDUMVR30HVNETLX 5/5.8kW Single-Phase Switched PDU, Outlet Monitoring, 208/240V Outlets (20 C13 & 4 C19), 0U, LX Platform Interface, TAA
Tripp Lite PDUMVR30HVNETLX 5/5.8kW Single-Phase Switched PDU, Outlet Monitoring, 208/240V Outlets (20 C13 & 4 C19), 0U, LX Platform Interface, TAA
- MPN: PDUMVR30HVNETLX
- UPC: 037332202840
- PPN: TRP-PDUMVR30HVNETLX
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3176.34/ EA
Description
Efficient, cost-effective 5/5.8kW PDU distributes, monitors and manages single-phase power in an IT or industrial environment. Built-in Ethernet interface helps monitor load levels to prevent overloads that cause downtime.
Features
- 5/5.8kW 208/240V 30A switched PDU
- 24 switched outlets—20 C13, 4 C19
- Ethernet network interface for remote outlet access 24/7
- Digital meter for load monitoring in real time
- Monitors power consumption of individual outlets
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- Distributes Network-Grade Single-Phase Power
- 24 Switched Outlets Distribute AC Power
- Digital Load Meter
- Outlet-Level Current Monitoring
- Advanced Network Monitoring
- Broad Communications Compatibility
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Easy 0U Installation in EIA-Standard 19 in. Racks
- TAA-Compliant
Specifications
Certifications
- Certifications
- Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported

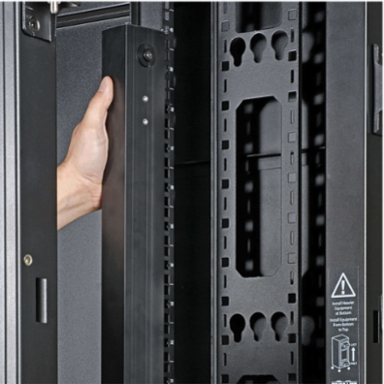

- 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks
- Shipping Dimensions (hwd / in.)
- 5.40 x 6.80 x 76.10
- Unit Dimensions (hwd / in.)
- 70 x 2.2 x 2.6
PDU Form FactorVertical (0U)
Shipping Weight (lbs.)16.50
Unit Weight (lbs.)12
User Interface, Alerts & Controls
- Front Panel LCD Display

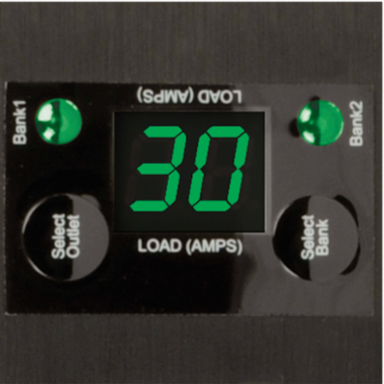

- Digital display reports load level in amps for LOAD BANK 1 (Outlets 1-12), LOAD BANK 2 (Outlets 13-24), LOAD BANKS 1&2 COMBINED (Outlets 1-24) and each individual output receptacle; Digital display can also be used to scroll the configured IP address
- Switches
- SELECT OUTLET and SELECT BANK switches advance the LCD screen and associated LED to display power consumption for individual output receptacles and output load banks; Press and hold the SELECT BANK button for 4 seconds to rotate the digital display 90 degrees for overhead power input; Press and hold the SELECT OUTLET button for 4 seconds to scroll the configured IP address. LX Platform Interface: Recessed reset switch for interface reboot and factory reset
- Voltage Measurement Accuracy (Volts)
- +/-1%
Front Panel LEDsBANK 1 and BANK 2 LEDs verify which load bank the digital current display is reporting (Bank 1, Bank 2 or Banks 1&2 Combined); BANK 1 or BANK 2 LED will flash when the digital display is reporting output current for one of the outlets in that load bank; 24 additional LEDs, one near each output receptacle, will light continuously to verify power on/off status and flash to indicate that the digital display is reporting output current for just that individual receptacle. Network Link/Activity Status LED (Yellow), Network Speed LED (Green); LX Platform status LED (Green)
Current Measurement Accuracy (Amps)+/-1%
Power Measurement Accuracy (Watts)+/-1%
Input
- PDU Input Voltage
- 200; 208; 240
- Maximum Input Amps
- 30
- PDU Plug Type

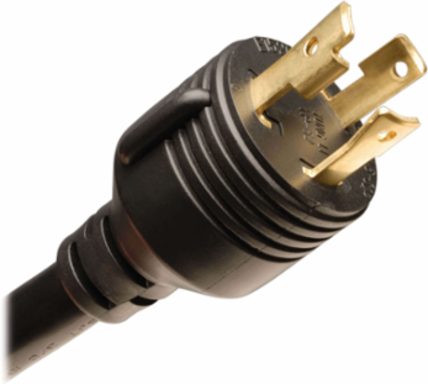

- NEMA L6-30P
- Input Cord Length (ft.)
- 10
Recommended Electrical Service30A 208/240V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles

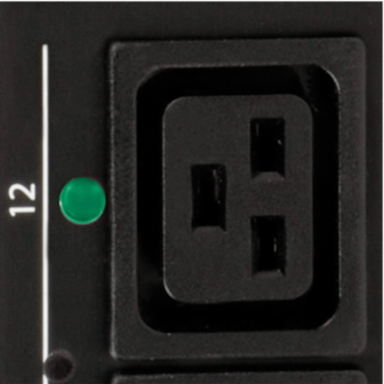

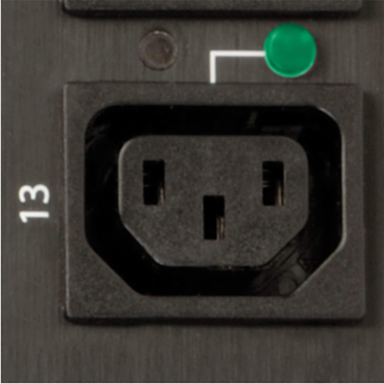

- (20) C13; (4) C19
- Overload Protection

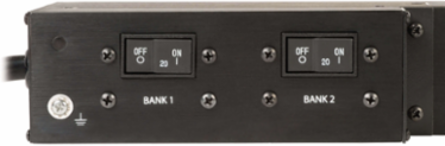

- Two 20A breakers protect 12 outlets each
Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage200; 208; 240
Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface
Communications
- Network Monitoring Port

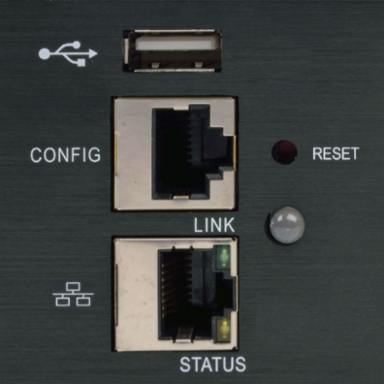

- RJ45 Network port, RJ45 Config/Console Access port; USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP CompatibilityPre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH, CLI and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity5 to 95% non-condensing
Overview
- UPC Code
- 037332202840
PDU TypeSwitched
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
