Tripp Lite PDU3MV6L2120B 5.7kW 3-Phase Metered PDU, 208/120V Outlets (21 5-15/20R, 6 L6-20R), L21-20P, 6ft Cord, 0U Vertical, TAA
Tripp Lite PDU3MV6L2120B 5.7kW 3-Phase Metered PDU, 208/120V Outlets (21 5-15/20R, 6 L6-20R), L21-20P, 6ft Cord, 0U Vertical, TAA
- MPN: PDU3MV6L2120B
- UPC: 037332163905
- PPN: TRP-PDU3MV6L2120B
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1345.97/ EA
Description
5.7kW 3-Phase Metered PDU, 208/120V Outlets (21 5-15/20R, 6 L6-20R), L21-20P, 6ft Cord, 0U Vertical, TAA
Features

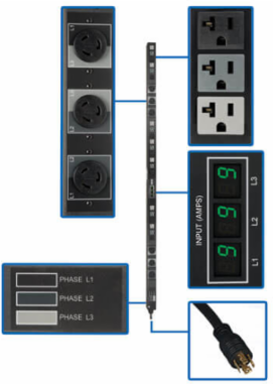

- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports input current per-phase via built in current meters

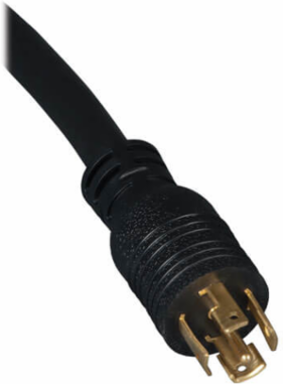

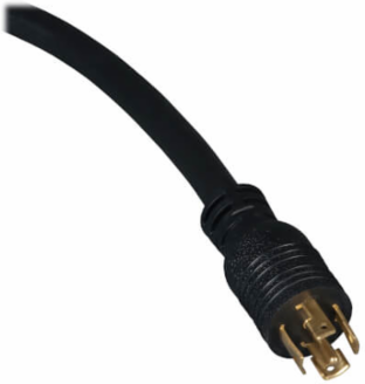

- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)

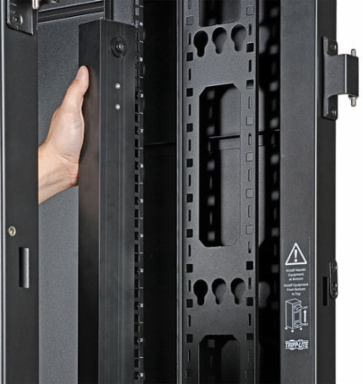

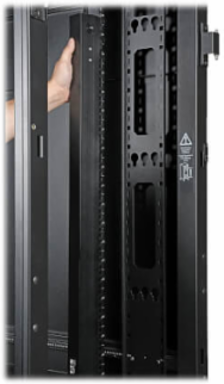

- Toolless button-mount installation; cord retention brackets included
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1 (USA, Canada), NOM (Mexico), Class A (Emissions), ROHS, TAA Compliant
Physical
- Form Factors Supported
- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- PDU Form Factor
- Vertical (0U)
- Shipping Weight (lbs.)
- 14.50
- Unit Weight (lbs.)
- 12.6
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)5.20 x 6.70 x 76.50
Unit Dimensions (hwd / in.)70 x 2.2 x 1.71
User Interface, Alerts & Controls
- Reported Load Segments

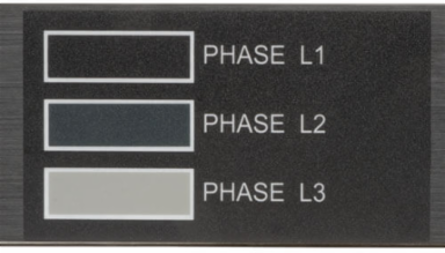

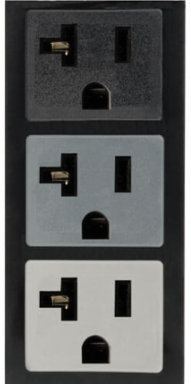

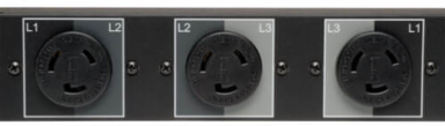

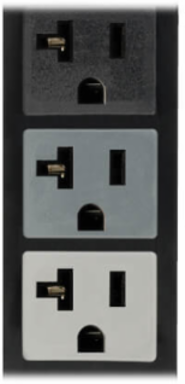

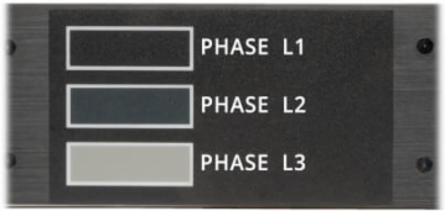

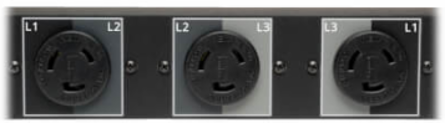

- Supports local monitoring current for each input phase (9.2A balanced max per L1, L2 and L3); Outlets are color-coded and labeled for easy phase and load bank identification; L1-L2 feeds 2 L6-20R outlets; L2-L3 feeds 2 L6-20R outlets; L3-L1 feeds 2 L6-20R outlets; L1-N feeds black 5-20R outlets, Phase L2-N feeds dark-gray 5-20R outlets, Phase L3-N feeds light-gray 5-20R outlets
- Front Panel LEDs
- n/a

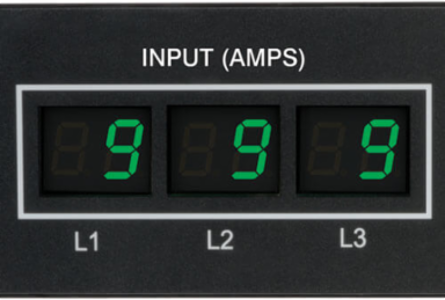

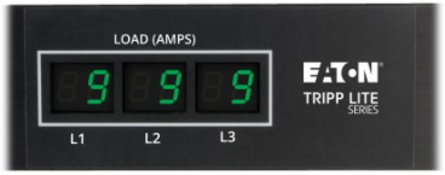

Front Panel LCD DisplaySet of 3 digital current meters report input current per phase
Switchesn/a
Input
- PDU Input Voltage
- 208
- Maximum Input Amps
- 16
- Input Phase
- 3-Phase
Recommended Electrical Service20A 208V with NEMA L21-20R outlet
PDU Plug TypeNEMA L21-20P
Input Cord Length (ft.)6
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Capacity Details
- 5.7kW (208/120V) total capacity; 9.2A (208V) max per output phase (L1-L2, L2-L3, L3-L1) / 16A (120V) max per output phase (L1, L2, L3)
- Output Nominal Voltage
- 120; 208
Output Receptacle Details5-15/20R outlets provide 120V output; L6-20R outlets provide 208V output
Output Receptacles(21) 5-15/20R; (6) L6-20R
Overload Protectionn/a
Environmental
- Operating Temperature Range
- 0 to 50C (32 to 122F)
- Relative Humidity
- 5-95% non-condensing
- Operating Elevation (m)
- 0-3000
Storage Temperature Range-30°C to +60°C (-22°F to +140°F)
Operating Elevation (ft.)0-10,000
Overview
- UPC Code
- 037332163905
PDU TypeMetered
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
