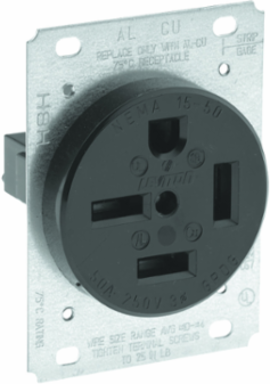

Leviton 8450 50 Amp Flush Mount Receptacle NEMA 15-50R 250 Volt Industrial Grade
- MPN: 8450
- UPC: 078477843321
- PPN: LEV-8450
CAD
$66.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

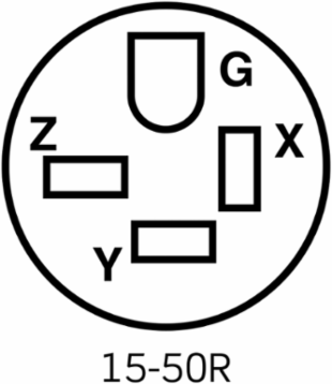

50 Amp, 250 Volt, NEMA 15-50R, 3P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, 3-Phase, Side Wired, Steel Strap, - Black
Features
- Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Strap Material
- Galvanized Steel
ColorBlack
Line ContactsBrass Double-Wipe
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.Up to 4 AWG
Torque Range25 in-lbs
Product Features
- Device Type
- Power Device
Feature3-Phase
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 50 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire4
AC Horsepower Ratings
- At Rated Voltage
- 7-1/2 HP
