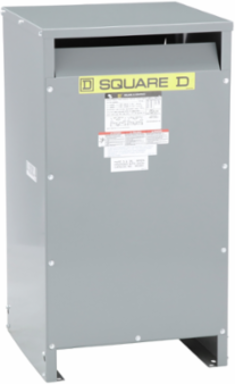

Square D EE50S3534H Dry Type Transformer 50kVA 1 Phase 600V Primary 120/240V Secondary 150C Rise
- MPN: EE50S3534H
- UPC: 785901688525
- PPN: SCH-EE50S3534H
CAD
$3978.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Offering efficient power management, this dry type transformer from Schneider Electric is designed for one-phase applications, providing a robust solution for various power distribution needs. With a primary voltage of 600V and a secondary voltage of 120/240V, it boasts a 50kVA capacity, making it ideal for facilities requiring reliable voltage transformation. The 150C rise rating ensures it operates effectively under demanding conditions, promoting both safety and longevity in industrial environments. This transformer is an essential component for ensuring reliable energy supply while optimizing space in your power distribution system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Rated Power In Va
- 50 kVA
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 39.05594018663711, 39 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 19 412 kg CO2 eq., 19412.35594900162
- Local Publishable Date
- 2025-11-18
- Stocking Flag
- N
- Device Type
- Transformer - dry
- Traceability
- Yes
- Average Life Duration
- 25 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1910
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Box Number
- 18H
- Material
- aluminium
- Primary Voltage
- 600 V
- Product Or Component Type
- Energy Efficient Transformer
- Secondary Voltage
- 120/240 V
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 21 277 kg CO2 eq.
- Database Version
- 2024-11
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential In %
- 95
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504330040
Carbon Footprint Of The End-of-life Phase [C1 To C4]442 kg CO2 eq., 441.73725098439246
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 383 kg CO2 eq., 1383.417388611804
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPSIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Insulation Temperature220 °C
Phase1 phase
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software Versionv6.2.4
Temperature Rise150 °C
Pep CodeENVPEP1604028EN
Pep Verification Date2025-02-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To step down a distribution line voltage of 75kVA to voltage levels used by the end customer at the energy efficiency requirements defined by the DOE for 20 years.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh40527.264
Energy Model - Installation [A5]Electricity origin
Energy Model - End Of Life [C1-c4]Electricity origin
Number Of Tap-offs6 2.5 % 2+ 4-
Package Weight(Lbs)191.416 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 21276.566528784453
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1604028EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1604028EN
Nema Degree Of ProtectionNEMA 2
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-02-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 1 phase
Product Or Component TypeEnergy Efficient Transformer
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
