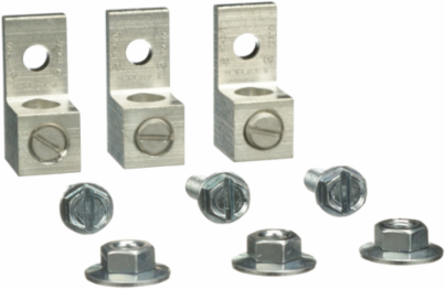

Square D DASKP100 Mechanical Lug Kit, 100A, AWG 1/0 to 14, Set of 3, Aluminium
- MPN: DASKP100
- UPC: 785901428541
- PPN: SCH-DASKP100
CAD
$11.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
As the industry leading designer, manufacturer, and supplier of low voltage, general purpose transformers. Schneider Electric has the expertise necessary to meet your increased demands by providing reliable products and outstanding support services. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. These units can be used outdoors without accessories. Units are UL Listed and CSA Certified. This mechanical lug kit is an electrical accessory. This Mechanical Lug Kit, 100A, 1 or 3Ph Delta Pri-1Ph or 3Ph Delta Sec Transformer, requires AWG 14/AWG 1/0 stranded, is made of aluminium and comes in a set of 3.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Provided Equipment
- lug 3 , primary 14 AWG...1/0 AWG stranded), nut 3 ,, bolt 3 ,
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PSIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Material
- aluminium
- Product Destination
- transformer
- Quantity Per Set
- set of 3
- Sustainable Packaging
- No
- Accessory / Separate Part Category
- electrical accessory
- Package Weight(Lbs)
- 90.719 g
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typemechanical lug
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536908585
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Provided Equipment
- lug 3 , primary 14 AWG...1/0 AWG stranded), nut 3 ,, bolt 3 ,
Product Or Component Typemechanical lug
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
