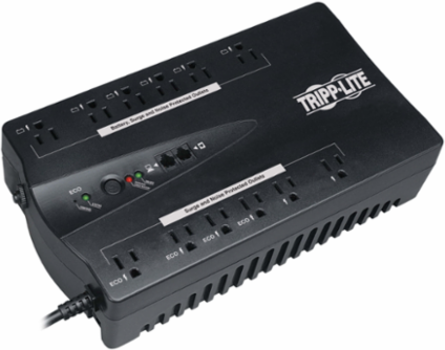

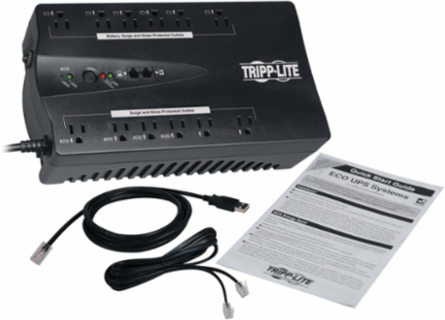

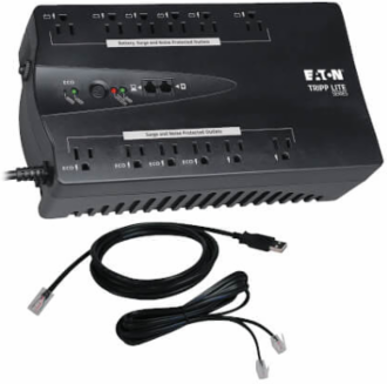

Tripp Lite ECO750UPSTAA TAA-Compliant ECO Series 120V 750VA 450W Energy-Saving Standby UPS with USB port and 12 Outlets
Tripp Lite ECO750UPSTAA TAA-Compliant ECO Series 120V 750VA 450W Energy-Saving Standby UPS with USB port and 12 Outlets
- MPN: ECO750UPSTAA
- UPC: 037332152749
- PPN: TRP-ECO750UPSTAA
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$291.36/ EA
Description
TAA-Compliant ECO Series 120V 750VA 450W Energy-Saving Standby UPS with USB port and 12 Outlets
Features
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 750VA ultra-compact 120V standby UPS, energy-saving ECO outlets
- Maintains AC output during power failures, 99% line mode efficiency
- ECO option turns off set of four outlets when the computer is not in use
- USB port, TEL/DSL protection, Wall mountable, Surge-only outlets
- NEMA 5-15P input plug and 12 NEMA 5-15R outlets
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 420
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out)
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Half Load Runtime (min.)
- 9.4 min. (225w)
- Battery Recharge Rate (Included Batteries)
- Less than 16 hours from 10% to 90%
DC System Voltage (VDC)12
Expandable RuntimeNo
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); TAA Compliant
Physical
- Installation Form Factors Supported with Included Accessories
- Tower; Ultra-compact desktop; Wallmount
- Primary UPS Depth (mm)
- 175
- Primary UPS Width (mm)
- 310
- Shipping Weight (lbs.)
- 8.79
- UPS Power Module Dimensions (hwd, in.)
- 3.1 x 12.2 x 6.9
- UPS Power Module Weight (lbs.)
- 7.22
Primary Form FactorDesktop
Primary UPS Height (mm)79
Shipping Dimensions (hwd / in.)4.60 x 15.04 x 9.84
UPS Housing MaterialPlastic
UPS Power Module Weight (kg)3.27
User Interface, Alerts & Controls
- Switches
- Combination switch controls on/off power status and self-test operation; second recessed push-button switch enables ECO outlet switching
- LED Indicators
- 3 LEDs indicate power status, overload/check battery and ECO-mode status
Audible AlarmAudible alarm indicates power-failure and overload status
Input
- Rated input current (Maximum Load)
- 10A
- UPS Input Connection Type
- 5-15P; Right-Angled
- Recommended Electrical Service
- 15A 120V
Nominal Input Voltage(s) Supported120V AC
UPS Input Cord Length (ft.)6
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 750
- Nominal Voltage Details
- 115v nominal output in battery mode
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- No
Output Watt Capacity (Watts)450
Frequency Compatibility60 Hz
UPS Output Receptacles (Surge Suppression Only)6 UPS outlets, 6 surge-only outlets
Output AC Waveform (Battery Mode)PWM sine wave
Output Receptacles(12) 5-15R
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Communications Interface
- USB (HID enabled)
Communications CableUSB interface cable included
Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- 99%
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)3
Overview
- UPC Code
- 037332152749
UPS TypeStandby
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$100,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- AC to battery mode: 4 milliseconds / Battery to AC mode: 1 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 139
Low Voltage Transfer to Battery Power (Setpoint)99
