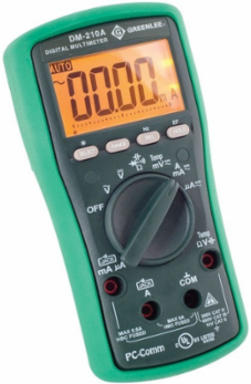

Greenlee DM-210A Digital Multimeter 6000 Count, 1000V, 8A, Backlit LCD Display
- MPN: DM-210A
- UPC: 783310087410
- PPN: GRN-DM-210A
- UNSPSC: 41113630
CAD
$265.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Digital Multimeter 6000 Count, 1000V, 8A, Backlit LCD Display
Features
- Measures voltage, current, resistance and frequency
- Tests continuity and diodes
- Backlit LCD with 6,000 count display
- Two voltage detection modes - non-contact or using a single test lead
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual rangeselection
- Relative offset mode to see changes in measurements
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Battery
- (2) 1.5 V AAA
- Display
- Backlit LCD With 6,000 Count
- Includes

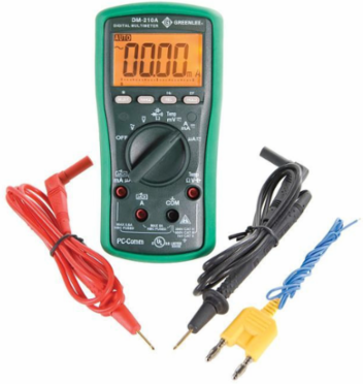

- (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot
- Replacement Part
- TSG-3 Sure-Grip Test Leads
- Standard
- CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
- Temperature Rating
- K Type, -58 To 1832 DEG F (-50 To 1000 DEG C)
- Voltage Measurement
- 60, 600 MILV, 6, 60, 600, 1000 V
Amperage Measurement600, 6000 MICAMP, 60, 600 MILAMP, 6, 8 AMP
Capacitance60, 600 NFD, 6, 60, 600, 3000MFD
Frequency Measurement10 HZ - 50 KHZ Sine Wave, 5 HZ - 999.9 KHZ Logic Level Square Wave
Measurement CategoryCAT IV 300 V, CAT III 600 V, CAT II 1000 V
Resistance Measurement600 OHM, 6, 60, 600 KOHM, 6, 60 MOHM
Sub BrandESM
TypeDigital
