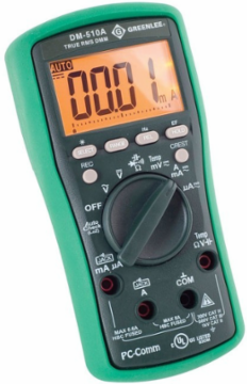

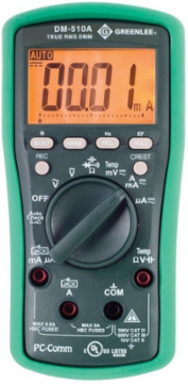

Greenlee DM-510A Digital Multimeter 6000 Count, 1000V, 8A, Backlit LCD
- MPN: DM-510A
- UPC: 783310087427
- PPN: GRN-DM-510A
- UNSPSC: 41113630
CAD
$363.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Digital Multimeter 6000 Count, 1000V, 8A, Backlit LCD
Features
- Measures voltage, current, resistance and frequency
- Tests continuity and diodes
- Backlit LCD with 6,000 count display
- Two voltage detection modes - non-contact or using a single test lead
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual rangeselection
- Relative offset mode to see changes in measurements
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Battery
- (2) 1.5 V AAA
- Display
- Backlit LCD With 6,000 Count

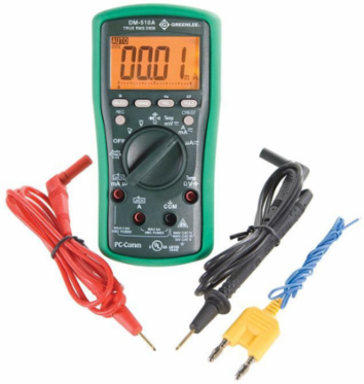

- Includes
- (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400°F/204°C max), Test leads, ProtectiveBoot
- Replacement Part
- TSG-3 Sure-Grip Test Leads
- Standard
- CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
- Temperature Rating
- K Type, -58 To 1832°F (-50 To 1000°C)
- Voltage Measurement
- 60, 600 mV, 6, 60, 600, 1000V
Amperage Measurement600, 6000μA; 60, 600mA; 6, 8A
Capacitance60, 600 nF; 6, 60, 600, 3000μF
Frequency Measurement10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave
Measurement CategoryCAT IV 300 V, CAT III 600 V, CAT II 1000 V
Resistance Measurement600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
Sub BrandESM
TypeProfessional Plant Digital
