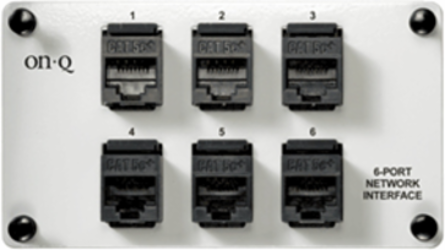

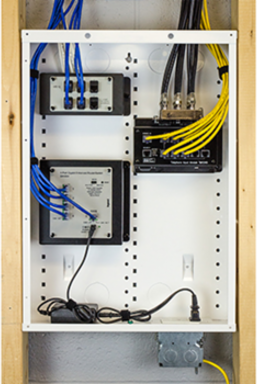

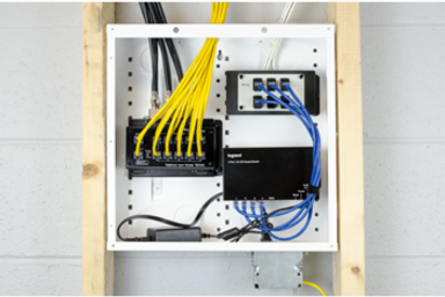

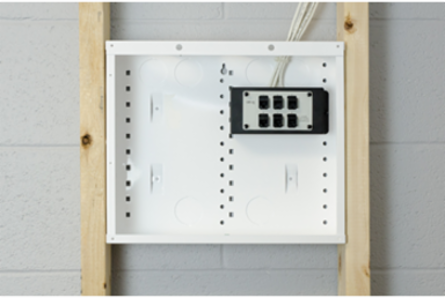

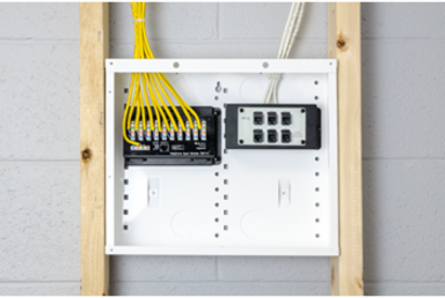

On-Q AC1000 6-Port Network Interface Module AC1000
- MPN: AC1000
- UPC: 804428019589
- PPN: P-S-AC1000
- UNSPSC: 43223309
CAD
$59.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

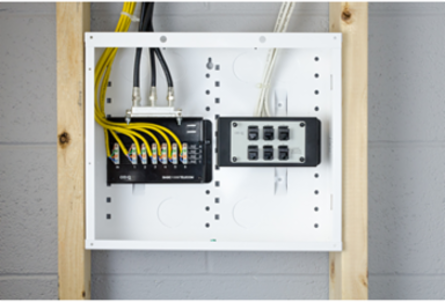

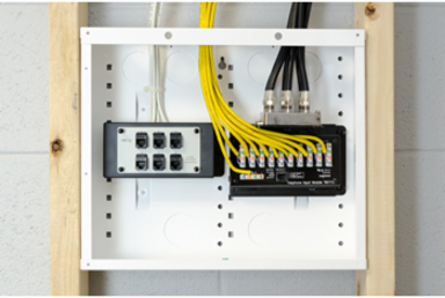

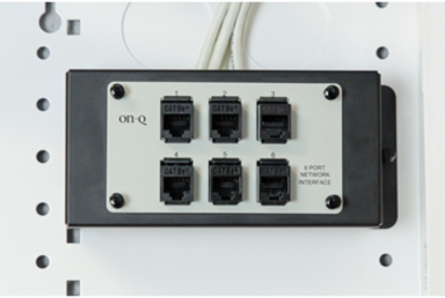

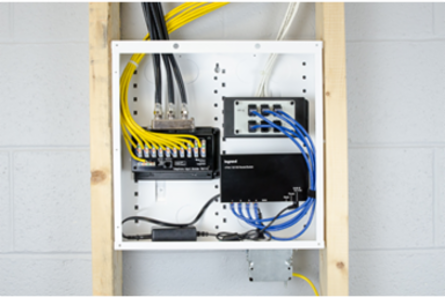

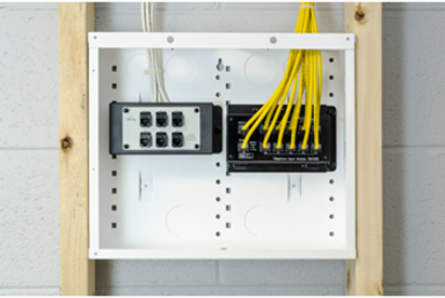

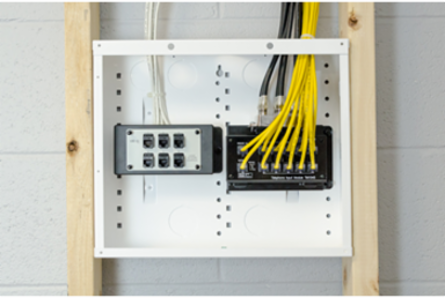

This module supports punchdown termination of up to 6 Cat5e cable runs for easy interface within the home network.
Features
- RJ45 jacks for simple line reconfiguration.
- Supports high-speed Cat5e termination for computer network.
- Used in conjunction with primary phone, computer, camera or audio module.
Documentation & Downloads
Specifications
Technical Information
| Current Max | 1.5A |
|---|---|
| Material | 18 Gauge Cold Rolled Steel |
| Operating Temperature (Celsius) | -10°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Number Of Receptacles | 6 |
| Humidity | Maxim Noncondensing Relative Humidity 93% |
|---|---|
| Mounting | Enclosure |
| Shape | Rectangular |
| Receptacle Type | RJ45 Female |
Dimensions
| Depth (Metric) | 6.9 cm |
|---|---|
| Height (Metric) | 7.4 cm |
| Width (Metric) | 16.5 cm |
| Thickness (US) | 18 Gauge |
| Depth (US) | 2.7" |
|---|---|
| Height (US) | 2.9" |
| Width (US) | 6.5 in |
Cord Information
| Connector Type End One | RJ45 |
|---|
| Connector Type End Two | IDC Punchdown |
|---|
General Info
| Cable Type | Cat5e |
|---|---|
| Finish | Powder Coat |
| Mod Jack Wiring | 8P8C |
| Termination | Phosphor bronze alloy. 24kt Hard Gold (50 microinch plating) over 100 microinches nickel for 700 insertion cycles/port |
| Input Plug Type | RJ45 Male |
| Color | Grey |
|---|---|
| Footprint | Single Bay |
| Pair Count | 4 |
| Type | Network Interface |
Listing Agencies/Third Party Certifications
| RoHS | Yes |
|---|
| UN SPSC | 43223309 |
|---|
Assembly/Installation Information
| Installation Tips | On-Q Palm Tool (P/N 364378-01) recommended to aid with punchdown operation |
|---|
| Mounting Hardware Included | Plungers/Grommets |
|---|
