On-Q CO1110 10x8 Combo Module IDC with RJ31X CO1110
- MPN: CO1110
- UPC: 804428066880
- PPN: P-S-CO1110
- UNSPSC: 43222819
CAD
$94.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

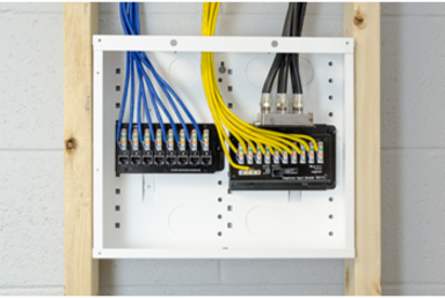

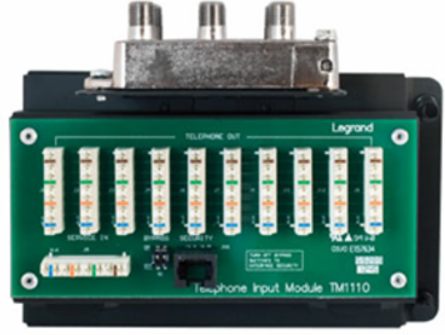

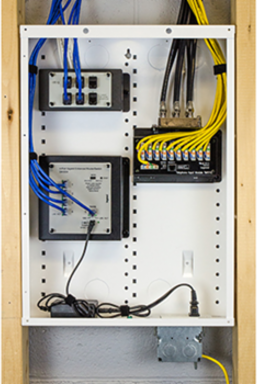

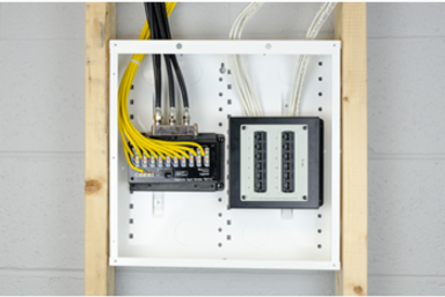

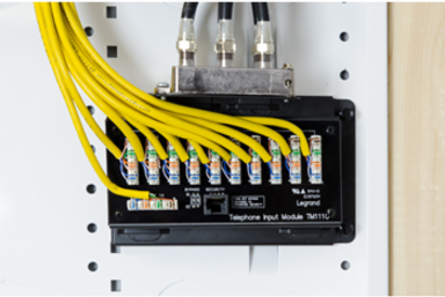

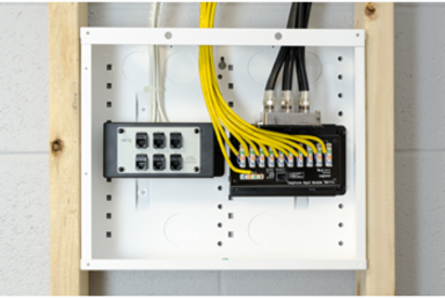

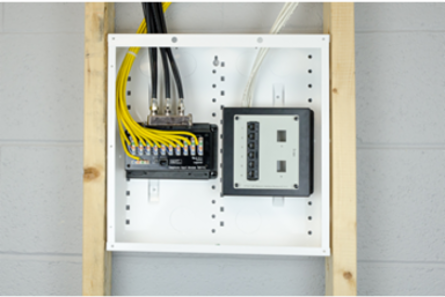

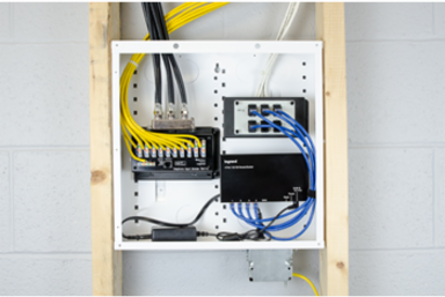

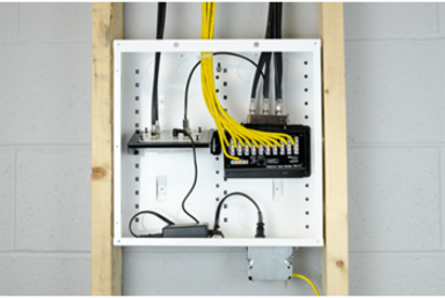

The 10x8 combo distributes up to 4 incoming telephone lines (110 IDC Punchdown) to 10 locations, and 1 GHz video to eight locations. The innovative mounting bracket includes a detachable platform for the coax splitter, allowing easy access to all termination ports during installation. The platform attaches securely to create a compact form factor that takes up minimal space in the enclosure.
Features
- Eight way, 1 GHz passive digital HDTV cable splitter
- Coaxial splitter is compatible with existing and future networks such as VoIP and DOCSIS 3.0
- 10 way, 4-line 110 IDC Punchdown telecom module
- Includes RJ31X line seizure port for security installations
- Mounting infrastructure included
- UL listed
Documentation & Downloads
Specifications
Dimensions
| Height (Metric) | 12.7 cm |
|---|---|
| Length (Metric) | 7.9 cm |
| Width (Metric) | 15.2 cm |
| Product Weight (US) | 1.53 pounds |
| Height (US) | 5" |
|---|---|
| Length (US) | 3.1" |
| Width (US) | 6 in |
Technical Information
| Material | 18 Gauge Cold Rolled Steel |
|---|---|
| OhmValue | Splitter |
| Receptacle Type | IDC(10), F Connector(8), RJ31X(1) |
| Mounting | Enclosure |
|---|---|
| Operating Temperature (Celsius) | -40°C to 60°C |
| Number Of Receptacles | 19 |
General Info
| Cable Type | Cat 5, Cat 5e, Cat 6, Coaxial |
|---|---|
| Connection Type | F Connector, RJ31X |
| Surge Protected | Splitter |
| Color | Black |
|---|---|
| Type | Telecom/Video Module |
Listing Agencies/Third Party Certifications
| UL Standard | Yes |
|---|
| UN SPSC | 43222819 |
|---|
