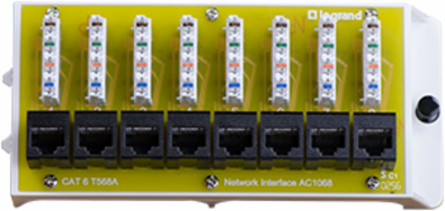

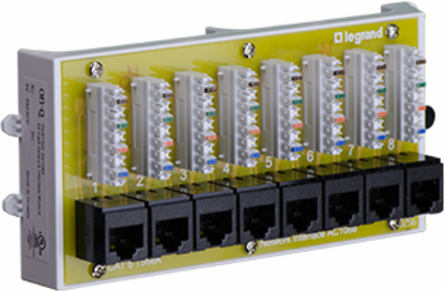

On-Q AC1068 8 Port Cat6 Network Interface Module AC1068
- MPN: AC1068
- UPC: 804428432692
- PPN: P-S-AC1068
CAD
$68.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AC1068 module is designed to connect your Router / Switch to wired networking locations throughout the home. Eight front-mounted 110-IDC punchdown terminals and RJ-45 connectors allow for easy configuration of the home network with patch panel simplicity. The network interface module is UL listed and exceeds TIA/EIA 568-C.2 industry standards.
Features
- Supports punchdown termination of up to 8 Cat6 data lines for easy interface with the home network
- Provides connectivity for ethernet connected devices like computers, TV's, gaming systems and network streaming devices
- Easy access to front mounted 110-IDC Punchdown terminals and RJ45 Jacks
- Module mounts in all On-Q structured wiring enclosures
- Supports termination using T568A wiring standard, is UL listed and exceeds TIA/EIA 568-C.2 industry standards
Documentation & Downloads
Specifications
Technical Information
- Mounting
- Tabs / Plungers & Grommets
- Supported Standards
- TIA/EIA 568-C.2
Operating Temperature (Celsius)0°C - 50°C
Dimensions
- Depth (Metric)
- 38.1mm
- Height (Metric)
- 161.9mm
- Width (Metric)
- 69.9mm
- Overall Dimensions (Metric)
- 161.9mm H x 69.9mm W x 38.1mm D
- Primary Packaging Weight (Metric)
- 0.200kg
Depth (US)1.5"
Height (US)6.41"
Width (US)2.9"
Overall Dimensions (US)6.41" H x 2.9" W x 1.5" D
Product Weight (US)0.363lbs
Construction Information
- Material 4
- Metal Bracket with Printed Circuit Board
Installation LocationOn-Q Enclosure (Metal & Plastic)
General Info
- Cable Type
- Cat 6
- Number Of Ports
- 8
- Termination
- 110 IDC Punchdown / RJ45 Connectors - T568A Wiring
ColorBlack/Yellow
Performance CategoryCat6
Listing Agencies/Third Party Certifications
- UL Standard
- CAN/CSA C22.2 No. 182.4, Plugs, Receptacles and Connectors for Communication Systems; UL 1863, Communications-Circuit Accessories
