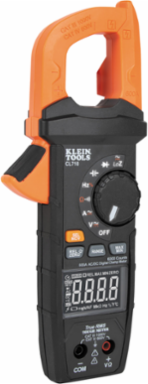

Klein Tools CL710 600A AC/DC Auto-Ranging TRMS Clamp Meter
- MPN: CL710
- UPC: 092644694493
- PPN: KLT-CL710
- UNSPSC: 41113678
CAD
$164.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Klein Tools CL710 Clamp Meter delivers accurate measurements across AC/DC current, voltage, resistance, continuity, frequency, and capacitance, all with True RMS precision. It features diode testing and a Low Impedance (LoZ) mode to eliminate ghost voltages. The clamp features NCV detection with escalating audio-visual alerts the closer to the voltage source. The transflective reverse-contrast display and lighted dial ensure visibility in any lighting; a reliable tool for diverse applications.
Features
- Clamp meter with True RMS provides accurate and reliable measurements across various applications
- Measures AC/DC voltage, AC/DC current, resistance, diode test, continuity, capacitance, and frequency/duty cycle

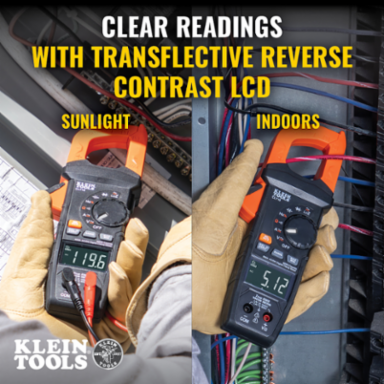

- Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments

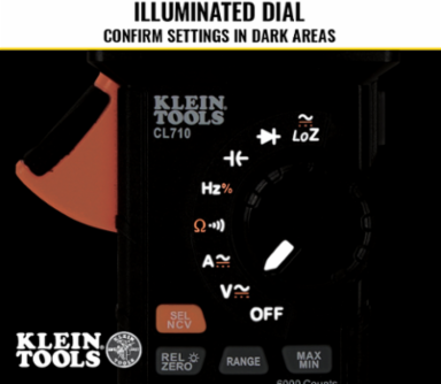

- Illuminated dial ensures clear visibility and easy reading, even in low-light environments
- Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Durable Clamp Meter is rated IP40 for ingress protection and withstands drops up to 6.6 feet (2 m)

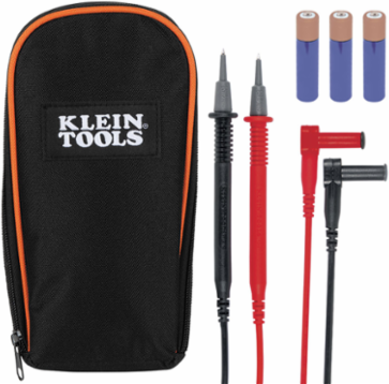

- Includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
- Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb

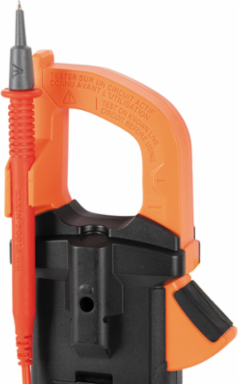

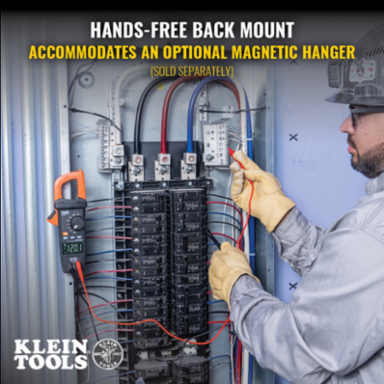

- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
- Transflective Reverse-Contract Display; Lighted Dial; Built-in Lead Holder
Documentation & Downloads
Specifications
Key Specifications
- Ohms
- 60MΩ Resistance (60MΩ Resistance)
- Overall Width
- 3.47 Inch (8.8 cm) (3.47 Inch) (8.8 cm)

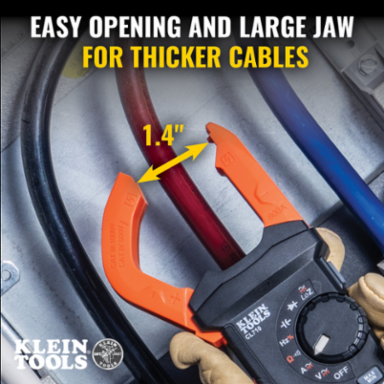

- Jaw Size
- 3.6 cm (1.4 Inch) (3.6 cm) (1.4 Inch)
- Standard
- CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
- Type
- Pro Clamp Meter
- Display
- Transflective Reverse-Contrast with 6000 Count LCD
- Functions
- AC/DC Voltage, AC/DC Current, Resistance, Audible Continuity, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Min/Max Value, Rel/Zero, Data Hold Capability
- Batteries
- 3 x AAA
- Auto-Power Off
- Yes
- Material
- ABS/Electronics
- Capacitance
- 6000µF
- DC Micro-Amp
- No
- Included
- Clamp Meter; Right-Angle Input Test Leads; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
- Auto Ranging
- Yes
- Height
- 1.1800 in
- Depth
- 9.0100 in
Overall Height4.2 cm (1.65 Inch) (4.2 cm) (1.65 Inch)
Overall Length23 cm (9.06 Inch) (23 cm) (9.06 Inch)
AC Voltage1000V
Frequency10Hz - 60 kHz
Temperature Range–
ApplicationVariety of Electrical Diagnostic and Troubleshooting Applications
AccuracySee Instructions
DC Voltage1000V
Voltage1000V AC; 1000V DC
Drop Protection6.6' (2 m)
Ingress ProtectionIP40
Current600A
DC Polarity IndicatorYes
TRMSYes
Width3.4700 in
Weight0.8000 lbs
