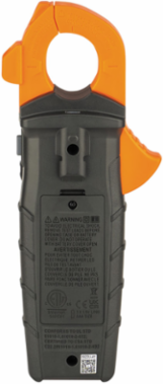

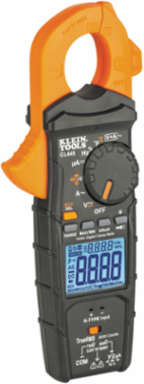

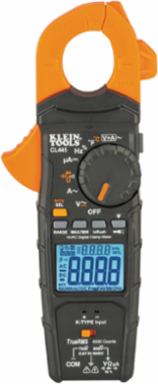

Klein Tools CL445 HVAC TRMS Clamp Meter, 600A Current, 750V AC/600V DC, -148° to 1832°F Temperature Range
- MPN: CL445
- UPC: 092644693786
- PPN: KLT-CL445
- UNSPSC: 41113654
CAD
$150.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

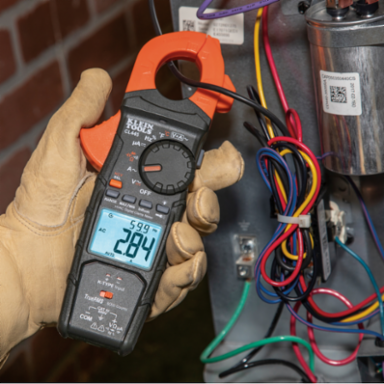

Klein Tools CL445 Clamp Meter is an advanced HVAC clamp meter with automatically ranging true root mean square (TRMS) for maximum accuracy. The meter measures AC current, inrush current, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, temperature, diodes, and more. This Digital Clamp Meter can simultaneously measure current and voltage, has a built-in worklight and comes with right-angle input test leads, push-on alligator clips, K-Type thermocouple, storage pouch, instructional manual, and 3 x AAA batteries.
Features
- CL445 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
- Digital clamp measures 600 A AC current and inrush current
- Test leads measure 750V AC/600V DC voltage, DC micro amp, resistance, continuity, frequency, duty-cycle, capacitance, and diode tests

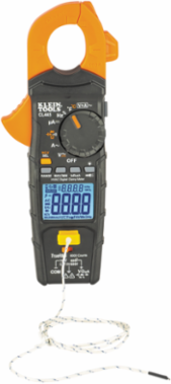

- K-Type thermocouple port for measuring temperature from -148 to 1832-Degree Fahrenheit (-100 to 1000-Degree Celsius)
- Detect AC current with non-contact voltage tester integrated into the clamp jaw

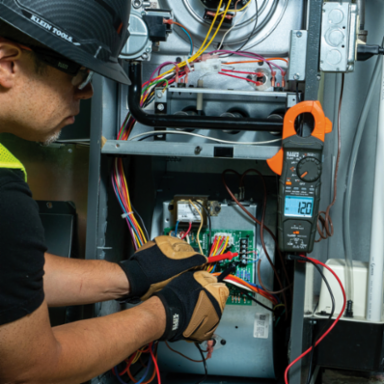

- Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
- Dedicated mode for capturing DC micro amp and inrush current

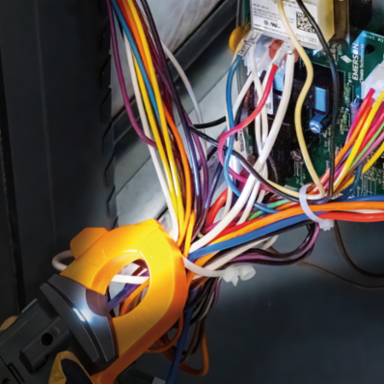

- Meter has a built-in worklight to illuminate in low light areas
- CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating

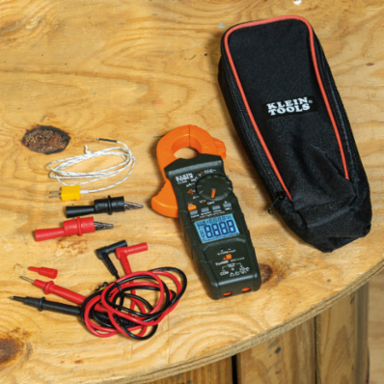

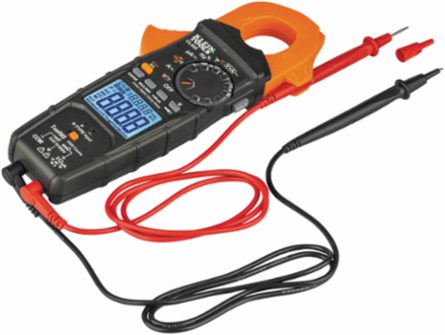

- Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
- Can be used with Magnetic Hanger (Cat. No. 69417, sold separately) for hands free operation
- Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; V + A Simultaneously Displayed; Built-in Worklight
Documentation & Downloads
Specifications
Key Specifications
- DC Polarity Indicator
- Yes
- Auto-Power Off
- Yes
- AC Voltage
- 750V
- Ohms
- 60MΩ Resistance
- Current
- 600A
- Voltage
- 750V AC; 600V DC
- Display
- 6000 Count LCD
- Capacitance
- 6.000mF
- Application
- Measures AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Continuity, Frequency, Capacitance, Temperature, Diodes, and More
- Frequency
- 60 kHz
- Accuracy
- See Instructions
- Overall Width
- 3.77 Inch (9.6 cm)
- Jaw Size
- 3.2 cm (1.25 Inch)
- Width
- 3.7600 in
- Weight
- 0.7880 lbs
Batteries3 x AAA
MaterialABS/Electronics
IncludedClamp Meter; Right-Angle Input Test Leads; Push-On Alligator Clips; K-Type Thermocouple; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
StandardCAT IV 600V, CAT III 750V, Class 2, Double Insulation Safety Rating
DC Voltage600V
TypeHVAC TRMS Clamp Meter
Drop Protection6.6' (2 m)
Temperature Range-148° to 1832°F (-100° to 1000°C)
DC Micro-Amp600µA
FunctionsTRMS, AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Audible Continuity, Frequency, AC Voltage + AC Amperage, Capacitance, Temperature, Non-Contact Voltage Testing, Diodes, Min/Max, Data Hold Capability
Overall Height4 cm (1.59 Inch)
Overall Length23.5 cm (9.24 Inch)
Height1.5900 in
Depth9.2400 in
