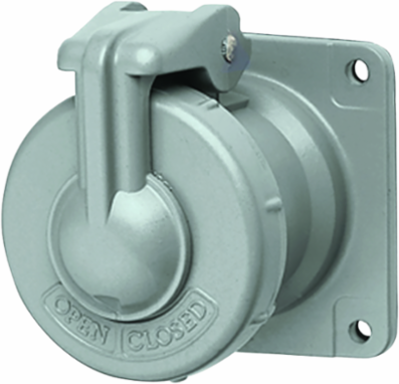

Killark VR6034 60A 3 Pole 4 Wire Receptacle - Pin & Sleeve, 600 VAC, Type 4X, 4.5 Inch x 4.25 Inch
Killark VR6034 60A 3 Pole 4 Wire Receptacle - Pin & Sleeve, 600 VAC, Type 4X, 4.5 Inch x 4.25 Inch
- MPN: VR6034
- UPC: 783936078984
- PPN: HBL-VR6034
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$576.60/ EA
Description
60A 3 Pole 4 Wire Receptacle - AT Type
Features
- Patented “Breech-Lock” cap serves as both flip lid and screw cover.
- Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Boxes come with a green grounding screw.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Specifications
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- US
- Height
- 4.66 in
- Voltage Rating
- 600 VAC;250 VDC
- Width
- 4.25 in
- Application
- Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
- Frequency Rating
- 50-400 Hz
- Style
- Style I
- Class Code
- D35
- Freight Class Code
- 06168002
- MSDS Flag
- No
- Material
- Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
- Base Unit of Measure
- EA
Harmonization Code8536694020
Dimensions4.5 in x 4.25 in x 4.66 in
Length4.5 in
Weight2.61 lb.
Amperage Rating60 A
Finish TypeBaked Powder Epoxy/Polyester Finish
Number Of Wires3
TypePin & Sleeve
Description - Invoice60A 3W4P RECEPT ASSY. AT
Image Actual Or RepresentativeA
Sub Class CodeD35D260
SeriesVersaMate Series
Carton - SCC-14 Next Lower Level Sub Pack00783936078984
Certifications
