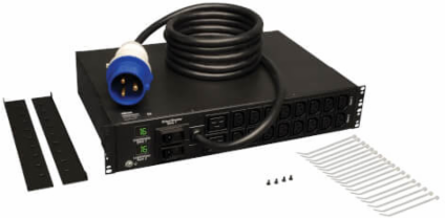

Tripp Lite PDUMH32HV 7.4kW Single-Phase Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12ft Cord, 2U Rack-Mount, TAA
Tripp Lite PDUMH32HV 7.4kW Single-Phase Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12ft Cord, 2U Rack-Mount, TAA
- MPN: PDUMH32HV
- UPC: 037332159045
- PPN: TRP-PDUMH32HV
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$851.25/ EA
Description
7.4kW Single-Phase Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12ft Cord, 2U Rack-Mount, TAA
Features

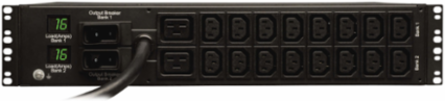

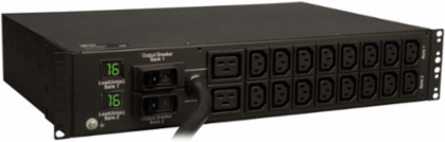

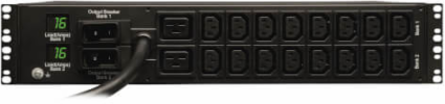

- Metered single phase 32A 230V 2U horizontal rackmount PDU
- Set of 2 current meters reports current in amps for each output load bank

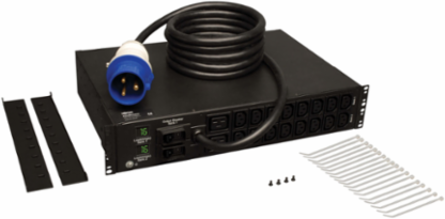

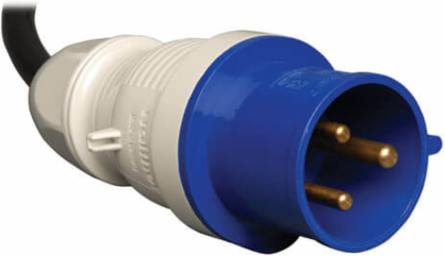

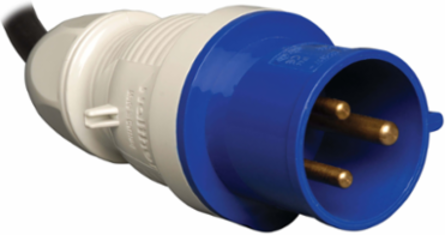

- Attached 12 ft. / 3.6m cord with IEC-309 32A (2P+E) input plug
- 18 total 230V outlets (2 C19, 16 C13)

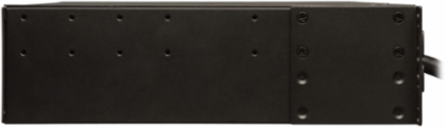

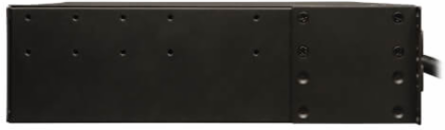

- Reversible housing, 12.5 in. / 31.75cm depth
- TAA Compliant
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to CE (IEC 60950-1), UL, CSA, Class A, RoHS compliant, TAA Compliant
Physical
- Form Factors Supported
- 2U rackmount
- Minimum Required Rack Depth (inches)
- 16
- Shipping Dimensions (hwd / in.)
- 7.80 x 16.80 x 19.30
- Unit Dimensions (hwd / in.)
- 3.5 x 17.5 x 12.5
Material of ConstructionMetal
PDU Form FactorHorizontal (2U)
Shipping Weight (lbs.)14.70
Unit Weight (lbs.)13.7
User Interface, Alerts & Controls
- Front Panel LCD Display
- Set of 2 digital meters continuously report output current for breakered load bank; Bank 1 (Upper row of 9 outlets), Bank 2 (Lower row of 9 outlets)
Switchesn/a
Input
- PDU Input Voltage
- 230
- Maximum Input Amps
- 32
- Input Phase
- Single-Phase
Recommended Electrical Service32A 230V
PDU Plug TypeIEC-309 32A BLUE (2P+E)
Input Cord Length (ft.)12
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (16) C13; (2) C19
- Overload Protection
- Two 20A circuit breakers protect 9 outlets each
Output Capacity Details7.4kW (230V) / 32A total capacity / 16A max per breakered outlet bank; 16A max per C19 outlet; 10A max per C13 outlet
Output Nominal Voltage230
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity5 to 95% non-condensing
Overview
- UPC Code
- 037332159045
PDU TypeMetered
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
