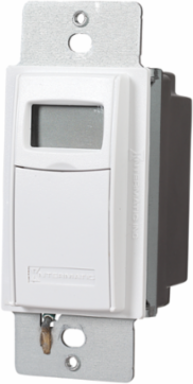

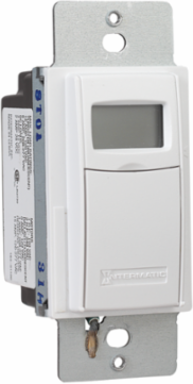

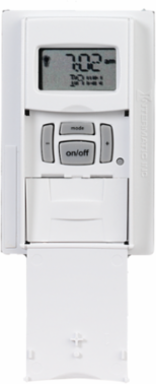

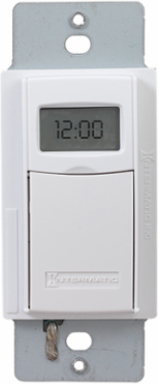

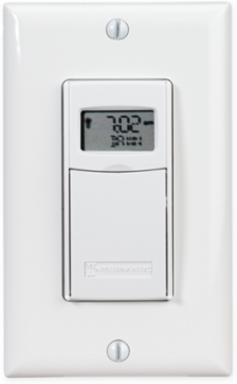

Intermatic ST01 7-Day Heavy-Duty Programmable Timer, 120-277 VAC, 15A, White
- MPN: ST01
- UPC: 078275127562
- PPN: INT-ST01
- UNSPSC: 39122208
CAD
$93.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Highly versatile heavy-duty timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features
- Versatile 7-day programmable schedules with up to 40 ON/OFF events.
- Astronomic clock feature determines dawn and dusk times.
- Automatic daylight saving time (DST) adjustment.
- Random mode varies ON/OFF schedule to provide a "lived-in" appearance.
- Single or 3-way switch compatible. No neutral wire connection enables easy retrofitting and quicker installation.
- Incandescent/fluorescent/CFL/LED compatible.
- Isolated switch allows timer to be used with any load type, including AC and DC loads.
- Replaceable CR2 lithium battery provides up to three years of operation.
- Decorator switch plate not included.
- User-programmable countdown plus 2-hour countdown override, ideal for meeting California Title 24 commercial exterior lighting manual override requirement.
Documentation & Downloads
Specifications
Additional
| Voltage | 120-277 VAC, 50/60 Hz |
|---|---|
| Maximum Load Handling Capability | 15A |
| Ballast Fluorescent Load | 8A @ 120V; 4A @ 208-277V |
| DC Loads | 4A @ 12VDC; 2A @ 28VDC |
| Inductive Load Ratings | 8A @ 120V, 50/60 Hz; 4A @ 208-277V, 50/60 Hz |
| Operating Temperature Range | 32-104 F (0-40 C) |
| Length | 4.125 in |
| Depth | 1.813 in |
| Color | White |
| Battery Type | CR2 Lithium |
| Maximum ON/OFF Events | 40 |
| Load Compatibility | Incandescent, Fluorescent, CFL, LED, AC, DC |
| Astronomic Clock Feature | Yes |
| Wall Plate Configuration | Single-Gang |
| Other Certifications | Title 20, Prop 65 Compliant |
| Amperage | 15A |
|---|---|
| Tungsten Load | 1800W @ 120V; 1248-1662W @ 208-277V |
| Electronic Ballast LED Load | 5A @ 120V; 2A @ 277V |
| Motor Load Ratings | 1 HP @ 120V; 2 HP @ 240V |
| Resistive Heater Load | 15A, 120-277 VAC |
| Timer Type | 7-Day Programmable |
| Width | 1.75 in |
| Weight | NA lbs |
| Country of Origin | Thailand |
| Battery Life | 3 Years |
| Switch Compatibility | Single or 3-Way |
| Neutral Connection Required | No |
| Automatic Daylight Saving Time Adjustment | Yes |
| CSA Certification | cCSAus |
