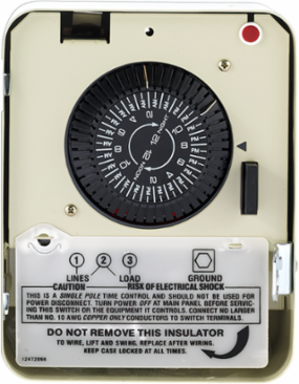

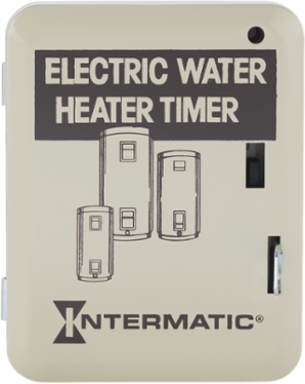

Intermatic WH21 Electric Water Heater timer, 208-250VAC, 60Hz, SPST, 25A

Electric Water Heater timer, 208-250VAC, 60Hz, SPST, 25A - https://media.province-electric.com/1069/auto_mfr_template/medium/5b1c47bd0ce30e1e6bda40cc4576bb88452ba51c-medium.png

Electric Water Heater timer, 208-250VAC, 60Hz, SPST, 25A

Electric Water Heater timer, 208-250VAC, 60Hz, SPST, 25A

Intermatic WH21 Electric Water Heater timer, 208-250VAC, 60Hz, SPST, 25A

MPN: WH21
UPC: 078275007024
PPN: INT-WH21
UNSPSC: 39122208

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$135.59/ EA

Loading add to cart quantity...

Description

With the easy-to-set push pin style levers, these time switches allow for basic control of electric water heaters. These time switches offer a minimum ON/OFF time of 30 minutes, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.

Features

Two sets of ON/OFF trippers.
Enables shifting electricity use into off-peak hours to reduce energy costs.
Convenient external override switch.
Up to 12 ON/12 OFF events.
30-minute switching time.
External override push button.
SPST (Single-Pole Single-Throw).
25 A resistive load, 208-250 VAC, 60 HZ.
#14-10 gauge wire size.

Specifications

Specifications

Input Voltage Rating Range(s): 208-250 VAC, 60 Hz

Color: Gray

Marketing Description: With the easy-to-set push pin style levers, these time switches allow for basic control of electric water heaters. These time switches offer a minimum ON/OFF time of 30 minutes, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.

Width: 5.25 in

Country of Origin: Mexico

Warranty Period1-Year limited

ApplicationsAgriculture Feeders;Greenhouse Misting Control;Water Heater Control

Height6.75 in

Depth3.25 in
