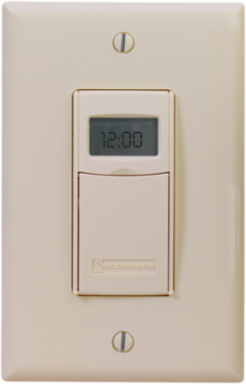

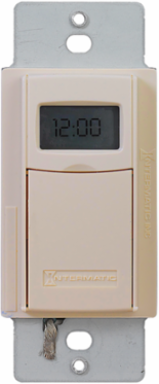

Intermatic ST01A 7-Day Heavy-Duty Programmable Timer, 120-277 VAC, Light Almond
- MPN: ST01A
- UPC: 078275127579
- PPN: INT-ST01A
- UNSPSC: 39122208
CAD
$93.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Highly versatile heavy-duty timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features
- Versatile 7-day programmable schedules with up to 40 ON/OFF events.
- Astronomic clock feature determines dawn and dusk times.
- Automatic daylight saving time (DST) adjustment.
- Random mode varies ON/OFF schedule to provide a "lived-in" appearance.
- Single or 3-way switch compatible. No neutral wire connection enables easy retrofitting and quicker installation.
- Incandescent/fluorescent/CFL/LED compatible.
- Isolated switch allows timer to be used with any load type, including AC and DC loads.
- Replaceable CR2 lithium battery provides up to three years of operation.
- Decorator switch plate not included.
- User-programmable countdown plus 2-hour countdown override, ideal for meeting California Title 24 commercial exterior lighting manual override requirement.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 120-277 VAC, 50/60 Hz
- Color
- Light Almond
- Marketing Description
- Highly versatile heavy-duty timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
- Width
- 1.75 in
- Country of Origin
- Vietnam
Warranty Period1-Year limited
ApplicationsAir Movement & Ventilation;Indoor Lighting Control;Outdoor Lighting Control
Height4.125 in
Depth1.813 in
