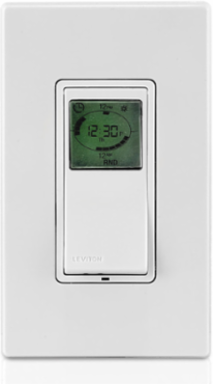

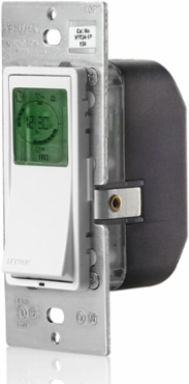

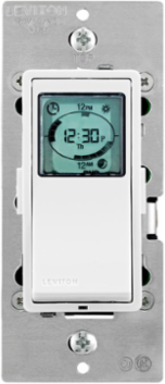

Leviton VPT24-1PZ Indoor Decora 24-Hour Programmable Timer 120VAC 15A Resistive/Inductive
- MPN: VPT24-1PZ
- UPC: 078477477557
- PPN: LEV-VPT24-1PZ
CAD
$56.34
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

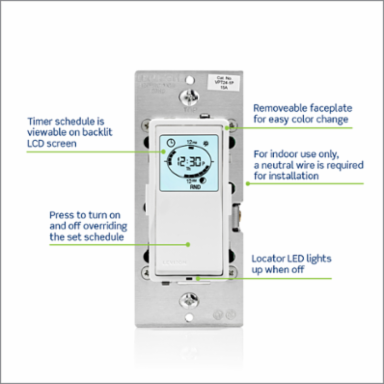

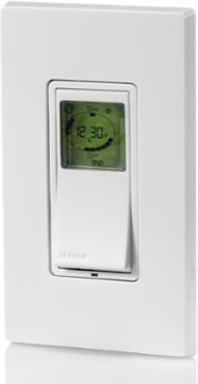

Indoor Decora 24-Hour Programmable Timer Switch, 120VAC, 60HZ, 1800W Incandescent/Halogen, 15A Resistive/Inductive, 5A LED, 1HP Motor, for single pole, 3-way or more locations when used with VP0SR companion switch. Astronomic clock, backlit LCD display, timer settings at-a- glance, green LED locator, neutral wire required – White with Ivory and Light Almond Faceplates Find your Longitude/Latitude Coordinates using any of the following services: What's My GPS Coordinates
Features
- Timer settings at-a-glance with large, back-lit display
- Flexibility to program weekdays, weekends or any combination of days
- Astronomical clock automatically adjusts to local sunrise/sunset times
- Automatic daylight savings time adjustment option

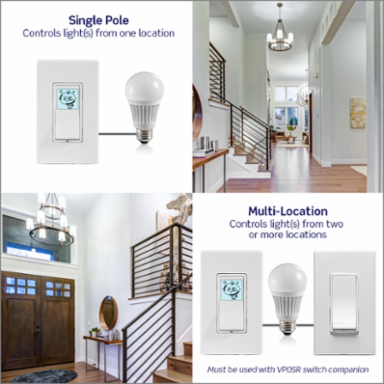

- Single pole, 3-way or more when used with the VP0SR matching or coordinating remote switch
- Rechargeable battery keeps time during temporary power outages

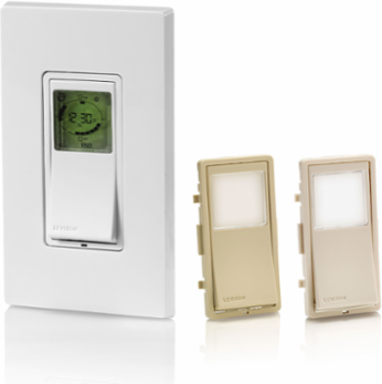

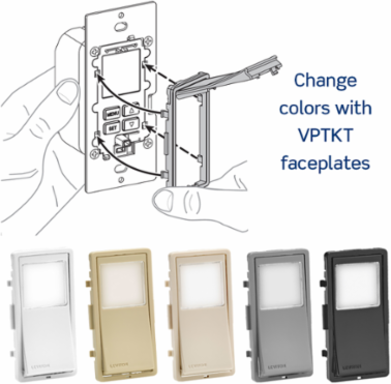

- White with ivory and light almond faceplates included
- Other color change kits available
- *Obtaining Longitude/Latitude Coordinates Find your longitude and latitude coordinates to enable the VPT24 to provide accurate local sunup/sundown times by clicking the link below and entering your home address. Use the first 2 digits (degrees) of the coordinates when programming the sunup/sundown feature. Ignore the (-) sign if one is shown in your coordinate results. Longitude/Latitude Coordinates Lookup

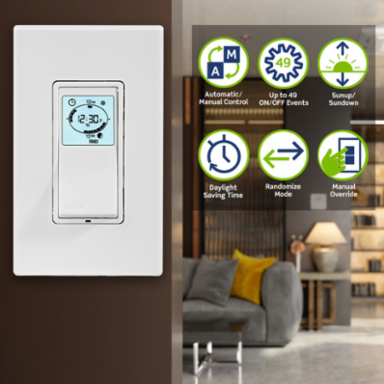

- CONVENIENCE AND IMPROVED SECURITY – schedule lights and fans to turn on and off at specific times, ensuring you arrive to a well-lit home and give the impression that someone is home when you’re away by randomizing the on/off times
- SAVE MONEY AND ENERGY – a small investment with a big impact. Reduce unnecessary energy consumption by replacing a wall switch with a programmable timer switch to ensure lights and fans are not left on
- FLEXIBLE SCHEDULING – customize routines to fit your lifestyle by setting up multiple schedules for any day of the week or different combinations of days. Set up to 49 ON/OFF events. The built-in astronomical clock automatically adjusts to local sunrise and sunset times based on your location, and the Daylight-Saving feature updates the time in spring and fall
- PRACTICAL – ideal for porch, patio and landscape lights, pool and pond pumps, interior lighting, ceiling fans and exhaust fans
- VERSATILE – works in single pole and multi-way applications when used with the VP0SR switch companion. 600W LED/CFL, 1800W Incandescent/Halogen, 15A Fluorescent Ballast, 1 HP Motor, Neutral wire required for installation. For indoor use only
Documentation & Downloads
Specifications
Additional
- Timer Type
- 24 Hour LCD Programmable
- Load Rating Incandescent/Halogen
- 1800W
- Load Rating Motor
- 1 HP
- Amperage
- 15A
- Pole
- 3
- Neutral
- Required
- Multi-Way Support
- Yes, with VP0SR remote switch
- Daylight Saving Adjustment
- Automatic
- Battery Backup
- Rechargeable battery for temporary power outages
- Operating Temperature Range
- 00C to 400C
- Relative Humidity
- 0% to 90% non-condensing
- California Title 24
- No
- Warranty
- 5-Year Limited
- Country of Origin
- China
Load Rating LED/CFL600W
Load Rating Fluorescent15A
Load Rating Resistive/Inductive15A Resistive
Horsepower1 HP
TypeElectronic
Wire3
Astronomical ClockYes, automatic sunrise/sunset adjustment
DisplayBack-lit LCD
ColorWhite, Ivory, Light Almond
Storage Temperature Range-200C to 600C
Standards and CertificationsUL/CSA, cCSAus Certified
RoHS CompliantFalse
Style NameDecora
