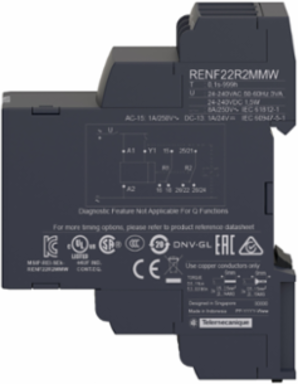

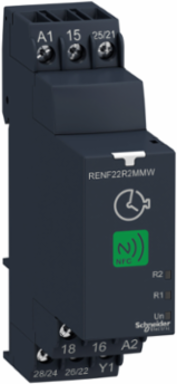

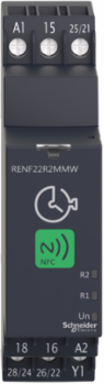

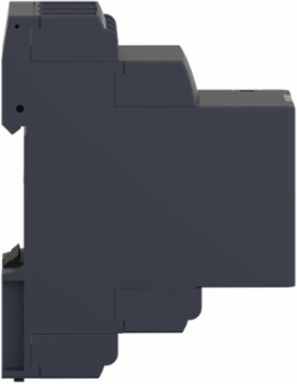

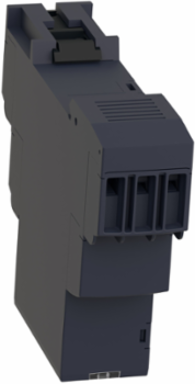

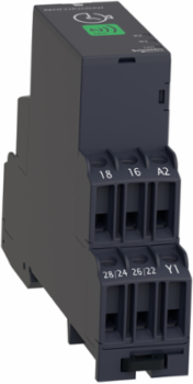

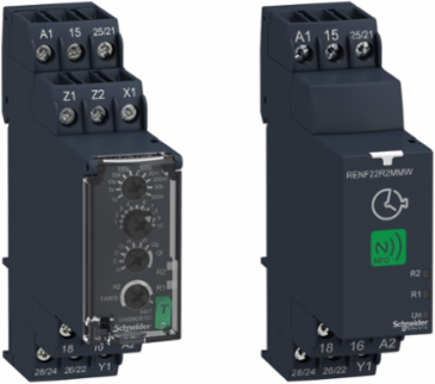

Schneider Electric RENF22R2MMW Harmony Timer Relay, 8A, 24-240V AC/DC, 0.05s-999h Delay

MPN: RENF22R2MMW
PPN: SCH-RENF22R2MMW

$146.54

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This modular timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, United States

Complementary Attributes

Line Rated Current	5 A
Maximum Operating Frequency	13.56 MHz
Maximum Switching Voltage	250 V
Minimum Switching Current	10 mA 5 V

Maximum Delay Response	100 ms
Maximum Switching Current	8 A
Minimum Pulse Duration	100 ms with load in parallel60 ms no-load

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contacts Type And Composition	timed contact, cadmium free1 C/O timed and instantaneous contact, cadmium free, 2 C/O
Dielectric Strength	2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply with, basic insulation
Function Available	A- Power on-delay relay-2 C/O, Ac- On-delay and off-delay relay w/ control signal-2 C/O, Ad- Pulse delayed relay w/ control signal-2 C/O, Ah- Pulse delayed relay (single cycle) w/ control signal-2 C/O, Ak- Asymmetrical on-delay and off -delay relay w/ control signal-2 C/O, At- Power on-delay relay w/ pause/summation (Y1)-2 C/O, B- Single interval relay w/ control signal-2 C/O, Bw- Double interval relay w/ control signal-2 C/O, C- Off-delay relay w/ control signal-2 C/O, D- Symmetrical flashing relay (starting pulse-off)-2 C/O, Di- Symmetrical flashing relay (starting pulse-on)-2 C/O, Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O, Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O, H- Interval relay-2 C/O, Ht- Interval relay w/ pause/summation (Y1)-2 C/O, Li- Asymmetrical flashing relay (starting pulse-on)-2 C/O, Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O, Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O, N- Safe-guard relay-2 C/O, O- Delayed Safe-guard relay-2 C/O, P- Pulse delayed relay w/ fixed pulse length-2 C/O, Pt- Pulse delayed relay w/ fixed pulse length and pause/summation-2 C/O, Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O, Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1)-2 C/O, TI- Bistable relay w/ control signal on-2 C/O, Tt- Retriggerable bistable relay w/ control signal on-2 C/O, W- Interval relay w/ control signal off-2 C/O, L- Asymmetrical flashing relay (starting pulse-off)-2 C/O
Repeat Accuracy	+/- 0.2 % 10 s...999 h, +/- 0.2 % 10 s...999 h, +/- 0.5 % 100 ms...10 s, +/- 0.5 % 100 ms...10 s, +/- 0.7 % 50...100 ms, +/- 0.7 % 50...100 ms+/- 0.2 % 10 s...999 h, +/- 0.2 % 10 s...999 h, +/- 0.5 % 100 ms...10 s, +/- 0.5 % 100 ms...10 s, +/- 0.7 % 50...100 ms, +/- 0.7 % 50...100 ms
Temperature Drift	+/- 0.05 %/°C, +/- 0.05 %/°C
Time Delay Type	- A- Power on-delay relay- Ac- On-delay and off-delay relay w/ control signal- Ad- Pulse delayed relay w/ control signal, - Ah- Pulse delayed relay (single cycle) w/ control signal, - Ak- Asymmetrical on-delay and off -delay relay w/ control signal, - At- Power on-delay relay w/ pause/summation (Y1)- B- Single interval relay w/ control signal, - Bw- Double interval relay w/ control signal- C- Off-delay relay w/ control signal- D- Symmetrical flashing relay (starting pulse-off), - Di- Symmetrical flashing relay (starting pulse-on), - Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1), - Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1), - H- Interval relay, - Ht- Interval relay w/ pause/summation (Y1)- Li- Asymmetrical flashing relay (starting pulse-on), - Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1), - Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)- N- Safe-guard relay, - O- Delayed Safe-guard relay, - P- Pulse delayed relay w/ fixed pulse length, - Pt- Pulse delayed relay w/ fixed pulse length and pause/summation- Qt- Star-delta relay (2 CO outputs w/ split common), - Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1) - TI- relay w/ control signal on, - Tt- Retriggerable relay w/ control signal on, - W- Interval relay w/ control signal off, - L- Asymmetrical flashing relay (starting pulse-off), power on-delay, on-delay and, pulse delay, asymmetrical on-delay and, interval, off-delay, symmetrical flashing, safe-guard, star-delta, asymmetrical flashing, bistable
Contacts Composition	2 C/O
Connections - Terminals	screw terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.0624854032
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 1.9843344154
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	RENF22
Housing Material	polycarbonate
Insulation Resistance	100 MOhm 500 V DC IEC 60664-1
Mounting Position	any position
Nominal Power	0.0002 mW
Operating Distance	10 mm
Overvoltage Category	III conforming to IEC 60664-1
Power Consumption In W	1.5 W 240 V DC0.6 W 24 V DC
Product Or Component Type	NFC timer relay
Reset Time	120 ms on de-energisation
Safety Reliability Data	MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C
Software Designation	Ecostruxure Industrial Device downloadable from Google Play store or Apple Store)
Supply Frequency	50...60 Hz +/- 5 %
Switching Capacity In Va	2000 VA
Total Lifecycle Carbon Footprint	64 kg CO2 eq.
Voltage Range	0.85...1.1 Un
Pep Code	ENVPEP2506028EN
Pep Verification Date	2018-04-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27

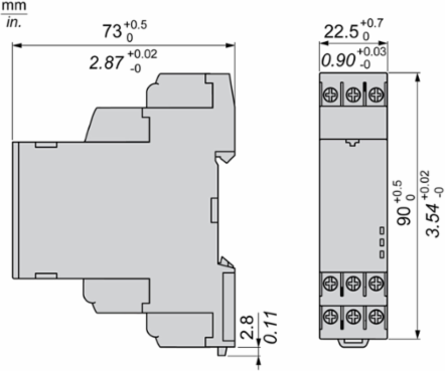

Width Nominal	22.5 mm
[Uimp] Rated Impulse Withstand Voltage	5 kV 1.2/50 µs IEC 60664-1
Nbr. Of Units In Pkg.	1
Take-back	No
Air Pollution (M3) Operational Energy Use [B6]	2660.064
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	224.0928
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	1077.408
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	156.96
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	156.96
Customs Code	8536490080

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Control Type	without test button, without test button
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, radiated emission class B conforming to EN 55022conducted emission class A conforming to EN 55022, electromagnetic field immunity test - test level: 3 V/m level 2 (1.4 GHz...2 GHz) conforming to IEC 61000-4-3, electromagnetic field immunity test - test level: 1 V/m level 1 (2...2.7 GHz) conforming to IEC 61000-4-3
Local Signalling	R2, amber LED blinking)timing in progressUn, green LED steady)power ON, R1, amber LED steady)relay energised, R2, amber LED steady)relay energisedpairing, green LED steady)communication statusUn, green LED fast blinking)diagnosis modeR1, amber LED blinking)timing in progress
Setting Accuracy Of Time Delay	+/- 1 % 1...999 h 25 °C, +/- 1 % 1...999 h 25 °C, +/- 1 % 1...999 h 25 °C, +/- 2 % 1...3600 s 25 °C, +/- 2 % 1...3600 s 25 °C, +/- 2 % 1...3600 s 25 °C, +/- 20 ms 100 ms...10 s 25 °C, +/- 20 ms 100 ms...10 s 25 °C, +/- 20 ms 100 ms...10 s 25 °C, +/- 30 ms 50...100 ms 25 °C, +/- 30 ms 50...100 ms 25 °C, +/- 30 ms 50...100 ms 25 °C+/- 1 % 1...999 h 25 °C, +/- 1 % 1...999 h 25 °C, +/- 1 % 1...999 h 25 °C, +/- 2 % 1...3600 s 25 °C, +/- 2 % 1...3600 s 25 °C, +/- 20 ms 100 ms...10 s 25 °C, +/- 20 ms 100 ms...10 s 25 °C, +/- 30 ms 50...100 ms 25 °C, +/- 30 ms 50...100 ms 25 °C
Tightening Torque	0.6-1 N.m IEC 60947-1, 5.3-8.8 lbf.in IEC 60947-1
Voltage Drift	+/- 0.2 %/V, +/- 0.2 %/V
Certificate Agency	CE, CSA, KC, UL, CCC, EAC, DNV-GL
Carbon Footprint Of The Distribution Phase [A4]	0.0133710823, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0005799028, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	62 kg CO2 eq., 61.80384
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2506028EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Creepage Distance	4 kV/3 IEC 60664-1
Electrical Durability	100000 cycles for resistive load, 8 A at 250 V, AC
Immunity To Microbreaks	10 ms
Mechanical Durability	10000000 cycles
Mounting Support	35 mm DIN rail conforming to IEC 60715
Number Of Functions	28
Operating System	Androidversion >= V7.0iOSversion >= V14.5
Power Consumption In Va	3-3 VA 240 V AC
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony Timer Relays
Returnability	Yes
Shock Resistance	15 gn not operating 11 ms IEC 60068-2-275 gn in operation 11 ms IEC 60068-2-27
Software Version	EIME 5.7.0.2
Sustainable Packaging	Yes
Time Delay Range	0.05 s...999 h
Vibration Resistance	20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Supply Voltage Num 3	24...240 V AC/DC
Database Version	2018-03
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 10 years with a 100% use rate, in compliance with French standard.
Functional-unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	126.144
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
[Uc] Control Circuit Voltage	24...240 V
[Us] Rated Supply Voltage	24...240 V AC/DC
Package Weight(Lbs)	103.635 g
Warranty (In Months)	18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	701.52
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	230.4288
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	1234.368
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	1077.408
Water Pollution (M3) Operational Energy Use [B6]	2550.24

Environment Attributes Main

Ambient Air Temperature For Operation	-20-60 °C, -20-60 °C
Directives	2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive, 2014/30/EU - electromagnetic compatibility
Take Back	No
China Rohs Regulation	X
Carbon Footprint	63.8646108037
Environmental Disclosure	ENVPEP2506028EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	NFC enabled mobile device
Relative Humidity	95-95 % 25-55 °C
Pep Verification Date	2018-04-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP40 housing: conforming to IEC 60529, IP40 front face: conforming to IEC 60529IP20 terminals: conforming to IEC 60529
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2506028EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2506028EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
