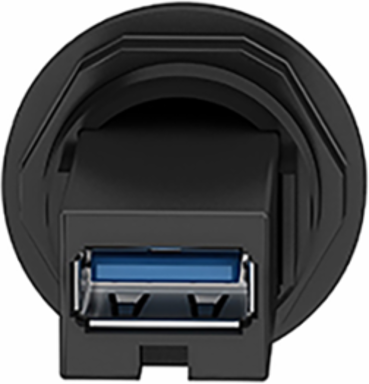

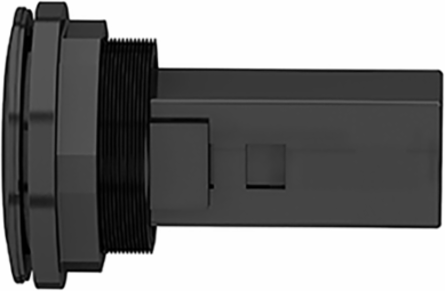

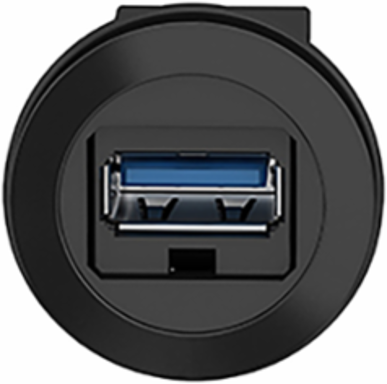

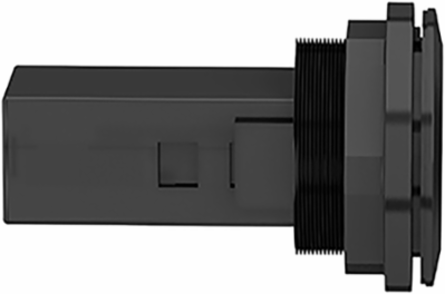

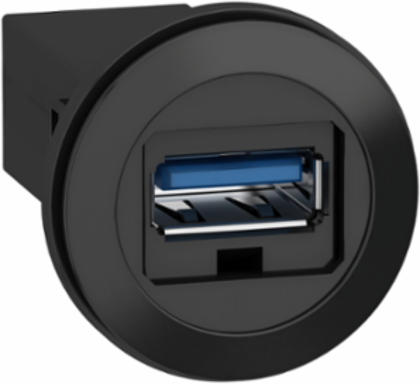

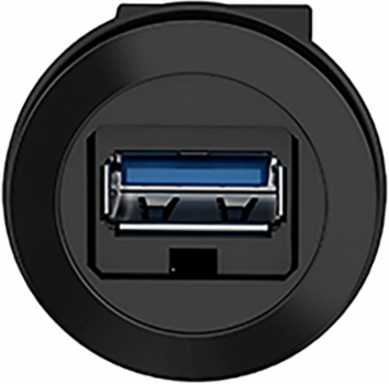

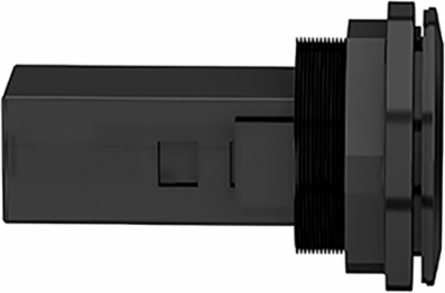

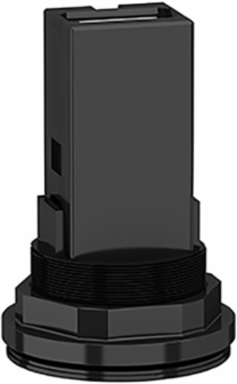

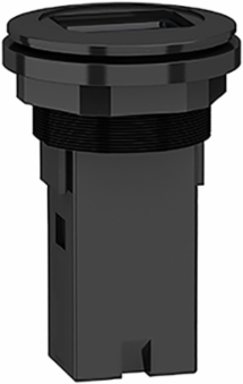

Schneider Electric XB5PUSB3 Harmony XB5 Panel Mounted USB Port, 22 mm, USB 3.0 Type A

MPN: XB5PUSB3
PPN: SCH-XB5PUSB3
UNSPSC: 43201552

$56.78

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB5, panel mounted USB port enables connection to your machine of USB devices. This panel mounted USB port provides a simple way to connect to your machine through standardized connectors, without opening the control cabinet doorIt is easily installed into standard 22mm diameter cut-outs. It provides an easily and safely access to your machine automation and controllers via a port on the door of the control cabinet. It is easily installed into standard 22mm diameter cut-outs.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Weight	21.58 g

Depth	44 mm

Complementary Attributes

Integrated Connection Type	USB 3.0 type A

Minimum Number Of Matings	1500 cycles

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Product Or Component Type	panel mounted USB port, panel mounted USB port
Certificate Agency	CSA, UL Listed
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.01781903616160075
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.1 kg CO2 eq., 0.14585504221468346
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	XB5P
Mounting Diameter	22 mm
Product Repair Index	A
Returnability	Yes
Shock Resistance	30 gn 11 ms 3 chocks in each direction X, Y and Z
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Database Version	2024-01
Height Nominal	28 mm
Nbr. Of Units In Pkg.	1
Product Repair Index Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Functional Unit Description	Harmony XB5 panel-mounted USB port enables easy connection of USB devices to your machine. It provides a simple and secure way to access your equipment through standardized connectors without the need to open the control cabinet door. Designed for convenience, this USB port can be quickly installed into standard 22 mm diameter cut-outs.
Functional Unit Unit	unit
Recyclability Potential In %	86

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Thickness	6-6 mm without protection cover, 1.5-5 mm with protection cover plastic, 1.5-5 mm with protection cover rigid plastic, 1.5-2.5 mm with protection cover metal
Carbon Footprint Of The Distribution Phase A4	0.018459907773291415, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0001225653640163969, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-06-25
Weee Scope	Out
Scope Perimeter	At least in Europe
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1645
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Bezel Material	plastic
Fixing Collar Material	plastic
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1
Software Version	v6.2.5-6
Tightening Torque	1.5 N.m
Vibration Resistance	5.35 gn15 min per axis
Data Source	extrapolated product
Width Nominal	28 mm
Customs Code	8536698000
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP20 front: conforming to IEC 60529, IP20 back: conforming to IEC 60529
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2510035EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2510035EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.182256551513592
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-10-18
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
