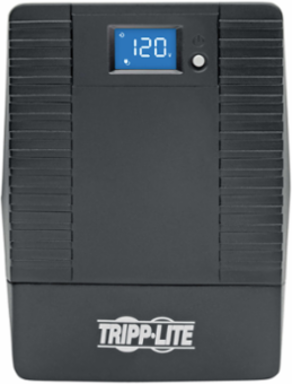

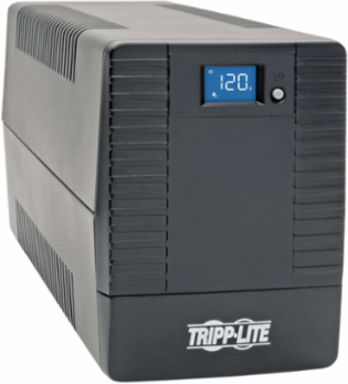

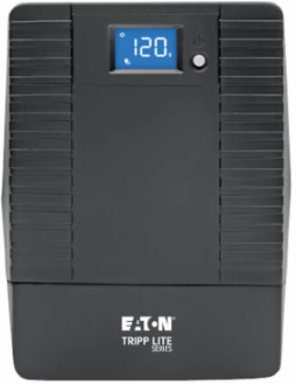

Tripp Lite OMNI700LCDT 700VA 350W Line-Interactive UPS with 6 Outlets - AVR, 120V, 50/60 Hz, LCD, USB, Tower
Tripp Lite OMNI700LCDT 700VA 350W Line-Interactive UPS with 6 Outlets - AVR, 120V, 50/60 Hz, LCD, USB, Tower
- MPN: OMNI700LCDT
- UPC: 037332213952
- PPN: TRP-OMNI700LCDT
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$313.89/ EA
Description
700VA 350W Line-Interactive UPS with 6 Outlets - AVR, 120V, 50/60 Hz, LCD, USB, Tower
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- AVR battery backup allows time to save files and safely shut down during blackouts
- 6 NEMA 5-15R outlets provide power to PC, home theater or digital signage equipment

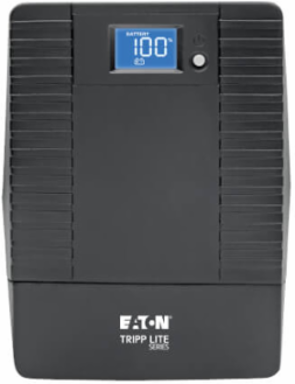

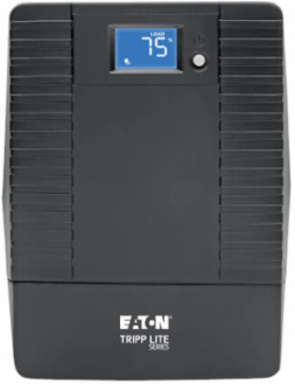

- Easy-to-read LCD touchscreen provides valuable voltage, load and battery data
- High >95% efficiency with low BTU ratings saves power and lowers your energy costs
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
- 700VA/350W/120V Battery Backup for PCs, Home Theater or Digital Signage
- Allows Time to Back Up Critical Files During a Blackout
- Connects Your Equipment to 6 NEMA 5-15R Outlets
- Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
- 316 Joules Fight Back Against Unexpected Power Surges
- Combats Electromagnetic Interference That Can Harm Equipment
- Easy-to-Read LCD Touchscreen Reports Real-Time UPS and Power Status
- HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
- Includes Power Protection for your Phone and Network Lines
- Tower Form Factor for Easy Placement in Your Workspace or Media Center
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 316
- UPS Dataline Suppression
- 1 line TEL/DSL or Ethernet
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 3.0 minutes (350w)
- DC System Voltage (VDC)
- 12
- Internal UPS Replacement Battery Cartridge
- RBC51
- Battery Replacement Description
- Replaceable internal battery (see manual)
- Lithium Batteries
- No
Half Load Runtime (min.)10.0 minutes (175w)
Battery Recharge Rate (Included Batteries)8 hours from 10% to 90%
Battery AccessIncludes bottom panel battery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsUL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION
Physical
- Installation Form Factors Supported with Included Accessories
- Tower
- Primary UPS Depth (mm)
- 345
- Primary UPS Width (mm)
- 122
- UPS Housing Material
- ABS
- UPS Power Module Weight (kg)
- 6.49
Primary Form FactorTower
Primary UPS Height (mm)160
Shipping Dimensions (hwd / in.)9.80 x 7.20 x 16.30
UPS Power Module Dimensions (hwd, in.)6.3 x 4.8 x 13.6
UPS Power Module Weight (lbs.)14.3
User Interface, Alerts & Controls
- Front Panel LCD Display

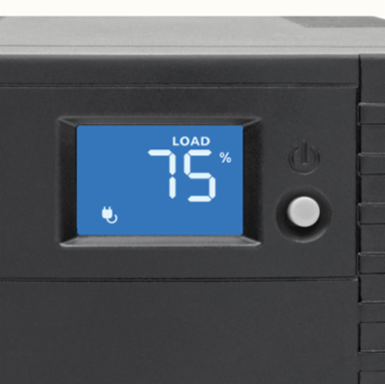

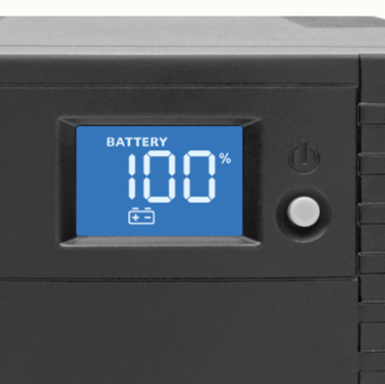

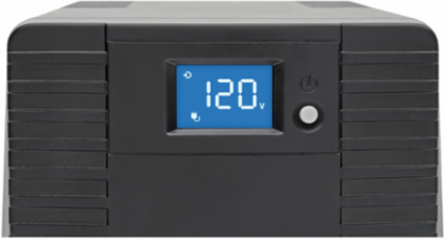

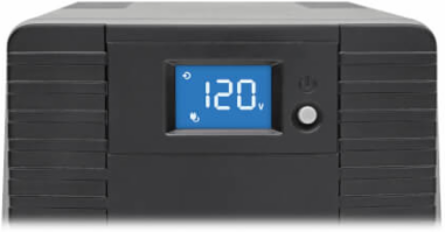

- LCD touchscreen reports input and output voltage, load percentage and battery charge level; Also reports overload and critical fault code screens (see manual)
- Audible Alarm
- Alarm reports low-battery, fault, overload and replace battery conditions; Alarm remains silent during battery mode operation until low-battery status occurs
SwitchesPower switch enables UPS on / off control
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
- Undervoltage Correction
- Input voltages between 89 and 108 are boosted by 14%
Overvoltage CorrectionInput voltages between 129 and 145 are reduced by 15%
Input
- Rated input current (Maximum Load)
- 10A

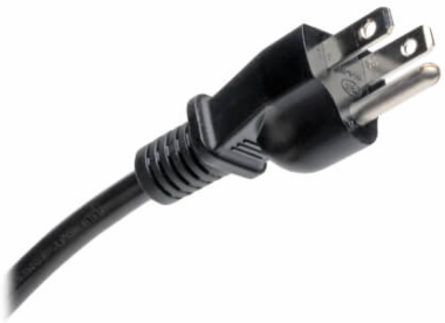

- UPS Input Connection Type

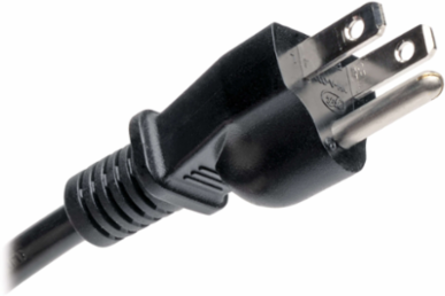

- 5-15P
- UPS Input Cord Length (ft.)
- 5
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported110V AC; 115V AC; 120V AC
Input Circuit Breakers10A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 700
- Nominal Voltage Details
- 120v nominal output in battery mode
- Frequency Compatibility Details
- Automatic frequency selection
- Output Voltage Regulation (Battery Mode)
- 120V (±10%)
- Hot-Swap PDU options
- PDUB15 (2U / 8 5-15R outlets)
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (6) 5-15R
Output Watt Capacity (Watts)350
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Line Mode)120V (+9% / -12%)

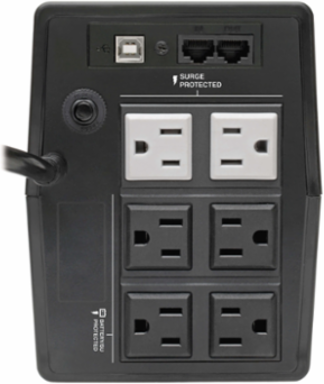

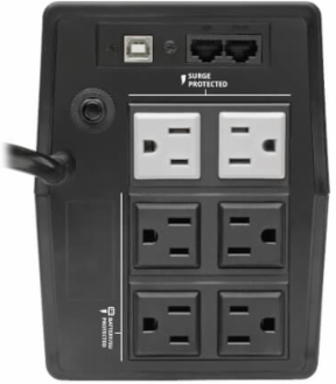

UPS Output Receptacles (Surge Suppression Only)4 UPS outlets, 2 surge-only outlets
Output AC Waveform (AC Mode)Sine wave
Nominal Output Voltage(s) Supported110V; 115V; 120V
Individually Controllable Load BanksNo
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in USB communications port, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications CableUSB cable included
Communications InterfaceUSB (HID enabled)
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- Up to 90%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- >95%
Storage Temperature Range+5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
AC Mode BTU / Hr. (Full Load)43
Overview
- UPC Code
- 037332213952
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesBattery Independent Restart
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$100,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 6 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 145
Low Voltage Transfer to Battery Power (Setpoint)89
