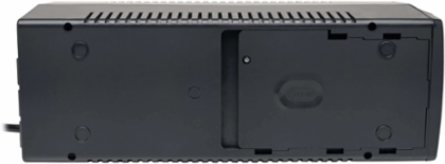

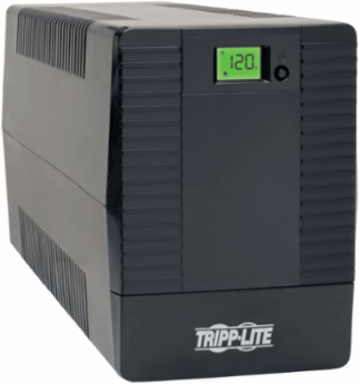

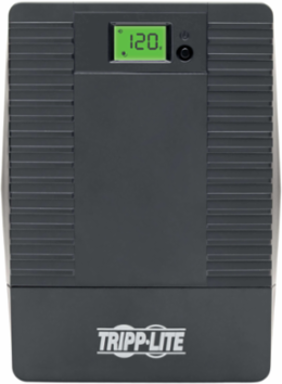

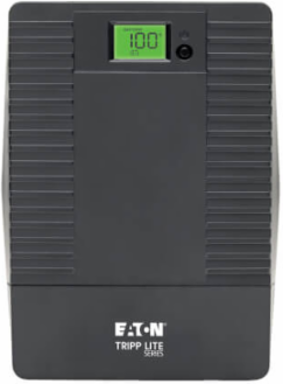

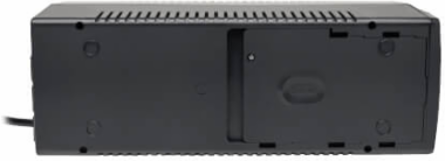

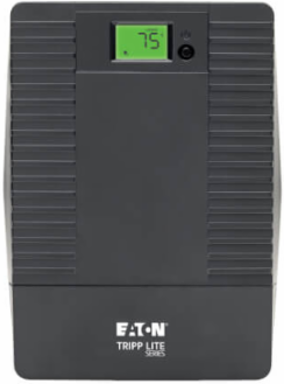

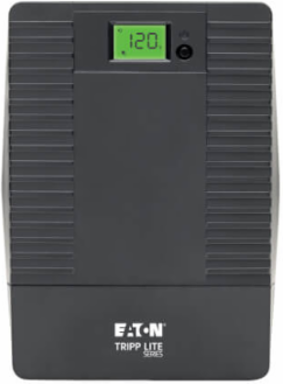

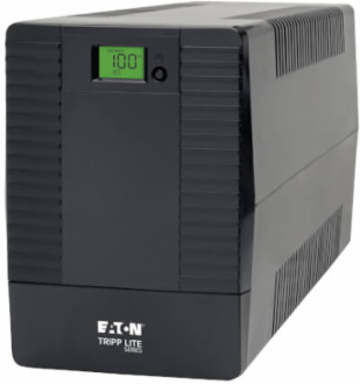

Tripp Lite SMART1500TSU 1440VA Line-Interactive UPS, 8 NEMA 5-15R Outlets, 1200W, AVR, Tower
- MPN: SMART1500TSU
- UPC: 037332214249
- PPN: TRP-SMART1500TSU
CAD
$776.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1440VA Line-Interactive UPS, 8 NEMA 5-15R Outlets, 1200W, AVR, Tower
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Maintains continuous 120V nominal output during brownouts and overvoltages
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- High >95% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
- 1440VA/1200W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
- Allows Time to Back Up Critical Files During a Blackout

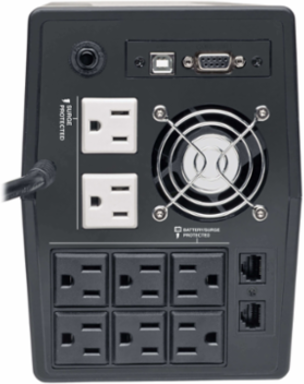

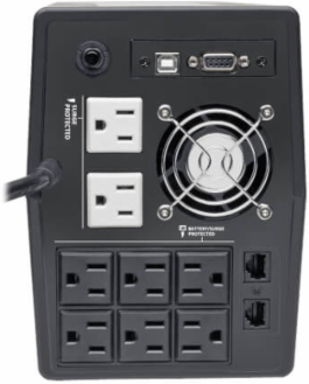

- 8 NEMA 5-15R Outlets Protect Your Connected Components
- Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
- Automatically Turns Back On After Power Is Restored
- Combats Line Noise That Can Harm Equipment
- Designed for High Efficiency to Help You Save Money and Protect the Environment
- Home-Friendly Silent Alarm and LCD Touchscreen Keep You Informed 24/7
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns
- Compact Housing Compatible with Easy Desktop Installation
Documentation & Downloads
Specifications
Additional
- Voltage
- 110V; 115V; 120V AC
- Input Current
- 12 A
- Recommended Electrical Service
- 15 A 120 V
- Output Volt Amp Capacity
- 1440 VA
- Output kVA Capacity
- 1.44 kVA
- Output AC Waveform (AC Mode)
- Pure sine wave
- Voltage Regulation Range
- Input 89-145 V; Output 120 V (+6%/-12%) line mode, ±10% battery mode
- Low Voltage Transfer to Battery Power (Setpoint)
- 89 V
- Half Load Runtime
- 6 min (600 W)
- Input Phase
- Single-Phase
- Dataline Suppression
- 1 line TEL/DSL or Ethernet
- Transfer Time
- 6 ms typical, 10 ms max
- Cold Start Support
- Yes
- Form Factor
- Desktop Tower
- Weight
- 32.2 lbs (14.61 kg)
- Operating Temperature Range
- 32 to 104 °F (0 to 40 °C)
- Relative Humidity
- 0 to 90%, non-condensing
- Battery Access
- Battery access door
- Connected Equipment Insurance
- $250,000 Ultimate Lifetime Insurance
Frequency50/60 Hz
Input Circuit Breaker15 A
Power Factor0.83
Output Watt Capacity1200 W
Output kW Capacity1.2 kW
Output AC Waveform (Battery Mode)PWM sine wave
High Voltage Transfer to Battery Power (Setpoint)145 V
Full Load Runtime1.5 min (1200 W)
Battery Recharge Rate8 hours (10% to 90%)
Surge Suppression Rating316 Joules
EMI / RFI Noise SuppressionYes
Efficiency Rating>95% (100% load)
Cooling MethodFan
Dimensions (H x W x D)7.5 x 5.5 x 15 in (191 x 140 x 381 mm)
Housing MaterialABS
Storage Temperature Range5 to 113 °F (-15 to 45 °C)
Battery ReplacementReplaceable internal batteries
UPS Certification DetailsUL1778, CSA, FCC Part 15 Category A, NOM, RETIE
