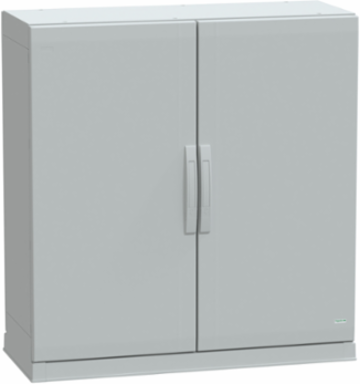

Schneider Electric NSYPLAZ10104G PanelSeT PLA 1000x1000x420mm Polyester Enclosure, IP54, IK10

MPN: NSYPLAZ10104G
PPN: SCH-NSYPLAZ10104G
UNSPSC: 39121324

$2994.78

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for durability and versatility, this floor-standing polyester enclosure from Schneider Electric is an ideal solution for various applications. With a robust construction reinforced with fiberglass, it offers an impressive IP54 rating for dust and water resistance, along with an IK10 impact protection rating, ensuring reliability in challenging environments. Measuring 1000x1000x420 mm, the enclosure features a solid front door that opens from either side, providing convenient access for maintenance and operation. Its thoughtful design includes a sealed top and open bottom, making it suitable for a range of installations while maintaining high standards of electrical insulation and fire resistance. This enclosure not only meets rigorous IEC standards but also emphasizes sustainability, making it a reliable choice for your electrical housing needs.

Features

Versatile floor-standing enclosure suitable for various applications.
Durable polyester reinforced with fiberglass for indoor and outdoor use.
Doors can be opened from both sides up to 120° for easy access.
Four-point lock with a 5mm double-bar insert for enhanced security.
High resistance to fire up to 960°C in compliance with standards.
Robust protection against impacts, dust, and water.
Class II electrical insulation for preventing electric shocks.
Operates efficiently in temperatures ranging from -35°C to 90°C.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	44000 g

Physical Attributes

Enclosure Nominal Height	1000 mm, 1000 mm
Color	Gray RAL 7035)

Enclosure Nominal Width	1000 mm, 1000 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 top part, 1 bottom part2 side part, 2 door, 2 rear panel, 1 plinth
Carbon Footprint Of The Distribution Phase A4	87.3541980789899, 87 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	14.822476853893278, 15 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-09-16
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Body Type	sealed top and open bottom part assembled with side parts
Device Short Name	PLAZ
Electrical Insulation Class	class II
Energy Efficiency Optimized	False
Lock Type	4 points lock, handle with 5 mm double bar insert
Number Of Doors	2
Product Name	PanelSeT PLA
Range	PanelSeT
Returnability	No
Sustainable Packaging	No
Door Type 1 Door Type	Solid
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Door Type	front, Solid
Carbon Footprint Of The End Of Life Phase C1 To C4	80 kg CO2 eq., 80.23822962770224
Carbon Footprint Of The Manufacturing Phase A1 To A3	160 kg CO2 eq., 159.8455080182939
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Opening Side	right and left 120 °)
Enclosure Mounting	floor-standing
Fire Resistance	960 °C IEC 62208
Material	polyester reinforced with fibreglass
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Removable Parts	door by hingesrear panel by fixing element
Software Version	v6.1
Total Lifecycle Carbon Footprint	342 kg CO2 eq.
Database Version	2023-02
Certificate Agency	Veritas
Customs Code	9403704031
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	6

Environment Attributes Main

Ambient Air Temperature For Storage	-35-90 °C, -35-90 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1105005EN
Ip Degree Of Protection	IP54 IEC 60529 plinth type open bottom)
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1105005EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	342.26041257887937
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
