Schneider Electric

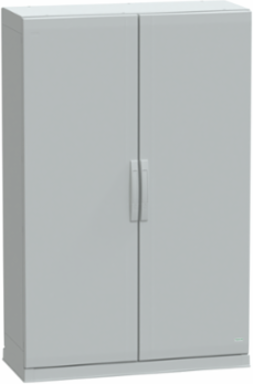

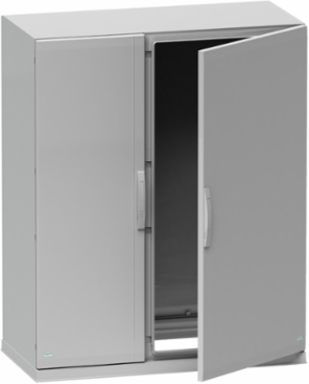

Schneider Electric NSYPLAZ15104G Thalassa PLA Floor Standing Polyester Enclosure 1500x1000x420mm IP54 IK10

Thalassa PLA Floor Standing Polyester Enclosure 1500x1000x420mm IP54 IK10
  • MPN: NSYPLAZ15104G
  • PPN: SCH-NSYPLAZ15104G

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$3548.77/ EA

    Description

    The Schneider Electric NSYPLAZ15104G Thalassa PLA Floor Standing Polyester Enclosure is designed to provide exceptional protection and versatility for various electrical applications. With its robust construction and an IP54 rating, this enclosure safeguards your electrical components against dust and water splashes, making it ideal for demanding environments. Its spacious dimensions of 1500x1000x420mm allow ample room for equipment, while the IK10 rating indicates high resistance to impact, ensuring durability even in harsh conditions. This enclosure is an excellent choice for those seeking a reliable and adaptable solution for their electrical installations.

    Specifications

    Fire Resistance
    960 °C IEC 62208
    Electrical Insulation Class
    Class II
    IP Degree of Protection
    IP54 IEC 60529 plinth type open bottom
    Door Type
    Plain front
    Lock Type
    4 points lock, handle with 5 mm double bar insert
    Enclosure Nominal Height
    1500 mm
    Enclosure Nominal Depth
    420 mm
    Color
    Grey RAL 7035
    Product Certifications
    Veritas
    Device Composition
    1 top part, 1 bottom part, 2 side parts, 2 doors, 2 rear panels, 1 plinth
    Accessibility For Operation
    Bottom, rear, front
    Removable Parts
    Door by hinges, rear panel by fixing element
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury Free
    Yes
    Device Short Name
    PLAZ
    Sustainable Offer Status
    Green Premium product
    Ambient Air Temperature for Storage-35 to 90 °C
    IK Degree of ProtectionIK10 IEC 62262 plain door
    Number of Doors2
    Door Opening SideRight and left 120°
    Enclosure MountingFloor-standing
    Enclosure Nominal Width1000 mm
    MaterialPolyester reinforced with fibreglass
    StandardsIEC 62208
    RangeThalassa
    Body TypeSealed top and open bottom part assembled with side parts
    Device ApplicationMulti-purpose
    Rohs Exemption InformationYes
    Reach RegulationContains Substances of Very High Concern above threshold
    China Rohs RegulationProduct out of China RoHS scope; substance declaration provided
    Environmental DisclosureENVPEP110505EN
    Circularity ProfileN/A
