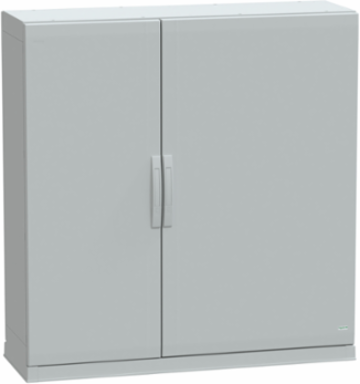

Schneider Electric NSYPLAZ12124G PanelSeT PLA Floor Standing Polyester Enclosure 1250x1250x420mm IP54 IK10

PanelSeT PLA Floor Standing Polyester Enclosure 1250x1250x420mm IP54 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1250x1250x420mm IP54 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1250x1250x420mm IP54 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1250x1250x420mm IP54 IK10
PanelSeT PLA Floor Standing Polyester Enclosure 1250x1250x420mm IP54 IK10
  • MPN: NSYPLAZ12124G
  • PPN: SCH-NSYPLAZ12124G

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$3358.09/ EA

Description

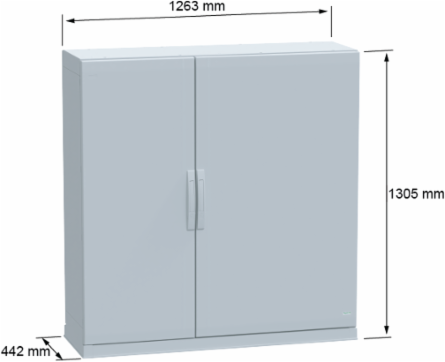

Thalassa PLA Floor standing polyester enclosure, version PLAZ. 1249 x 1250 x 420 mm. With open bottom plinth. 4 point door locking system with 5-mm double-bar locks. Polyester reinforced with fibreglass body. Protection IP 54, IK10, Grey RAL 7035.

Specifications

Assets

Cad
https://download.schneider-electric.com/files?p_Doc_Ref=NSYPLA12124G_2D-Drawing&p_File_name=PLA12124-1250x1250x420.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADUE0000785_3D-CAD&p_File_name=MCADUE0000785_2D-top.dxf

Physical Attributes

Enclosure Nominal Height
1250 mm, 1250 mm
Color
Gray RAL 7035)
Enclosure Nominal Width1250 mm, 1250 mm

Conformance Attributes

Product Certifications
Veritas
StandardsIEC 62208

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel, 1 plinth
Removable Parts
door by hinges, rear panel by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C4
110 kg CO2 eq., 110.32756573809057
Carbon Footprint Of The Manufacturing Phase A1 To A3
220 kg CO2 eq., 219.78757352515413
Medium Desc
Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 1250x1250x420mm, IP54, IK10
Local Publishable Date
2025-07-10
Return Indicator
N
Legacy Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Full Compliance Status
Compliant By Exemption
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Function Option
Standard
Body Type
sealed top and open bottom part assembled with side parts
Device Short Name
PLAZ
Electrical Insulation Class
class II
Energy Efficiency Optimized
False
Lock Type
4 points lock, handle with 5 mm double bar insert
Product Availability
Non-Stock - Not normally stocked in distribution facility
Product Or Component Type
suitable enclosure
Returnability
No
Sustainable Packaging
No
Door Type 1 Door Type
Solid
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional Unit Description
Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2
Spain, ES
Energy Model Use B6 2
Electricity Mix; Low voltage; 2018; Europe, EU-27
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door TypeSolid front, Solid
Carbon Footprint Of The Distribution Phase A4120.1120223586111, 120 kg CO2 eq.
Carbon Footprint Of The Installation Phase A520.380905674103257, 20 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeYes
Without Single Use PlasticNo
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door Opening Sideright and left 120 °)
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product NamePanelSeT PLA
RangePanelSeT
Software Versionv6.1
Total Lifecycle Carbon Footprint471 kg CO2 eq.
Pep CodeENVPEP1105005EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27

Environment Attributes Main

Take Back
Nej
China Rohs Regulation
X
Carbon Footprint
470.6080672959591
Environmental Disclosure
ENVPEP1105005EN
Ip Degree Of Protection
IP54 IEC 60529 plinth type open bottom)
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP1105005EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-35-90 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
suitable enclosure

ETIM

ETIM 8
EC000261
ETIM 9EC000261

Contractual Warranty Attributes

Warranty Period
18 months
