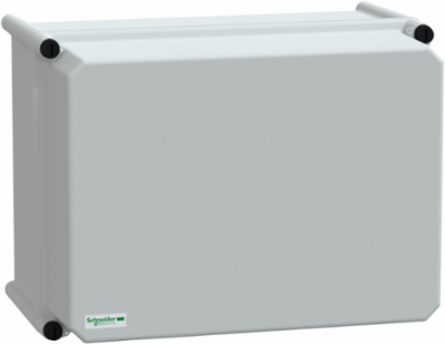

Schneider Electric NSYPLSC2736AG PLS Insulating Modular Box 27x36x23 cm, IP66, Polycarbonate Cover
Schneider Electric NSYPLSC2736AG PLS Insulating Modular Box 27x36x23 cm, IP66, Polycarbonate Cover
- MPN: NSYPLSC2736AG
- PPN: SCH-NSYPLSC2736AG
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$164.11/ EA
Description
Designed for durability and versatility, this polyester rear box with an opaque polycarbonate cover is a reliable solution for various applications. Measuring 27x36x23 cm, it is wall-mounted and boasts an impressive IP66 rating, ensuring protection against dust and water ingress. The one-piece molded body, reinforced with fiberglass, provides robust structural integrity, while the high plain cover and locking screws enhance security and ease of access. With a temperature tolerance ranging from -30 to 70 °C, this insulating modular box is suitable for a wide range of environments, making it an excellent choice for both industrial and commercial use.
Features

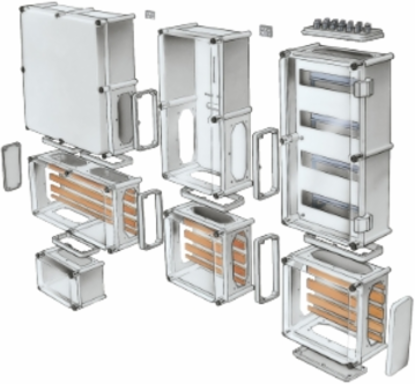

- Modular design allowing flexible configuration
- Ideal for scalable industrial installations
- Robust protection against dust, water and harsh industrial conditions
- Class II electrical insulation for safe operation
- Polycarbonate lightweight opaque cover
Specifications
Physical Attributes
- Color
- body Gray RAL 7035)

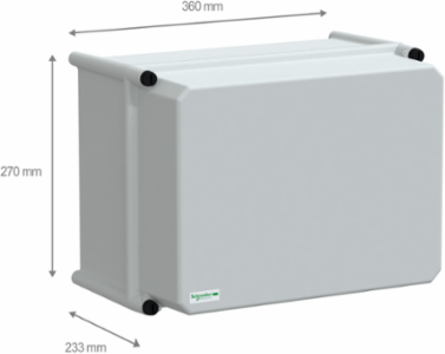

- Enclosure Nominal Width
- 360 mm
Enclosure Nominal Height270 mm
Conformance Attributes
- Standards
- NEMA 4X, NEMA classification 13, IEC 62208
Product CertificationsUL
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 cover on enclosure, 1 rear part on enclosure, locking screws
- Carbon Footprint Of The Distribution Phase A4
- 4.9474241275646085, 5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.3248284075266768, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-09
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Application
- multi-purpose
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- slot screw
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 25 kg CO2 eq.
- Medium Desc
- PLS box, polyester rear, opaque PC cover IP66 27x36x23cm
- Product Kit Identifier
- N
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Spain, ES
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
MaterialCover polycarbonate, rear polyester reinforced with fibreglass
Carbon Footprint Of The End Of Life Phase C1 To C45 kg CO2 eq., 5.356732572377095
Carbon Footprint Of The Manufacturing Phase A1 To A315 kg CO2 eq., 14.586736776154998
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Body Typeone piece moulded
Device Short NamePLS
Enclosure Mountingwall mounted
Fire Resistance960 °C IEC 62208
Package Weight Lbs2.492 kg
Product Or Component Typeinsulating modular box
Removable Partscover locking screw
Sustainable PackagingNo
Type Of Front Coverhigh plain cover
Stocking FlagY
Pep CodeENVPEP1107004EN
Pep Verification Date2024-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Product NamePanelSeT PLS
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 25.215721883623377
- Environmental Disclosure
- ENVPEP1107004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-08-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-30-70 °C
IP Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1107004EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- insulating modular box
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
