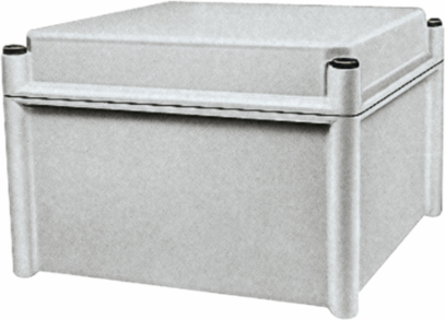

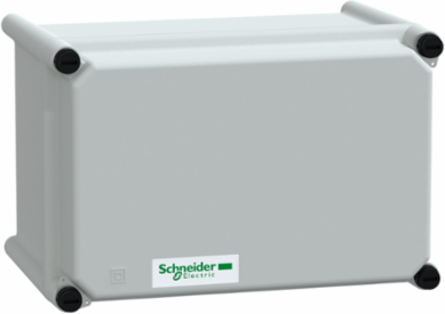

Schneider Electric NSYPLSP1827G PanelSeT PLS Enclosure IP66 180x270x180mm, Grey RAL 7035

PanelSeT PLS Enclosure IP66 180x270x180mm, Grey RAL 7035
PanelSeT PLS Enclosure IP66 180x270x180mm, Grey RAL 7035
PanelSeT PLS Enclosure IP66 180x270x180mm, Grey RAL 7035
PanelSeT PLS Enclosure IP66 180x270x180mm, Grey RAL 7035
PanelSeT PLS Enclosure IP66 180x270x180mm, Grey RAL 7035
  • MPN: NSYPLSP1827G
  • PPN: SCH-NSYPLSP1827G
  • UNSPSC: 39121324

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$119.45/ EA

Description

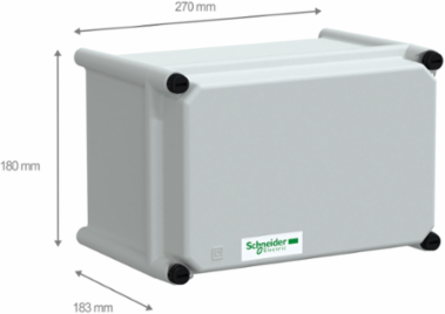

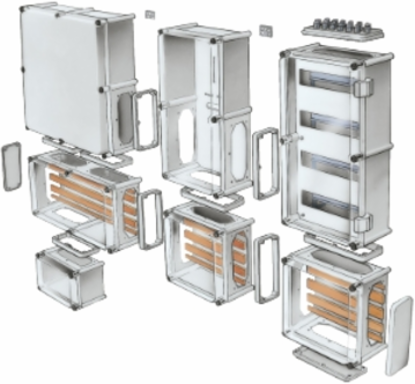

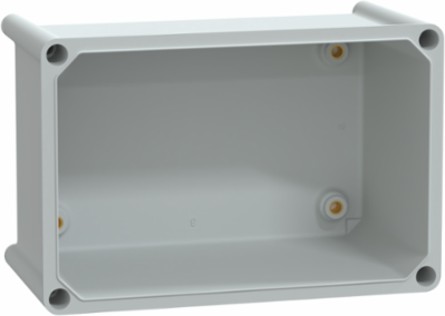

Thalassa PLS box polyester rear with opaque polyester cover. 180 x 270 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. Low plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear and cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.

Specifications

Physical Attributes

Color
body Gray RAL 7035)
Enclosure Nominal Width
270 mm
Enclosure Nominal Height180 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 cover on enclosure, 1 rear part on enclosure, locking screws
Carbon Footprint Of The Distribution Phase A4
3.200340165984811, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5
0.21012174676284232, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6
0 kg CO2 eq., 0
Local Publishable Date
2025-12-09
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
ROHS EUR Status
Compliant with Exemptions
ROHS EUR Full Compliance Status Id
PRO_ACTIVE_COMPLIANCE
Green Premium Status For Reporting
Green Premium product
Without Single Use Plastic
No
Return Indicator
N
Function Option Id
STANDARD
Device Short Name
PLS
Energy Efficiency Optimized
False
Package Weight Lbs
1.612 kg
Product Or Component Type
insulating modular box
Removable Parts
cover locking screw
Sustainable Packaging
No
Type Of Front Cover
low plain cover
Pep Code
ENVPEP1107004EN
PCR Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional Unit Unit
Unit
Product Manager
JULIA DESLCAZO
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialrear polyester reinforced with fibreglass, Cover polyester reinforced with fibreglass
Carbon Footprint Of The End Of Life Phase C1 To C43 kg CO2 eq., 3.465109513110705
Carbon Footprint Of The Manufacturing Phase A1 To A39 kg CO2 eq., 9.435722184254356
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Enclosure Mountingwall mounted
Fire Resistance960 °C IEC 62208
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
ReturnabilityNo
Total Lifecycle Carbon Footprint16 kg CO2 eq.
Relationship TypeCompatible relationship
Pep Verification Date2024-08-01
PSR VersionPSR-0005-ed3.1-EN-2023 12 08
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Product Kit IdentifierN

Environment Attributes Main

EU ROHS Directive
Compliant By Exemption?, Pro-active compliance (Product out of EU RoHS legal scope)
Take Back
No
China ROHS Regulation
X
Carbon Footprint
16.311293610112713
IP Degree Of Protection
IP66 IEC 60529
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP1107004EN
PCR Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1107004EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-08-01
PSR VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
insulating modular box

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
