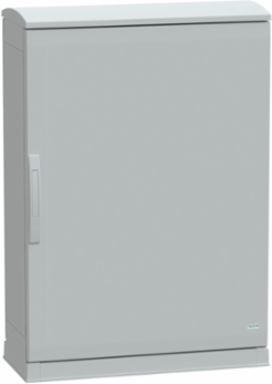

Schneider Electric NSYPLAZT1073G Floor Standing Polyester Enclosure 1000x750x320mm IP44 IK10

MPN: NSYPLAZT1073G
PPN: SCH-NSYPLAZT1073G
UNSPSC: 39121324

$1793.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

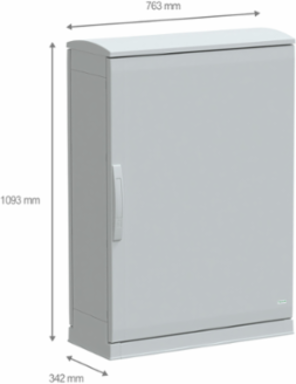

Designed for versatility and durability, this floor-standing polyester enclosure from Schneider Electric is an ideal solution for various applications. With dimensions of 1000 mm in height, 750 mm in width, and 320 mm in depth, it features a robust construction reinforced with fiberglass, ensuring high resistance to environmental factors. The enclosure boasts an IP44 rating, providing protection against solid objects larger than 1 mm and water splashes, while its IK10 rating ensures it can withstand significant impacts. The solid front door is reversible, allowing for flexible installation, and the enclosure is equipped with a secure four-point locking mechanism for enhanced security. Whether used in industrial settings or for general purpose applications, this enclosure meets stringent standards and is designed for easy accessibility from multiple sides, making it a reliable choice for protecting electrical components.

Features

Versatile floor-standing enclosure suitable for various indoor and outdoor applications.
Durable polyester reinforced with fiberglass construction for long-lasting resistance.

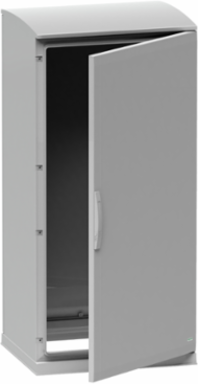

Easy access, 180° opening door with a four-point lock and double-bar insert handle.

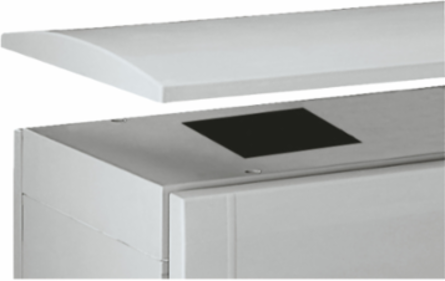

Removable rear panel, door, and canopy for convenient maintenance.
Exceptional fire resistance up to 960°C to ensure safety in hazardous environments.
Highly impact-resistant with an IK10 rating for superior protection.
Excellent protection against dust and water penetration with IP44 rating.
Class II electrical insulation to prevent electric shocks and enable completely insulated solutions.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	31300 g

Physical Attributes

Enclosure Nominal Height	1000 mm, 1000 mm
Color	Gray RAL 7035)

Enclosure Nominal Width	750 mm, 750 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 top part, 1 bottom part2 side part, 1 rear panel, 1 door, 1 canopy, 1 plinth
Removable Parts	door by hingesrear panel by fixing element, canopy by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C4	57 kg CO2 eq., 57.07855880334272
Carbon Footprint Of The Manufacturing Phase A1 To A3	114 kg CO2 eq., 113.70828184028635
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Opening Side	reversible 180 °)
Enclosure Mounting	floor-standing
Fire Resistance	960 °C IEC 62208
Material	polyester reinforced with fibreglass
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Returnability	No
Sustainable Packaging	No
Door Type 1 Door Type	Solid
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Door Type	front, Solid
Carbon Footprint Of The Distribution Phase A4	62.14059999709963, 62 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	10.544171034701355, 11 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-09-16
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Body Type	open top and bottom part assembled with side parts
Device Short Name	PLAZT
Electrical Insulation Class	class II
Energy Efficiency Optimized	False

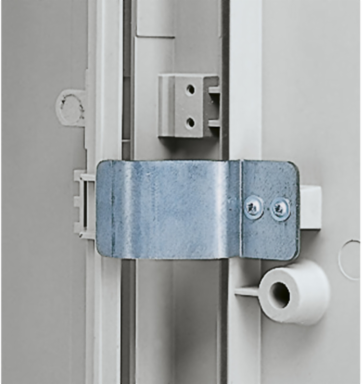

Lock Type	4 points lock, handle with 5 mm double bar insert
Number Of Doors	1
Product Name	PanelSeT PLA
Range	PanelSeT
Software Version	v6.1
Total Lifecycle Carbon Footprint	243 kg CO2 eq.
Database Version	2023-02
Certificate Agency	Veritas
Customs Code	9403704031
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	6

Environment Attributes Main

Ambient Air Temperature For Storage	-35-90 °C, -35-90 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1105005EN
Ip Degree Of Protection	IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1105005EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	243.47161167543007
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
