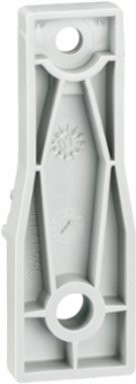

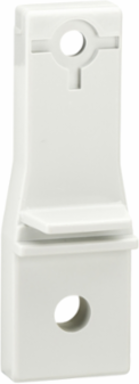

Schneider Electric NSYPFPLM32G Polyamide Wall Mounting Lugs Set of 4, 200 kg Vertical Load, 310 mm Height
- MPN: NSYPFPLM32G
- PPN: SCH-NSYPFPLM32G
CAD
$4.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

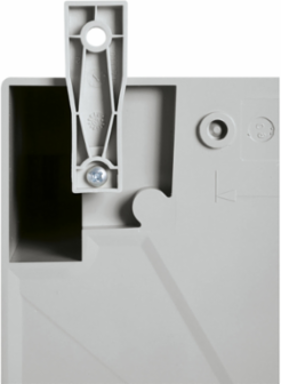

Thalassa PLM32 Set of 4 polyamide wall mounting lugs. . Multi-purpose application. Mounting on top and bottom, on rear of enclosure. Permanent permissible load is 200 kg vertical, 100 kg horizontal position. polyamide 6 with 30 % fibre glass. Grey RAL 7035.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 12.2 in
- Length
- 6.3 in
Width8.46 in
Country of OriginBrazil, Spain, France, United States
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing screws, 4 lug
- Permanent Permissible Load
- 100 kg horizontal position, 200 kg vertical position
- Local Publishable Date
- 2026-04-12
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2041
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Fixing Mode
- screwed - from the outside
- Mounting Location
- top and bottom, on rear of the enclosure
- Product Or Component Type
- wall fixing support
- Returnability
- Yes
- Accessory Separate Part Category
- fixing accessory
- Warranty In Months
- 18
- Height Nominal
- 310 mm
- Length Total
- 160 mm
- Width Nominal
- 215 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialpolyamide 6 with 30 % fibre glass
Product AvailabilityStock - Normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Silicone FreeYes
Pep CodeENVPEP1101018EN
Height Useful310 mm
Length Useful160 mm
Width Real215 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1101018EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1101018EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- wall fixing support
ETIM
- ETIM 8
- EC002625
ETIM 9EC002625
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
