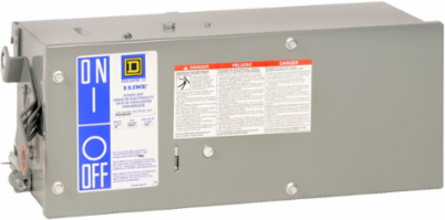

Square D PHJ36040GN Plug-in unit, I-Line Busway, H-frame, 40A, 3 phase, 4 wire, 600VAC, 25kA, ground, neutral

MPN: PHJ36040GN
PPN: SCH-PHJ36040GN
UNSPSC: 39131702

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This circuit breaker plug-in unit is 100A, 600VAC, 3 phase, 3 wire with H-frame breaker. Its circuit breaker has a 25kA interrupting trip rating. This unit includes a ground and neutral. I-Line Busway plug in units are UL listed and CSA certified.

Features

Item is no longer a stock item but is available for purchase through a configuration tool with your local distributor.
Fusible or with circuit breaker
Fusible plug in units available through 1200A
Electronic trips and communication packages available for circuit breaker plug in units
Reduced installation time with mounting hook alignment to opening

Documentation & Downloads

Specifications

Complementary Attributes

Ue Rated Operational Voltage	600 V AC 50/60 Hz, 277/480 V AC 50/60 Hz

Important Information Attributes

Persona Type Ids	LC, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL, CSA
Local Publishable Date	2025-11-19
Device Type	Busway & cable - LV busway
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1909
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Disconnector Device Type	thermal magnetic circuit breaker 40 A 25 kA 600 Vthermal magnetic circuit breaker 40 A 65 kA 480 Vthermal magnetic circuit breaker 40 A 100 kA 240 V
Fuse Type	H
Module Type	H-Frame
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	I-Line
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Busbar Description	ground
Energy Efficiency Optimized	False
Level Or Class	class 5600
Phase	3 phase
Product Or Component Type	plug-in unit
Returnability	No
Wiring Configuration	4-wire
Customs Code	8536200020

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Environmental Disclosure	ENVPEP1410002EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
