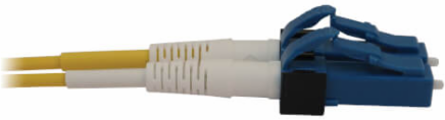

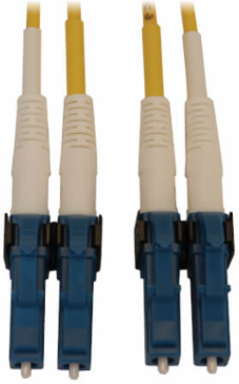

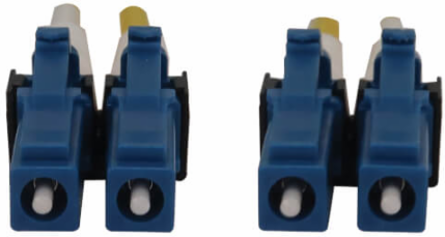

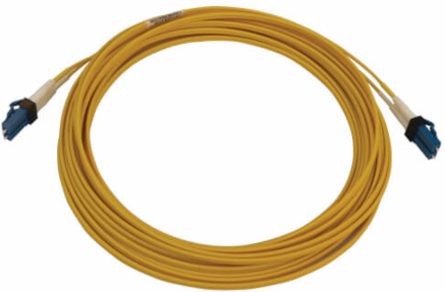

Tripp Lite N370X07M 400G Duplex Singlemode 9/125 OS2 Fiber Optic Cable, LC/UPC M/M, LSZH, Yellow, 7 m
- MPN: N370X07M
- UPC: 037332271839
- PPN: TRP-N370X-07M
CAD
$39.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Duplex Singlemode 9/125 OS2 Switchable Fiber Optic Cable (LC/UPC M/M), LSZH, Yellow, 7 m (23 ft.)
Documentation & Downloads
Specifications
Dimensions
| Cable Length | 7 m (23 ft) |
|---|---|
| Cable Outer Diameter | 2.0 +/- 0.1 mm x 4.1 +/- 0.2 mm |
| Core Diameter | 9.0 |
| Number of Fibers | 2 |
| Side B - Connector 1 | LC DUPLEX (MALE) |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
|---|---|
| Clad Diameter | 125.0 |
| Primary Coating Diameter | 600.0 |
| Side A - Connector 1 | LC DUPLEX (MALE) |
| Optical Port | LC |
Performance
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 1550NM | 0.3 dB/km |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Attenuation @ 1310NM | 0.4 dB/km |
|---|---|
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | 5% to 85% RH, Non-Condensing |
Material
| Technology | Singlemode |
|---|---|
| Switchable Polarity | Yes |
| Connector Color | Blue |
| Cable Jacket Rating | OFNR |
| Endface Polish | UPC |
|---|---|
| Cable Jacket Color | Yellow |
| Cable Jacket Material | LSZH |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
