Tripp Lite PDU3MV6L2130 8.6kW 3-Phase Metered PDU, 208/120V Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P, 6ft Cord, 0U Vertical, TAA
Tripp Lite PDU3MV6L2130 8.6kW 3-Phase Metered PDU, 208/120V Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P, 6ft Cord, 0U Vertical, TAA
- MPN: PDU3MV6L2130
- UPC: 037332163875
- PPN: TRP-PDU3MV6L2130
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1785.16/ EA
Description
8.6kW 3-Phase Metered PDU, 208/120V Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P, 6ft Cord, 0U Vertical, TAA
Features

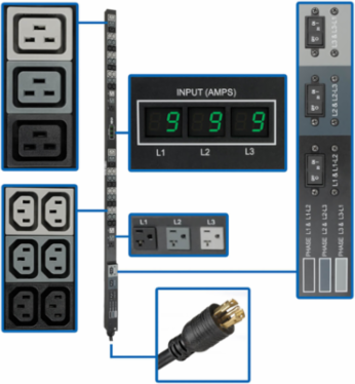

- Metered 8.6kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports input current per-phase via built in current meters

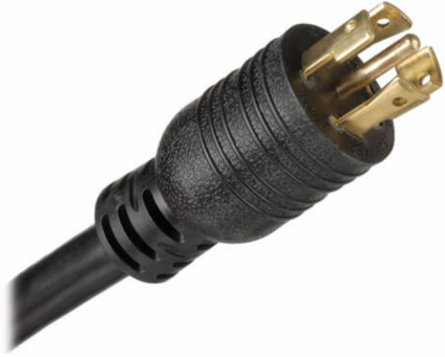

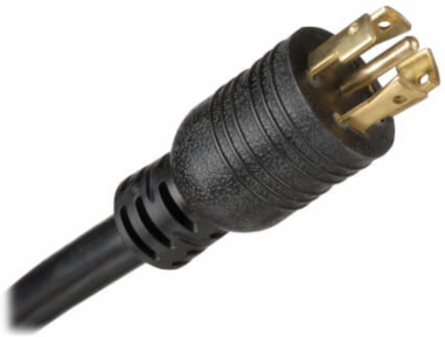

- NEMA L21-30P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 48 outlets total; 36 C13 (208V), 6 C19 (208V) & 6 NEMA 5-15/20R (120V)

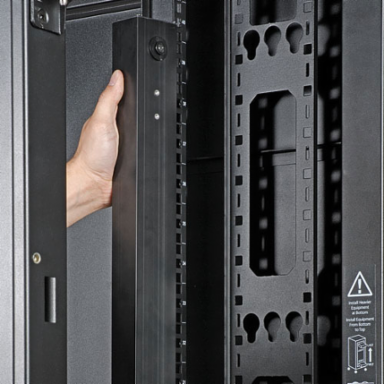

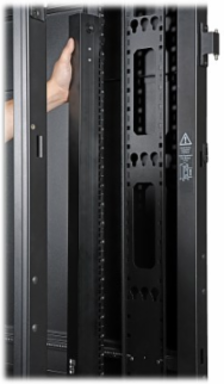

- Toolless button-mount installation; cord retention brackets included
- TAA Compliant
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1 (USA, Canada), NOM (Mexico), Class A (Emissions), ROHS Compliant, TAA Compliant
Physical
- Form Factors Supported
- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- PDU Form Factor
- Vertical (0U)
- Shipping Weight (lbs.)
- 19.50
- Unit Weight (lbs.)
- 13.90
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)6.00 x 10.00 x 77.30
Unit Dimensions (hwd / in.)70 x 2.2 x 1.71
User Interface, Alerts & Controls
- Reported Load Segments

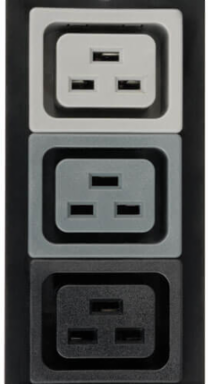

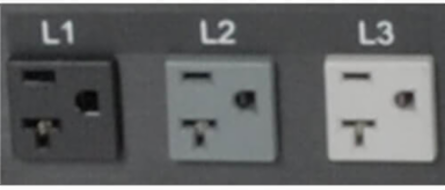

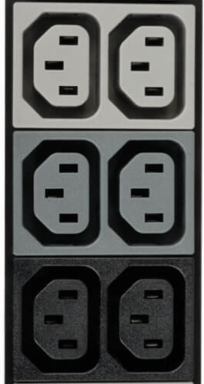

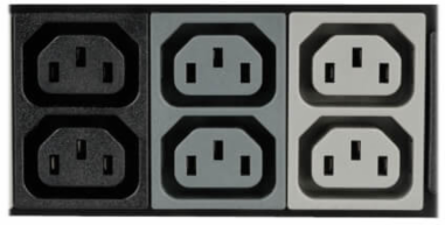

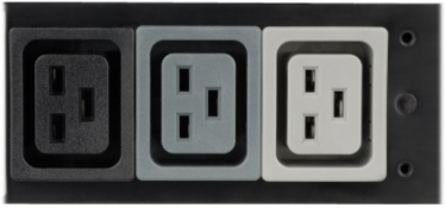

- Supports monitoring of input current per phase (13.8A balanced max per L1, L2 and L3); Outlets are color-coded and labeled for phase and load bank identification; Phase L1-L2 feeds black C13 & C19 outlets; Phase L2-L3 feeds dark-gray C13 & C19 outlets; Phase L3-L1 feeds light-gray C13 & C19 outlets; Phase L1-N feeds black 5-20R outlets; Phase L2-N feeds dark-gray 5-20R outlets; Phase L3-N feeds light-gray 5-20R outlets
- Front Panel LEDs
- n/a

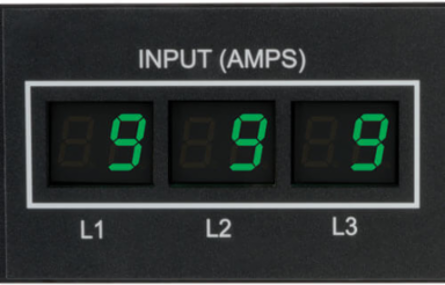

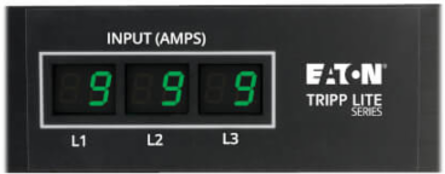

Front Panel LCD DisplaySet of 3 digital current meters report input current in amps (L1, L2, L3)
Switchesn/a
Input
- PDU Input Voltage
- 208
- Maximum Input Amps
- 24
- Input Phase
- 3-Phase
Recommended Electrical Service30A 208V with NEMA L21-30R outlet
PDU Plug TypeNEMA L21-30P
Input Cord Length (ft.)6
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Capacity Details
- 8.6kW (208V) total capacity; 13.9A (208V) max per output phase (L1-L2, L2-L3, L3-L1) / 16A (120V) max per output phase (L1, L2, L3); 12A max per C13 outlet; 16A max per 5-20R outlet
- Output Nominal Voltage
- 120; 208
Output Receptacle Details5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output
Output Receptacles(6) 5-15/20R; (36) C13; (6) C19
Overload Protection3 20A double-pole circuit breakers (1 per output phase)
Environmental
- Operating Temperature Range
- 0 to 50C (32 to 122F)
- Relative Humidity
- 5-95% non-condensing
- Operating Elevation (m)
- 0-3000
Storage Temperature Range-30°C to +60°C (-22°F to +140°F)
Operating Elevation (ft.)0-10,000
Overview
- UPC Code
- 037332163875
PDU TypeMetered
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
