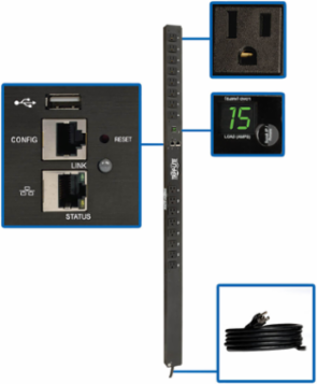

Tripp Lite PDUMNV15LX 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P Plug, 0U, TAA

1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P Plug, 0U, TAA
1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P Plug, 0U, TAA
1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P Plug, 0U, TAA
1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P Plug, 0U, TAA
1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P Plug, 0U, TAA
1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P Plug, 0U, TAA
1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P Plug, 0U, TAA
1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord with 5-15P Plug, 0U, TAA
  • MPN: PDUMNV15LX
  • UPC: 037332205322
  • PPN: TRP-PDUMNV15LX

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$923.57/ EA

Description

Cost-effective 1.4kW PDU distributes and monitors single-phase power in an IT or industrial environment. Built-in network interface helps you remotely monitor load levels to prevent overloads that cause downtime.

Features

  • 1.4kW 120V single-phase monitored PDU

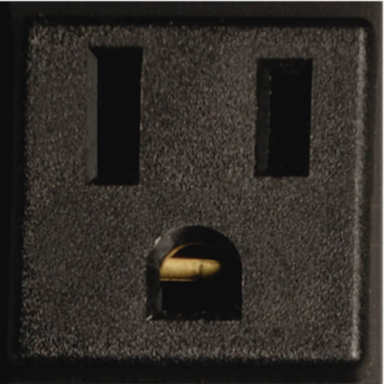

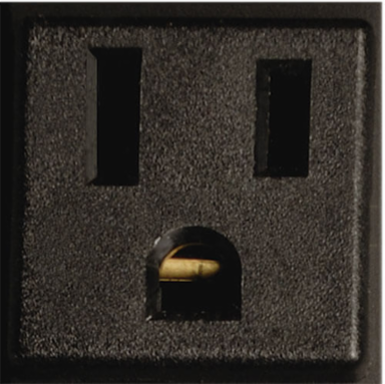

  • 16 NEMA 5-15R outlets with cord retention brackets
  • Built-in LX Platform interface for 24/7 remote access
  • Digital ammeter for on-site load monitoring in real time

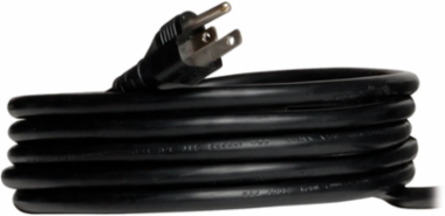

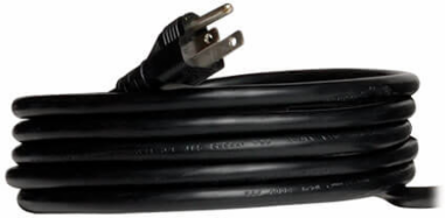

  • NEMA 5-15P input with 10 ft. AC power cord
  • 2-year limited warranty

Specifications

Certifications

Certifications
Tested to UL 60950-1: 2007 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), FCC Class A Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Physical

Form Factors Supported

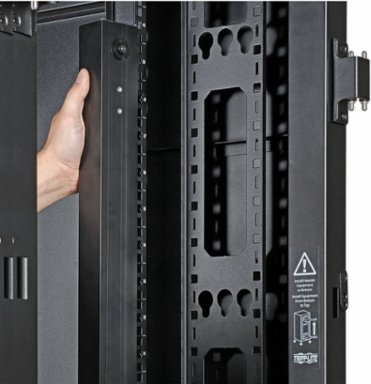

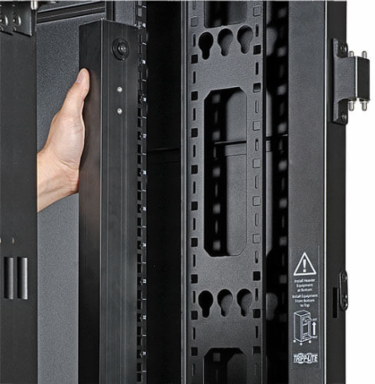

0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor
Vertical (0U)
Shipping Weight (lbs.)
9.10
Unit Weight (lbs.)
7
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)5.10 x 6.30 x 52.40
Unit Dimensions (hwd / in.)49 x 2.19 x 1.75

User Interface, Alerts & Controls

Reported Load Segments
Supports local and remote monitoring of PDU output current in amps
Front Panel LEDs
n/a

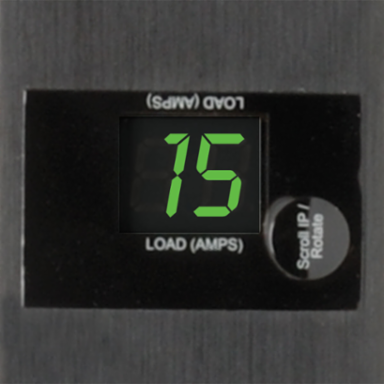

Front Panel LCD DisplayDigital meter reports PDU output current in amps and Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
SwitchesPress the SCROLL IP / ROTATE button and release after one second to display the configured IP address in 2 digit intervals; Press and release after two seconds to rotate the display 180 degrees

Input

PDU Input Voltage
100; 120; 127
Maximum Input Amps
15
Input Phase
Single-Phase
Recommended Electrical Service15A 120V
PDU Plug TypeNEMA 5-15P
Input Cord Length (ft.)10

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(16) 5-15R
Overload Protection
n/a
Output Capacity Details1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Output Nominal Voltage100; 120; 127

Communications

SNMP Compatibility

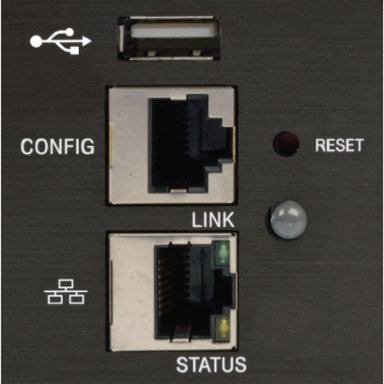

Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems

Environmental

Storage Temperature Range
-30°C to +60°C (-22°F to +140°F)
Relative Humidity5-95% non-condensing

Overview

UPC Code
037332205322
PDU TypeMonitored

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty
