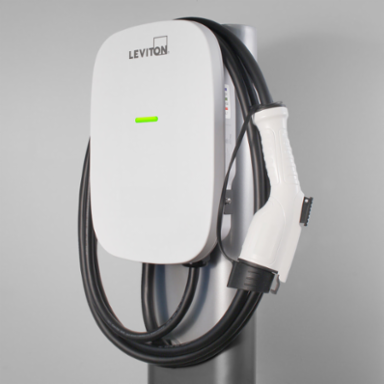

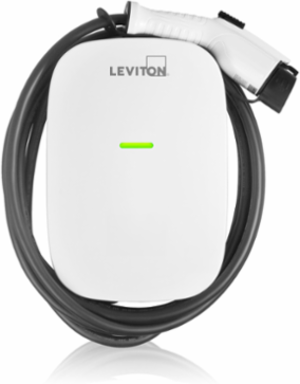

Leviton EV480 48 Amp Level 2 Electric Vehicle Charging Station, 11.6kW, NEMA Type 3R Enclosure, 18 ft Cord
Leviton EV480 48 Amp Level 2 Electric Vehicle Charging Station, 11.6kW, NEMA Type 3R Enclosure, 18 ft Cord
- MPN: EV480
- UPC: 078477997284
- PPN: LEV-EV480
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1155.61/ EA
Description

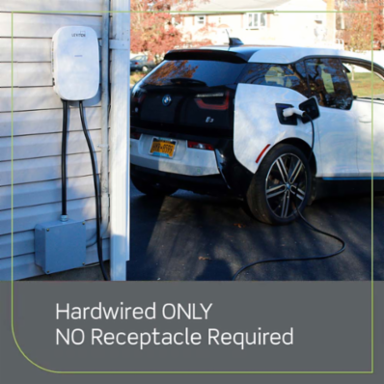

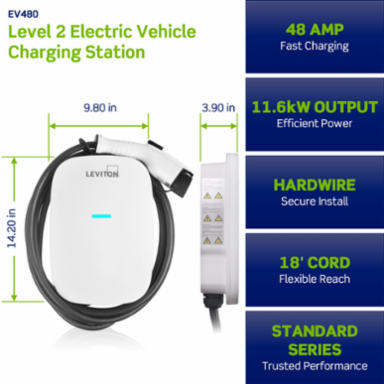

EV Series Standard Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector, 18' Cord, Includes Mounting Bracket and Pre-Attached Input Cable, HARDWIRED ONLY
Features

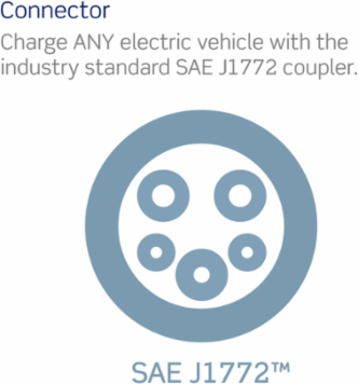

- Fast and secure charging of any SAE J1772™ compatible electric vehicle

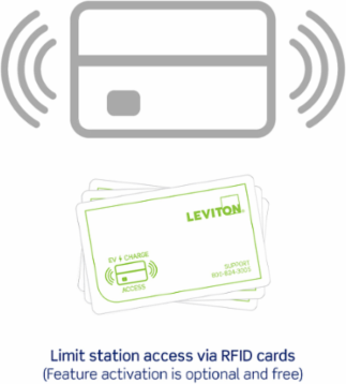

- Optional access control: station comes with RFID disabled - simply tap RFID card to activate
- Cable design prevents cord from freezing and cracking in extreme weather

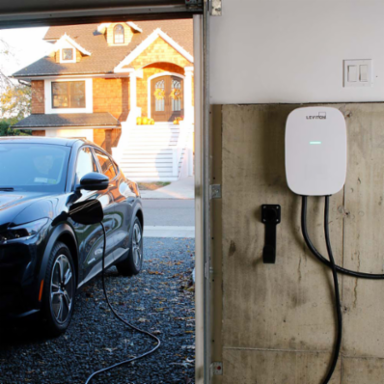

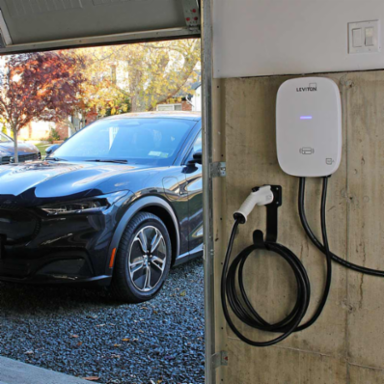

- For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R

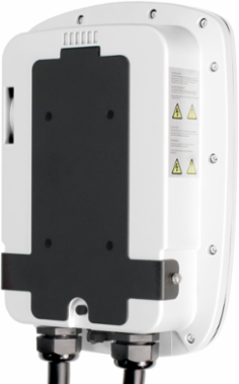

- Easy installation with pre-attached input cable and mounting hardware included
- Energy Star Certified

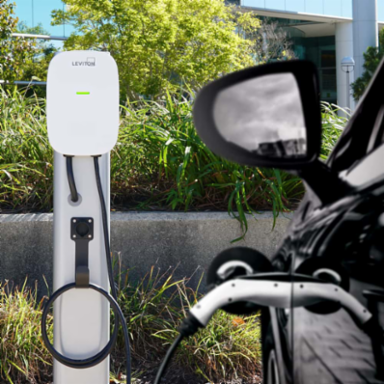

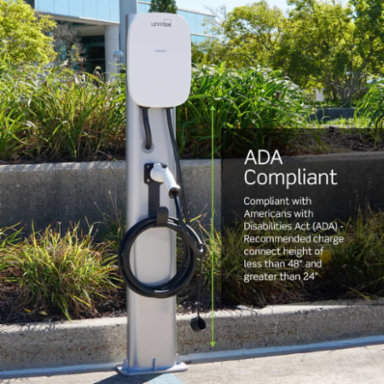

- Every pedestal works effortlessly with all EV Series Hardwired Units, making it easy to customize your charging setup for any location
Specifications
Standards and Certifications
- Standards and Certifications
- UL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant| cETLus
Material Specifications
- Enclosure Material
- Plastic (PC+PBT)

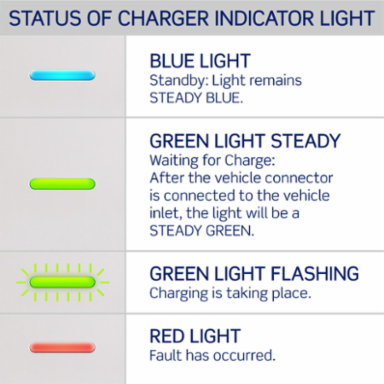

- Status Indicator
- Power Present, Charging, Fault
Enclosure RatingNEMA Type 3R
Mechanical Specifications
- Cable Length
- 18 ft. (5.5 m)
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Application
- Home|Commercial
- Device Type
- Charger
Cover Locking MechanismPhillips Head Screws, No Padlock Option
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Altitude
- Up to 6,500 ft. (2,000 m)
- Cooling
- Natural Cooling
Charging Cable Operating Temperature-30°C to +50°C
Operating Humidity< 95% Relative Humidity, Non-Condensing
Electrical Specifications
- Amperage
- 48 A
- Charge Connector Cord
- #7 AWG SAE J1772
- Operating Temperature
- -30°C to 50°C
- Short Circuit Current Rating
- 20 mA CCID per UL 2231
Breaker60 A
Number of Phase / WireL1, L2 and Ground, Bottom Feed
Output Power11.6kW
Voltage208/240 VAC
