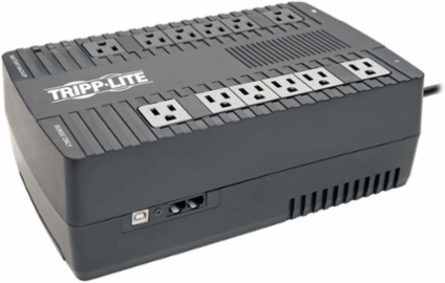

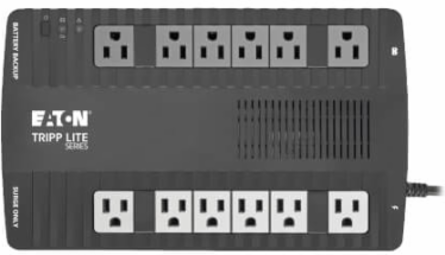

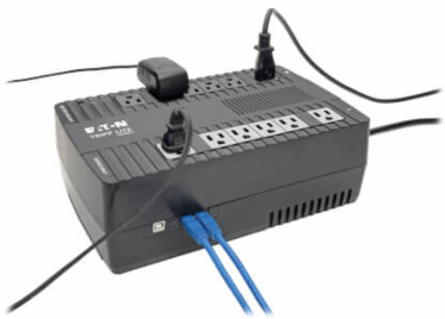

Tripp Lite AVR900U 900VA 480W Line-Interactive UPS - 12 NEMA 5-15R Outlets, AVR, 120V, 50/60 Hz, USB, Desktop/Wall Mount
Tripp Lite AVR900U 900VA 480W Line-Interactive UPS - 12 NEMA 5-15R Outlets, AVR, 120V, 50/60 Hz, USB, Desktop/Wall Mount
- MPN: AVR900U
- UPC: 037332211491
- PPN: TRP-AVR900U
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$258.30/ EA
Description
900VA 480W Line-Interactive UPS - 12 NEMA 5-15R Outlets, AVR, 120V, 50/60 Hz, USB, Desktop/Wall Mount
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown

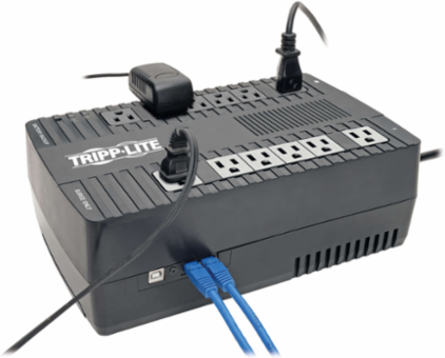

- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- High >96% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
- 900VA/480W/120V Battery Backup for PCs, Home Theater or Digital Signage
- Allows Time to Back Up Critical Files During a Blackout
- 12 NEMA 5-15R Outlets Protect Your Connected Components
- Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
- 316 Joules Fight Back Against Unexpected Power Surges
- Combats Electromagnetic Interference That Can Harm Equipment
- Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
- HID-Compliant USB Port Allows for Automatic Saves and Shutdowns

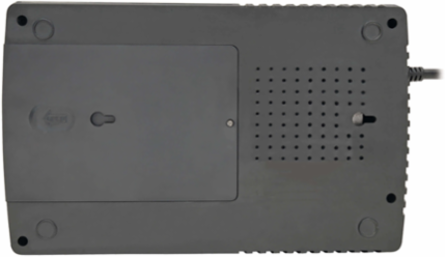

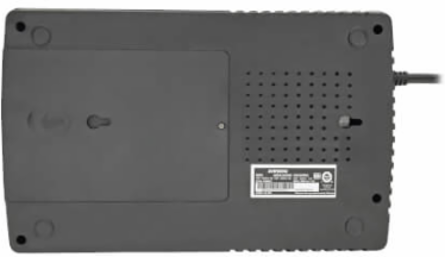

- Compact Housing Compatible with Easy Desktop or Wall-Mount Installation
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 316
- UPS Dataline Suppression
- 1 line TEL/DSL or Ethernet
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 2.7 min. (480w)
- DC System Voltage (VDC)
- 12
- Internal UPS Replacement Battery Cartridge
- RBC51
- Battery Replacement Description
- Replaceable internal batteries (see manual)
Half Load Runtime (min.)10 min. (240w)
Battery Recharge Rate (Included Batteries)8 hours (10% to 90%)
Battery AccessBattery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsUL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS A; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia)
Physical
- Installation Form Factors Supported with Included Accessories
- Tower; Ultra-compact desktop; Wallmount
- Primary UPS Depth (mm)
- 305
- Primary UPS Width (mm)
- 190
- Shipping Weight (lbs.)
- 17.38
- UPS Power Module Dimensions (hwd, in.)
- 4.14 x 7.48 x 12
- UPS Power Module Weight (lbs.)
- 16.5
Primary Form FactorDesktop
Primary UPS Height (mm)105
Shipping Dimensions (hwd / in.)10.71 x 6.30 x 15.00
UPS Housing MaterialABS
UPS Power Module Weight (kg)7.48
User Interface, Alerts & Controls
- Switches
- Power off/on switch
- LED Indicators
- 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
Audible AlarmUPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace battery conditions
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
- Undervoltage Correction
- Input voltages between 89 and 108 are boosted by 18%
Overvoltage CorrectionInput voltages between 128 and 145 are reduced by 15%
Input
- Rated input current (Maximum Load)
- 10A
- UPS Input Connection Type
- 5-15P
- UPS Input Cord Length (ft.)
- 5
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers10A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 900
- Nominal Voltage Details
- 120v nominal output in battery mode
- Output Voltage Regulation (Line Mode)
- 120V (+6%/-12%)
- UPS Output Receptacles (Surge Suppression Only)

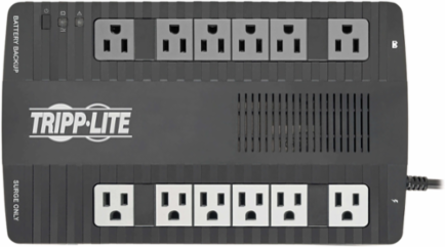

- 6 UPS outlets, 6 surge-only outlets
- Output AC Waveform (AC Mode)
- PWM sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- No
Output Watt Capacity (Watts)480
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Battery Mode)120V (±10%)
Hot-Swap PDU optionsPDUB15 (2U / 8 5-15R outlets)
Output AC Waveform (Battery Mode)PWM sine wave
Output Receptacles(12) 5-15R
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications CableUSB interface cable included

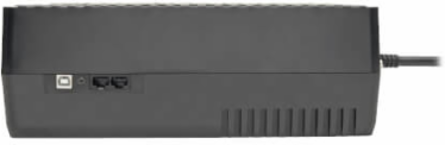

Communications InterfaceUSB (HID enabled)
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 90%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- >96%
- Operating Elevation (m)
- Up to 3000m
Storage Temperature Range+5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
AC Mode BTU / Hr. (Full Load)41
Operating Elevation (ft.)Up to 10,000 ft.
Overview
- UPC Code
- 037332211491
UPS TypeLine-Interactive
Special Features

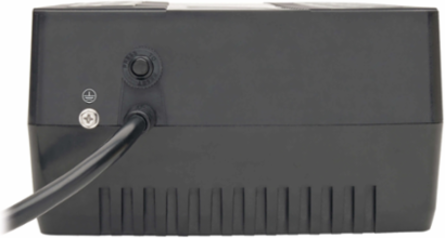

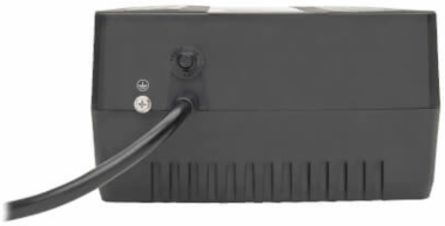

- Grounding Lug
- Includes optional side-panel grounding lug
- High Availability UPS Features
- Battery Independent Restart
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$100,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 6 milliseconds typical (10 milliseconds max)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
Low Voltage Transfer to Battery Power (Setpoint)89
