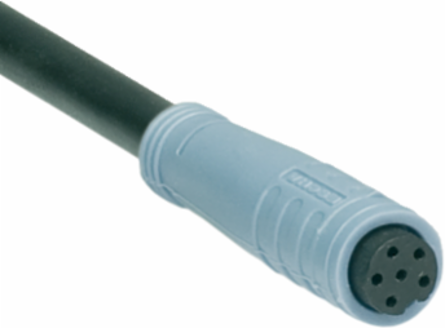

Schmersal 101206012 Magnetic Safety Sensor 6-Pole with 10 Meter Pre-Wired Cable, IP65/IP67/IP69
- MPN: 101206012
- PPN: SCM-101206012
CAD
$161.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Magnetic Safety Sensor 6-Pole with 10 Meter Pre-Wired Cable, IP65/IP67/IP69
Features
- Pre-wired cable
- 6-pole
- Latching interlocking
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 1.5 A
- Rated operating voltage
- 30 VDC
Rated operating voltage30 VAC
Operating current1,500 mA

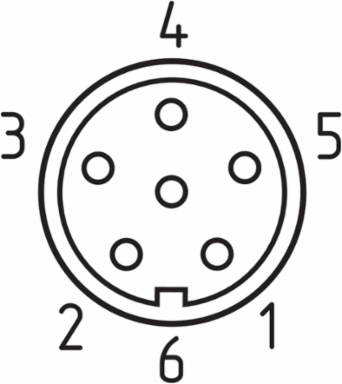

Pin assignment
- PIN 1
- green
- PIN 3
- Grey
- PIN 5
- White
PIN 2yellow
PIN 4Pink
PIN 6Brown
Mechanical data - connector side A
- Connector typ
- Female connector, M8
- Connector latching
- Latching interlocking
- Material of the handle
- Plastic, TPU
Designstraight
Material of the glandPlastic, TPU
Colour of the handleBlack
General data - Features
- Number of poles
- 6
Number of cable wires6
General data
- Gross weight
- 325 g
Ambient conditions
- Degree of protection
- IP65 | IP67 | IP69
- Ambient temperature (fixed)
- -40 ... +80 °C
Ambient temperature (Connector)-30 ... +90 °C
Ambient temperature (moved)-5 ... +80 °C
Mechanical data - Connection technique
- Length of cable
- 10 m
- Cable diameter
- 4.9 mm
- Bending radius (repeated)
- 10 x Ø-cable
- Material of the Cable mantle
- PVC
Wire cross-section0.14 mm
Bending radius (fixed)5 x Ø-cable
Colour of the Cable mantleGrey
