Schmersal 101206015 Magnetic Safety Sensor, 10 m Cable Length, IP65 | IP67 | IP69, 6-Pole

  • MPN: 101206015
  • PPN: SCM-101206015

CAD

$173.49

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Magnetic Safety Sensor, 10 m Cable Length, IP65 | IP67 | IP69, 6-Pole

Features

  • Pre-wired cable
  • 6-pole
  • Latching interlocking

Documentation & Downloads

Specifications

Electrical data

Thermal test current1.5 A
Rated operating voltage30 VDC
Rated operating voltage30 VAC
Operating current1,500 mA

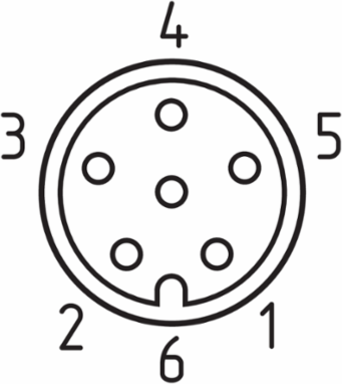

Pin assignment

PIN 1green
PIN 3Grey
PIN 5White
PIN 2yellow
PIN 4Pink
PIN 6Brown

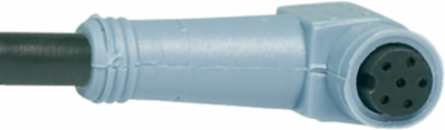

Mechanical data - connector side A

Connector typFemale connector, M8
Connector latchingLatching interlocking
Material of the handlePlastic, TPU
Designangled
Material of the glandPlastic, TPU
Colour of the handleBlack

General data - Features

Number of poles6
Number of cable wires6

General data

Gross weight325 g

Ambient conditions

Degree of protectionIP65 | IP67 | IP69
Ambient temperature (fixed)-40 ... +80 °C
Ambient temperature (Connector)-30 ... +90 °C
Ambient temperature (moved)-5 ... +80 °C

Mechanical data - Connection technique

Length of cable10 m
Cable diameter4.9 mm
Bending radius (repeated)10 x Ø-cable
Material of the Cable mantlePVC
Wire cross-section0.14 mm
Bending radius (fixed)5 x Ø-cable
Colour of the Cable mantleGrey
