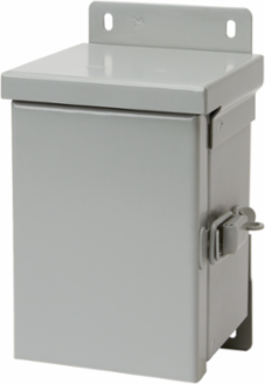

nVent Hoffman A12R126HCR Hinge-Cover Drip-Shield Enclosure Type 3R 12x12x6 Inch Gray Steel
- MPN: A12R126HCR
- UPC: 783510387600
- PPN: HOF-A12R126HCR
- UNSPSC: 39121324
CAD
$231.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Small Drip-Shield Hinged-Cvr Type 3R protects wiring and electrical components in outdoor applications. This Hinge-Cover Small Drip-Shield Type 3R, A12R126HCR item measures 12.00x12.00x6.00 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Plated steel hinge has stainless steel pin
- Weldnuts provided for mounting optional panels
- Provisions for padlocking on zinc-plated draw-pull catch
- Knockouts on bottom of enclosure
- No gasketing
Documentation & Downloads
Specifications
Additional
| Protection Rating | NEMA 3R |
|---|---|
| Size | 12 x 12 x 6 in |
| Height (H) | 12 in |
| Material | Steel |
| Thickness (Gauge) | 16 gauge (1.52 mm) |
| Knockout Pattern | C-D-E-F-G, bottom knockouts |
| Weight | 13 lbs |
| Padlock Provision | Zinc-plated draw-pull catch |
| IP Rating | IP32 |
|---|---|
| Width (W) | 12 in |
| Depth (D) | 6 in |
| Finish | ANSI 61 gray polyester powder paint |
| Color | Gray (ANSI 61) |
| Mounting | Weldnuts for optional panels, 330 mm (G) |
| Hinge | Plated steel with stainless steel pin |
| Seal Type | No gasketing |
