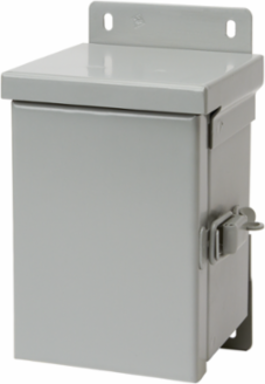

nVent Hoffman A6R44HCR Small Drip-Shield Enclosure Type 3R, 6.00x4.00x4.00 Inch, Gray Steel
- MPN: A6R44HCR
- UPC: 783510134020
- PPN: HOF-A6R44HCR
- UNSPSC: 39121324
CAD
$97.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Small Drip-Shield Hinged-Cvr Type 3R protects wiring and electrical components in outdoor applications. This Hinge-Cover Small Drip-Shield Type 3R, A6R44HCR item measures 6.00x4.00x4.00 inches with a material of Steel colored Gray.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Plated steel hinge has stainless steel pin
- Weldnuts provided for mounting optional panels
- Provisions for padlocking on zinc-plated draw-pull catch
- Knockouts on bottom of enclosure
- No gasketing
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 102 |
| Protection Rating | NEMA Type 3R |
| Color | Gray |
| Thickness (T) | 1.52 |
| Mounting (G) | 178 |
| IP Rating | IP32 |
| Material | Steel |
| NEMA Rating | 3R Weather-resistant, except dust |
| Height (H) | 152 |
|---|---|
| Depth (D) | 102 |
| Finish | Powder Coated |
| Color Code | ANSI 61 |
| Overall Dimensions (L x W) | 203 x 122 |
| Knockout Pattern | B-C-D |
| Weight | 3.6 |
| Size | 6.00x4.00x4.00 in |
