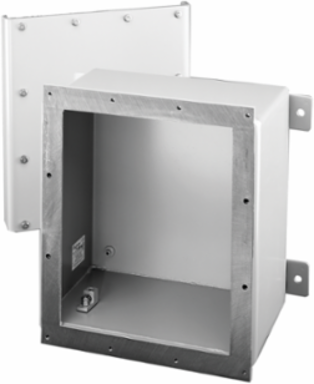

nVent Hoffman A16D128 NEMA Type 9, 16.00x12.00x8.00, Gray, Steel
- MPN: A16D128
- UPC: 783510321604
- PPN: HOF-A16D128
- UNSPSC: 39121324
CAD
$4028.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Uniquely designed enclosure for use in Class II Division 1 and 2 locations, per NEC 500. This NEMA Type 9, A16D128 item measures 16.00x12.00x8.00 inches with a material of Steel colored Gray.
Features
- Ends are .38-in. (10-mm) steel plate to provide a minimum of 3.50 full threads for conduit sizes through 2.00 in. (51 mm)
- Covers are .25-in. (6-mm) thick to allow mounting of NEMA 9 pushbuttons and pilot lights, which require threaded holes (3/4-14 NPSM thread)
- "Heavy duty cover hinges on enclosures when ""A"" is 20.00 in. (508 mm) or more"
- Fiber gasket, mechanically attached to cover, assures dust-tight enclosure
- Weldnuts or collar studs provided for mounting optional panel
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 305
- Protection Rating
- NEMA Type 9
- Color Code
- ANSI 61
- Door Thickness
- 6.4
- Mounting (G x H)
- 349 x 346
- Weight
- 74.1
- Size
- 16.00x12.00x8.00 in
- NEMA Rating
- 9 Class II Hazardous location certified
Height (H)406
Depth (D)203
FinishPowder Coated
Body Thickness4.8
Overall Dimensions (L x W)470 x 378
Mounting Hole Quanity4
MaterialSteel
ColorGray
